HDS-21R / 41R
The World's Best 2x1 / 4x1 HDMI Switch
Owner's Manual
TM
PureLink
535 East Crescent Avenue
Ramsey, NJ 07446
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com
Advertisement
Table of Contents
Related Manuals for PureLink HDS-21R
Summary of Contents for PureLink HDS-21R
- Page 1 HDS-21R / 41R The World’s Best 2x1 / 4x1 HDMI Switch Owner’s Manual PureLink 535 East Crescent Avenue Ramsey, NJ 07446 Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com www.purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at...

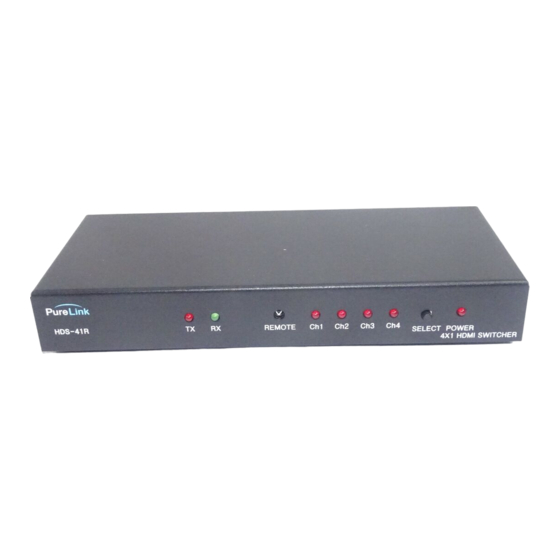

- Page 2 Remote Control Unit x1 User Manual x1 Description: PureLink’s HDS-21/41R HDMI Switch allows number of digital video sources (with audio) to share one video display (with audio). Our unique switch allows easy switching between different digital video sources (with audio) with remote control unit and/or with a manual toggle button in front and/or via RS232 port.
-
Page 3: Environmental And Reliability Specifications
Environmental and Reliability Specifications 1. Operating Conditions Temperature: 10℃~ 40℃ Humidity: 10% ~ 80%, non-condensing 2. Transportation Conditions Temperature: -25℃~ 60℃ Humidity: 5% ~ 95%, non-condensing Altitude: maximum 15,000m 3. Storage Conditions Temperature: -20℃~ 45℃ Humidity: 5% ~ 95%, non-condensing Altitude: maximum 3,000m 4. -
Page 4: Main Features
High Quality Picture - No Signal Loss and Digital Noise Free HDS-21R is built to deliver the highest quality picture preserving the native resolutions of the video sources (with audio) without any signal loss. At the same time, the digital noises that may affect the picture quality will be eliminated. -
Page 5: Rs232 Control Connection
RS232 CONTROL CONNECTION RS232 connection allows the user to interface the PureLink switch with a serial port on a computer or other control device. The computer or other control device may require additional software for various control functions. (Control software not included) * Please refer to RS232 connection diagram before installation. -
Page 6: Rs232 Connection Diagram
RS232 Connection Diagram... -
Page 7: Mechanical Specification
Mechanical Specification Dimensions: L 9 x W 4.1 x H 1.2 inches DC 5V: DC Power 5V Input RS-232: Com Port for Switch Function Control HDMI IN CH1 & 2: HDMI Inputs *HDMI IN CH1,2,3,4: HDMI Inputs for HDS-41R* HDMI OUT : HDMI Output LED CH1~2 : Selected Channel Indication... -
Page 8: Connector Pin Assignments
Connector Pin Assignments HDMI port Pin No. Description Remarks TMDS DATA 2P TMDS DATA 2 Shield TMDS DATA 2M TMDS DATA 1P TMDS DATA 1 Shield TMDS DATA 1M TMDS DATA 0P TMDS DATA 0 Shield TMDS DATA 0M HDMI 19pin TMDS Clock P TMDS Clock Shield TMDS Clock M... -
Page 9: Warranty Information
This warranty has no relationship to and exists independently of any warranty offered by Dealer. PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or... -
Page 10: Troubleshooting
Troubleshooting Problem Solution Switch will not operate Make sure the 5V power is plugged in the back of the unit. Check to see if the power LED light is on. No picture(or signal) 1. In case your video source is HDCP enabled, make sure your video or Poor picture display (HDTV) is HDCP compliant.
