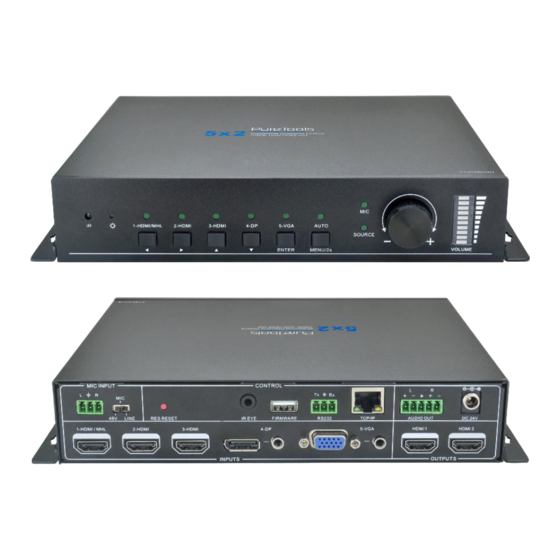

PureLink PureTools PT-PSW-52H User Manual

Scaler switcher multiformat seamless scaling, 1080p, dual hdmi out
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

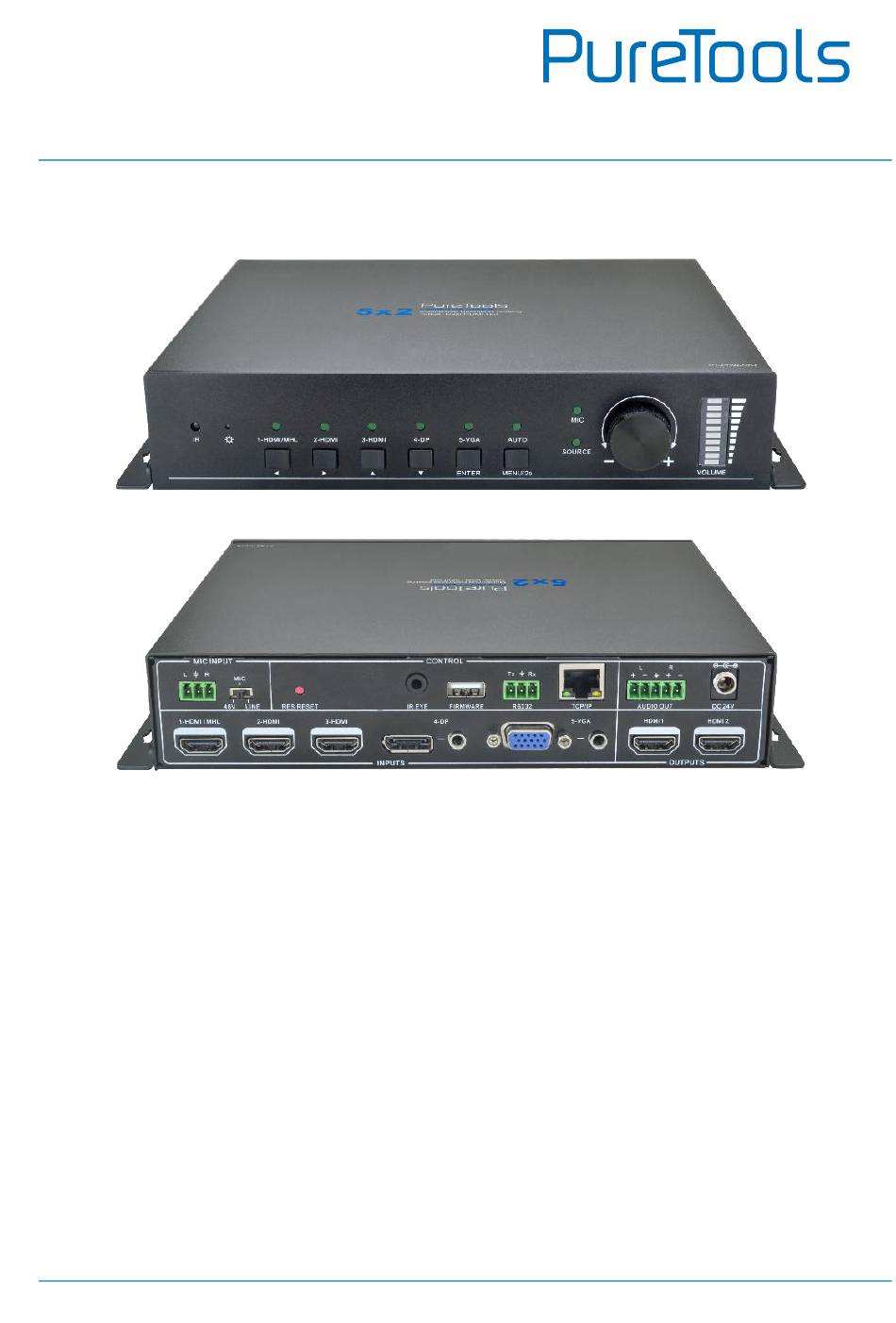

User Manual
PT-PSW-52H
User Manual
Scaler Switcher Multiformat Seamless Scaling, 1080p, Dual HDMI Out
Model PT-PSW-52H
Designed in Germany
© 2017 PureLink GmbH All rights reserved.
VersionV1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PureTools PT-PSW-52H and is the answer not in the manual?

Questions and answers

Related Manuals for PureLink PureTools PT-PSW-52H

Summary of Contents for PureLink PureTools PT-PSW-52H

  • Page 1 User Manual PT-PSW-52H User Manual Scaler Switcher Multiformat Seamless Scaling, 1080p, Dual HDMI Out Model PT-PSW-52H Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.1...
  • Page 2 User Manual PT-PSW-52H Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. In the constant effort to improve our product, we reserve the right to make changes in functions or parameters without prior notice or obligation.
  • Page 3 PT-PSW-52H REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSW-52H complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSW-52H complies with Directives 2014/30/EU and 2014/35/EU.
  • Page 4 User Manual PT-PSW-52H SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment ...

  • Page 5: Table Of Contents

    User Manual PT-PSW-52H Contents 1. Introduction ..........................1 1.1 Introduction to PT-PSW-52H ..................1 1.2 Feature ..........................1 1.3 Package List ........................2 2. Panel Description ........................3 2.1 Front Panel ......................... 3 2.2 Rear Panel .......................... 4 3. System Connection ........................6 3.1 Usage Precaution ......................
  • Page 6 User Manual PT-PSW-52H 4.4.2 PICTURE ........................ 30 4.4.3 SETUP ........................31 4.5 GUI Control........................32 4.5.1 Control Menu ...................... 33 4.5.2 Configuration Menu ..................34 4.5.3 RS232 Control Menu ..................37 4.5.4 Password Menu ....................38 4.5.5 GUI Update ......................39 5.

  • Page 7: Introduction

    User Manual PT-PSW-52H 1. Introduction 1.1 Introduction to PT-PSW-52H The PT-PSW-52H (hereinafter referred to as “Scaler Switcher“) is a compact mini scaler switcher with 5 video inputs (1 HDMI/MHL, 2 HDMI, 1 DP, and 1 VGA) and 3 audio inputs (1 DP external audio, 1 VGA auxiliary audio, 1 MIC audio). The VGA input supports VGA, YPbPr and C-video, so the device switcher is compliant with multiple video signals.

  • Page 8: Package List

    User Manual PT-PSW-52H 1.3 Package List  1 x PT-PSW-52H Compact Scaler Switcher  2 x Mounting Ears with 4 Screws  4 x Plastic Cushions  1 x Power Adapter (24VDC,2.71A)  1 x IR Receiver (with carrier wave) ...

  • Page 9: Panel Description

    User Manual PT-PSW-52H 2. Panel Description 2.1 Front Panel 1-HDMI/MHL 2-HDMI 3-HDMI 4-DP 5-VGA AUTO SOURCE ENTER MENU/2s VOLUME ① Built-in IR Receiver ② Power indicator  Off when there is no power to the device  Red when the device is in standby mode ...

  • Page 10: Rear Panel

    User Manual PT-PSW-52H 2.2 Rear Panel CONTROL MIC INPUT LINE RES RESET IR EYE FIRMWARE RS232 AUDIO OUT DC 24V 1-HDMI / MHL 2-HDMI 3-HDMI 4-DP 5-VGA HDMI 1 HDMI 2 INPUTS OUTPUTS ① INPUTS  Video input ports: 1 HDMI/MHL input, 2 HDMI inputs, 1 DP and 1 VGA ...
  • Page 11 User Manual PT-PSW-52H ⑤ AUDIO OUTPUT  Audio output port, the audio comes from the input audio corresponding to the selected video source and is mixed with MIC audio. ⑥ DC 24V  Power port, connect with DC 24V power adapter. Note: Pictures shown in this manual are for reference only, different model and specifications are subject to real product.

  • Page 12: System Connection

    User Manual PT-PSW-52H 3. System Connection 3.1 Usage Precaution  System should be installed in a clean environment, preferably at ambient temperature or within given working temperature range (see page40 for limits).  All of the power switches, plugs, sockets and power cords should be insulated. ...

  • Page 13: Connection Procedure

    User Manual PT-PSW-52H 3.3 Connection Procedure Step1. Connect HDMI source devices (e.g. Blue-ray DVD) to 1~3 HDMI input ports with HDMI cable Step2. Connect a DisplayPort source device (e.g. MAC MINI) to DP input port with DisplayPort cable and DP audio input port with audio cable. Step3.

  • Page 14: Microphone Connection

    User Manual PT-PSW-52H 3.4 Microphone Connection The PT-PSW-52H provides with one 3-level microphone input port, to accommodate different microphone input modes, including 48V phantom power mode, MIC mode & LINE mode.  48V phantom power Mode 48V phantom power input has a good frequency characteristic, high input impedance and high sensitivity.
  • Page 15 User Manual PT-PSW-52H 2) Balanced connection: “+” connects to positive, “-” connects to negative and “ ” connects to ground.  LINE Mode LINE input has a low frequency characteristics, and wide frequency response. When switch to “LINE”, the microphone input is used for connecting with line audio or wireless microphone output.

  • Page 16: Application

    User Manual PT-PSW-52H 2) Balanced connection: “+” connects to positive, “-” connects to negative and “ ” connects to ground. 3.5 Application The PT-PSW-52H has a good application in various occasions, such as computer realm, monitoring, conference room, big screen displaying, television education, command &...

  • Page 17: System Operation

    User Manual PT-PSW-52H 4. System Operation 4.1 Button Control Front panel buttons can be used for switching operations and volume adjusting. Manual Switching 4.1.1 Press 1-HDMI/MHL, 2-HDMI, 3-HDMI, 4-DP, 5-VGA on front panel to select the corresponding input source. Auto Switching 4.1.2 Press AUTO to enter in auto-switching mode.

  • Page 18: Volume Adjustment

    User Manual PT-PSW-52H  Signal removing Once removing the current display signal, the PT-PSW-52H will detect all input signals with priority from 1-HDMI/MHL to 5-VGA. It will transfer the signal firstly detected to be available to output devices. Note:  When the DP signal is switched as input, the DP source device may not read the EDID data from display device, at this point re-plug the DP source device to solve this phenomenon.

  • Page 19: Ir Control

    User Manual PT-PSW-52H 4.2 IR Control IR Remote 4.2.1 Connect IR receiver to IR EYE port, the PT-PSW-52H cans be controlled by using IR remote. As CEC function, it is able to use the IR remote to turn on/off the HDMI source or Display.

  • Page 20: Cec Function

    User Manual PT-PSW-52H CEC Function 4.2.2 The Scaler Switcher supports CEC, it can be turned on/ off by sending RS232 commands or OSD menu operations. The default setting is ON. Commands pertaining to CEC: “50686%” (enable CEC) and “50687%” (disable CEC) HDMI INPUT ports 1~3 support CEC, if the connected source devices also support CEC and their CEC are on, users can control the source device and display via the IR remote of the Scaler Switcher.
  • Page 21 User Manual PT-PSW-52H MIC INPUT CONTROL LINE RES RESET IR EYE FIRMWARE RS232 AUDIO OUT DC 24V 1-HDMI / MHL 2-HDMI 3-HDMI 4-DP 5-VGA HDMI 1 HDMI 2 INPUTS OUTPUT HDTV DVD(Signal Source) DVD(Signal Source) DVD(Signal Source)

  • Page 22: Rs232 Control

    User Manual PT-PSW-52H 4.3 RS232 Control The Scaler Switcher can be controlled by sending RS232 commands. The baud rate of RS232 port support 2400, 4800, 9600(default), 19200, 38400, 57600 or 115200. RS232 Control Software 4.3.1  Installation Copy the control software file to the computer connected with the PT-PSW-52H.
  • Page 23 User Manual PT-PSW-52H The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.

  • Page 24: Rs232 Command

    User Manual PT-PSW-52H RS232 Command 4.3.2 Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Switch Commands Command Function Feedback Example 50701% Switch to 1-HDMI/MHL input Switch to HDMI 1 50702% Switch to 2-HDMI input Switch to HDMI 2 50703% Switch to 3-HDMI input...
  • Page 25 User Manual PT-PSW-52H Audio Commands Command Function Feedback Example 50600% MUTE Source audio Source Mute 50601% UnMute Source audio Source Unmute 50602% Increase the volume of source audio Source Volume: xx (xx=00~60) 50603% Decrease the volume of source audio Source Volume: xx (xx=00~60) 50722% Mute MIC audio MIC Mute...
  • Page 26 User Manual PT-PSW-52H Resolution Commands Command Command Command Set the output resolution to 50619% Resolution: 1360x768 1360X768 HD Set the output resolution to 50626% Resolution: 1024x768 1024X768 XGA Set the output resolution to 50627% Resolution: 1280x720 1280X720 720P Set the output resolution to 50628% Resolution: 1280x800 1280X800 WXGA...
  • Page 27 User Manual PT-PSW-52H Setup Commands Command Command Command Aspect Ratio: xx (xx= 16:9/ 4:3/ 50608% Set the aspect ratio auto) Picture Mode: xx (xx= dynamic/ 50614% Set the picture mode standard/ mild/ user) 50655% Freeze output image Freeze: enable 50656% Cancel the freezing of output image Freeze: disable 50646%...
  • Page 28 User Manual PT-PSW-52H Setup Commands Command Command Command 50689% Disable MIC noise detecting MIC detect: disable 50690% Check MIC noise detecting status MIC detect: XXXX 50767% Restore default EDID EDID: initial Bypass EDID data from output to 50768% EDID: bypass input Upload custom EDID data to the 50769%...
  • Page 29 User Manual PT-PSW-52H Setup Commands Command Command Command Auto Switch Mode: Set no input to power off time: 1 minutes 50719% Check the automatic power off time Manual Switch Mode: Set no input to power off function: Disable Manual Switch Mode: Set no Manual Switch Mode: Disable 50740% input to power off time: 0...
  • Page 30 User Manual PT-PSW-52H Menu Commands Command Command Command 50609% OK for OSD selection Key: ok 50610% LEFT button Key: left 50611% RIGHT button Key: right 50612% UP button Key: up 50613% DOWN button Key: down 50616% MENU button (enter OSD) OSD: Enter 50618% EXIT button (exit OSD)
  • Page 31 User Manual PT-PSW-52H Inquire Commands Command Command Command 50639% Check sharpness Sharpness: xx (xx=00~99) Color Temperature: xx 50640% Check the color temperature (xx= Cool/ Medium/ Warm/ User.) 50651% Check Volume Icon display status Volume Icon: xxxx 50712% Check the audio input sources for DP DP Audio from Embedded Check whether the Source audio is 50751%...
  • Page 32 User Manual PT-PSW-52H Adjustment Commands Command Command Command 50678% Enable screen output adjusting Enter Output Position Adjust 50679% Disable screen output adjusting Exit Output Position Adjust 50670% Move the image to left Output Position Adjust X xx 50671% Move the image to right Output Position Adjust X xx 50672% Move the image up...
  • Page 33 User Manual PT-PSW-52H CEC Commands Command Command Command 50687% Disable CEC HDMI CEC OFF 50686% Enable CEC HDMI CEC ON 50901% Play&pause CEC cmd: play&pause 50902% Stop CEC cmd: stop 50903% Menu CEC cmd: menu 50904% Retreat CEC cmd: rev 50905% Forward CEC cmd: fwd...

  • Page 34: Osd Menu Control

    User Manual PT-PSW-52H 4.4 OSD Menu Control The Scaler Switcher provides a powerful OSD operation menu, contains 3 parts: optional settings, image settings, and system setting etc. There are two ways to enter OSD menu:  Long-press the button MENU/2s on front panel 2 seconds or more. ...

  • Page 35: Options

    User Manual PT-PSW-52H OPTIONS 4.4.1 Includes Output Adjust, Input 5 Select, Baud rate, User EDID Load (USB), Resolution, and Software Update (USB).  Output Adjust: Adjust output image position (X: horizontal direction and Y: vertical direction), ratio aspect (width and height), polarity adjustment (H Polarity and V Polarity) and output setting (HDMI on/off).

  • Page 36: Picture

    User Manual PT-PSW-52H  Pw Off Time (Manual): Set the power off time when no signal input (1, 2, 5 or 10 minutes can be chosen).  IP: Show the IP address.  Software Update (USB): Insert the USB flash disk with updating file to USB port of the PT-PSW-52H, to update the software through this menu.

  • Page 37: Setup

    User Manual PT-PSW-52H  Noise Reduction (not for VGA format): Includes Off, Low, Middle, High and Default.  Screen: (not for HDMI source): Include Auto Adjust, Horizontal, Vertical, Size, and Phase. SETUP 4.4.3 Including OSD Language, Restore Factory Default, Blending, HDMI CEC, OSD Duration and version inquiry ...

  • Page 38: Gui Control

    User Manual PT-PSW-52H 4.5 GUI Control In addition to control the PT-PSW-52H via front panel button, IR remote and RS232 communication software. The PT-PSW-52H can be controlled via GUI. It allows users to interact with the PT-PSW-52H through graphical icons and visual indicators. Type 192.168.0.178 in your browser, it will enter the log-in interface shown as below:...

  • Page 39: Control Menu

    User Manual PT-PSW-52H Control Menu 4.5.1 Type user name: user and password: user (default setting) on the log-in interface, and then click Login to enter Control menu shown as below:  Sources: Click the corresponding button (1-HDMI/MHL, 2-HDMI, 3-HDMI, 4-DP, and 5-VGA) to select video input source.

  • Page 40: Configuration Menu

    User Manual PT-PSW-52H Configuration Menu 4.5.2 Click on control menu to enter setting menu shown as below: ①  Output Resolution: Select the output resolution that you need and then click Confirm.  Update: Insert the USB flash disk with EDID file/software updating file to FIRMWARE port, and then click EDID/Firmware to start update procedure.
  • Page 41 User Manual PT-PSW-52H Click Network to enter network setting menu shown as below: ② In this interface, dynamic or static IP mode can be selected. Under static IP mode, IP address and subnet mask, gateway can be set and make sure the IP addresses are different to avoid IP conflict.
  • Page 42 User Manual PT-PSW-52H Click Source Label to enter source label setting menu shown as below: ③ In this interface, the name of source input selection button can be modified as you need.

  • Page 43: Rs232 Control Menu

    User Manual PT-PSW-52H RS232 Control Menu 4.5.3 Click RS232 Control on the top of interface to enter RS232 control menu shown as below:  Baud Rate: 9600.  Command: Typing commands in this box to control the Scaler Switcher. If checked the “Hex”, you can enter hexadecimal value in the “Command”...

  • Page 44: Password Menu

    User Manual PT-PSW-52H Password Menu 4.5.4 Click Password on the top of interface to enter password menu shown as below: In this interface, the user name and password can be modified as you need.

  • Page 45: Gui Update

    User Manual PT-PSW-52H GUI Update 4.5.5 GUI for the PT-PSW-52H supports online update in http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface. After that, click Administration at the source menu to get to Upload Program as shown below: Select the desired update file and press Apply, it will start upgrading then.

  • Page 46: Specification

    User Manual PT-PSW-52H 5. Specification Video Video input (1) HDMI/MHL; (2) HDMI; (1) DP; (1) VGA (3) female HDMI; (1) DisplayPort; Video Input Connector (1) female 15-pin VGA Input Video Signal HDMI, DP, YPbPr, C-video, VGA Video Output (2) HDMI Video Output Connector (2) female HDMI Output Video Signal...
  • Page 47 User Manual PT-PSW-52H General Operation Temperature -10~ +40℃ Storage Temperature -15~ +55℃ Relative Humidity 10% ~ 90% Power Supply DC24V 2.71A Power Consumption 27w (Max) Dimension (W*H*D) 220mm x 44mm x 172.5mm Net Weight 514g...

  • Page 48: Panel Drawing

    User Manual PT-PSW-52H 6. Panel Drawing CONTROL MIC INPUT LINE RES RESET IR EYE FIRMWARE RS232 AUDIO OUT DC 24V 1-HDMI / MHL 2-HDMI 3-HDMI 4-DP 5-VGA HDMI 1 HDMI 2 INPUTS OUTPUTS Presentation Switcher Multiformat Seamless Scaling 1080p, Dual HDMI Out PT-PSW-52H 220 mm 1-HDMI/MHL...

  • Page 49: Troubleshooting & Maintenance

    User Manual PT-PSW-52H 7. Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the Try another high quality cable. connecting cable Output image with snowflake Fail or loose Make sure the connection is connection good Check with oscilloscope or No signal at the input multimeter if there is any signal / output end...

  • Page 50: After-Sales Service

    User Manual PT-PSW-52H 8. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail).
  • Page 51 User Manual PT-PSW-52H...
  • Page 52 Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de info@purelink.de...
