Owner's Manual
PS-6200
PureLink Presentation Switcher
TM
PureLink
535 East Crescent Avenue
Ramsey, NJ 07446
USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-6200 and is the answer not in the manual?

Questions and answers

Related Manuals for PureLink PS-6200

Summary of Contents for PureLink PS-6200

  • Page 1 Owner’s Manual PS-6200 PureLink Presentation Switcher PureLink 535 East Crescent Avenue Ramsey, NJ 07446 Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com www.purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com...

  • Page 2: Table Of Contents

    PureLink by Dtrovision ABLE OF ONTENTS Chapter 1. Product Overview 1.1 Safety Precautions --------------------------------------------------------------- 1.2 Declaration of Conformity --------------------------------------------------------------- 1.3 What’s in the Box --------------------------------------------------------------- 1.4 Product Introduction --------------------------------------------------------------- 1.5 Front View --------------------------------------------------------------- 1.6 Rear View --------------------------------------------------------------- 1.7 Installation Guidelines --------------------------------------------------------------- Chapter 2.

  • Page 3: Safety Precautions

    PureLink by Dtrovision Chapter 1. Introduction 1.1 Safety Precautions  All safety instructions should be read and understood before the unit is operated.  The owner’s manual and safety instructions should be retained for future reference.  Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth only.

  • Page 4: Declaration Of Conformity

    Council Directive Low Voltage Equipment Safety. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. 1.3 What’s in the Box  Main Frame: PS-6200  Power Adapter – DC12V, 5A, 60W  RS-232C & LAN cables ...

  • Page 5: Product Introduction

    DVI output. Auto-Scaling with Seamless Switching The PS-6200 offers as a standard feature, built-in auto-scaling on all the outputs – minimizing latency and providing seamless switching when multiple contrasting display devices are used. With the scaling feature built-in, the PS-6200 eliminates the cost of individual outboard scalers, and ensures the best resolution and picture quality on each display, regardless of which sources are routed.

  • Page 6: Front View

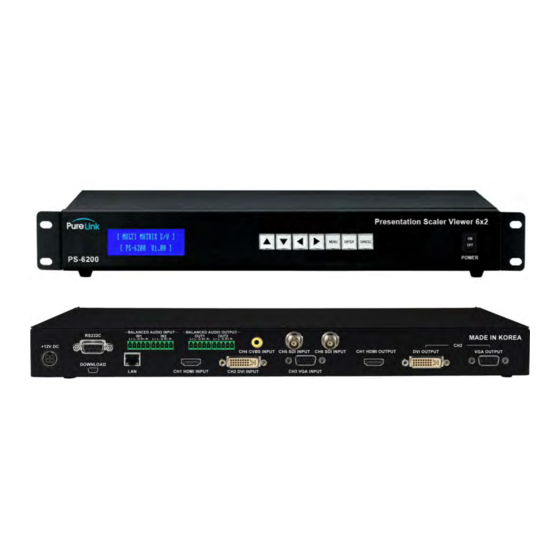

    1.5 Front View The PS-6200 chassis is mountable on 19” standard rack with brackets. On front panel, there are some function keys, and a status display window placed as shown in Figure 1-1.

  • Page 7: Installation Guidelines

    PureLink by Dtrovision DOWNLOAD: Mini USB port for firmware update VIDEO INPUTS : CH1: HDMI, CH2: DVI (HDMI compatible), CH3: VGA (Component compatible), CH4: CVBS, CH5: 3G/HD-SDI, CH6: 3G/HD-SDI VIDEO OUTPUTS : CH1: HDMI, CH2: DVI and VGA (mirrored output)

  • Page 8: Chapter 2. Product Features & Specification

    Chapter 2. Product Features & Specification 2.1 Features PureLink’s new PS-6200 Presentation Switcher is a complete, high definition A/V signal-routing solution for simple conferencing environments. Together with PureLink’s fast-switching speeds, the PS-6200 provides a simple, flexible, and high-performance solution for integration into conference rooms and corporate meeting rooms.
  • Page 9 PureLink by Dtrovision Shipping Weight 8.4 lbs (3.8 kg) (with accessories and cover box) Functional Specification Communication HDMI HDMI, HDCP, EDID, CEC USB service port for firmware update 2-way device control and monitoring up to 115.2k baud rate with hardware and...
  • Page 10 PureLink by Dtrovision SMPTE 425M (3G-SDI) 4:2:2 Colorspace: 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60); SMPTE 425M (3G-SDI) 4:4:4 Colorspace: 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@30Hz (1080p30), 1920x1080@50Hz (1080i50 or 1080sF25), 1920x1080@60Hz (1080i60 or 1080sF30); SMPTE 260M (HD- Input Resolutions, 3G/HD-SDI SDI): 1920x1035@60Hz;...

  • Page 11: Chapter 3. Operational Guidelines

    PureLink by Dtrovision Chapter 3. Operational guidelines 3.1 Main Menu Main menu shows the current input and output switching status with resolution information. line HDMI indicates output # 1 and 2 line DVI indicates output # 2. [HDMI: IN1, 1920x1080] means that output # 1 (HDMI) is connected to input # 1 (IN1) and its resolution is 1920 x 1080.
  • Page 12 PureLink by Dtrovision Once you select a setting, use ◄ (left) and ► (right) buttons to configure its parameter and press Enter button to save. A list of available parameter for the video and audio settings follows; Video: Input # 1 ~ 6 Audio: Source, Balanced In1, Balanced In2, and Off.
  • Page 13 PureLink by Dtrovision On this menu, you can configure EDID on the input. Use ▲(up) and ▼ (down) buttons to select input # (Input #1, input #2, and input #3). Once you select input #, use ◄ (left) and ► (right) buttons to configure its parameter and press Enter button to save.
  • Page 14 PureLink by Dtrovision Once you select a setting, use ◄ (left) and ► (right) buttons to select parameter and press Enter button to save. 7. Product ID On this menu, you can configure router’s ID. Use ▲(up) and ▼ (down) buttons to set the value and press Enter button to save.

  • Page 15: Chapter 4. Communication Code Configuration

    This section is designed for programmers who wish to create their own control programs using the command code. All PureLink digital matrix routers provide a simple character stream control used by external control devices attached to a PureLink device. Command codes are used primarily for control, during system installation and setup, and for diagnostic purposes.

  • Page 16: General Rules For Command Codes

    PureLink by Dtrovision 4.4 General Rules for Command Codes The commands are coded in ASCII and HEXA. Please refer to Table 3.1 on pg. 17 for detailed descriptions of keys and functions. A basic command code setup is shown below;...
  • Page 17 PureLink by Dtrovision Table 4.1 Command Codes Characters Table The table below shows command code characters (keys), which are used to generate control commands, their functions, and short function descriptions. Function Description and Example Byte ASCII 0x2A Start the command...

  • Page 18: Command Ack Value Response

    PureLink by Dtrovision 16: 1920x1200 60Hz Firmware version check command; ?version Firmware version check *01?version!  Network configuration setting command: - IP Setting *01NIP125.135.199.004!  - Subnet Mask Setting *01NSM255.255.255.000!  - Gate Way Setting 0x4E Networking setting *01NGW192.168.000.001! ...

  • Page 19: Example Command Codes

    PureLink by Dtrovision Command Code Ack Value as appears in the control Explanation of Result Entered program *01CI01O01!  *01sC I01O01 ! The command was successfully executed The command was not executed because *01CO01!  Command Code Error the input number was not included The command was not executed because “!”...
  • Page 20 PureLink by Dtrovision 3) Output resolution select command EX) *01TCO01T16,O02T00!<CR> * : START CODE 01 : ROUTER ID TC : COMMAND O01 : OUTUT PORT NUMBER T00 : RESOLUTION SELECT T00:AUTO , : PORT Separator ! : END CODE <CR> : Carriage return (HEX CODE: 0x0D)
  • Page 21 PureLink by Dtrovision *01PC00!<CR> ==> VGA SELECT *01PC01!<CR> ==> COMPONENT SELECT * : START CODE 01 : ROUTER ID PC : COMMAND 00 : 00-VGA 01-COMPONANT ! : END CODE <CR> : Carriage return (HEX CODE: 0x0D) 6) RS232 Baudrate select command EX) *01@001!<CR>...

  • Page 22: Lan Code Configuration

    PureLink by Dtrovision 4.7 LAN CODE CONFIGURATION Using TELNET protocol with LAN(TCP/IP) The PS-6200 presentation switcher can be controlled from remote locations through the LAN port using WINDOWS XP DOS prompts, hyper-terminal, or TELNET program (the control code is fully compliant with RS-232C).

  • Page 23: Web Interface

    1. Please configure network settings (Gateway address, IP address, Subnet mask, Mac address) of PS-6200 via front panel of the unit or via RS232 commands according to the network environment. 2. Please open a web browser on the PC/Laptop and type IP address you configured on step 1.
  • Page 24 PureLink by Dtrovision <Video outputs’ input audio source select> <Video outputs’ video resolution select>...
  • Page 25 PureLink by Dtrovision <Audio matrix outputs’ input audio select>...

  • Page 26: Firmware Update Instruction

    Firmware update procedure follows; 1 & 2 . Load firmware file on both Flash and EEprom. 3. Setup comport # and speed. *Baudrate speed must be matched with baud rate speed on PS-6200 unit 4. Open the port 5. Click send reset button...

  • Page 27: Chapter 6. Additional Information

    Chapter 6. Additional Information 6.1 Manufacturer’s Warranty (2-Year) Dtrovision warrants this PS-6200 presentation switcher to be free from defects in workmanship and materials, under normal use and service, for a period of two (2) year from the date of purchase from Dtrovision or its authorized resellers.
