Summary of Contents for PureLink MVS-41

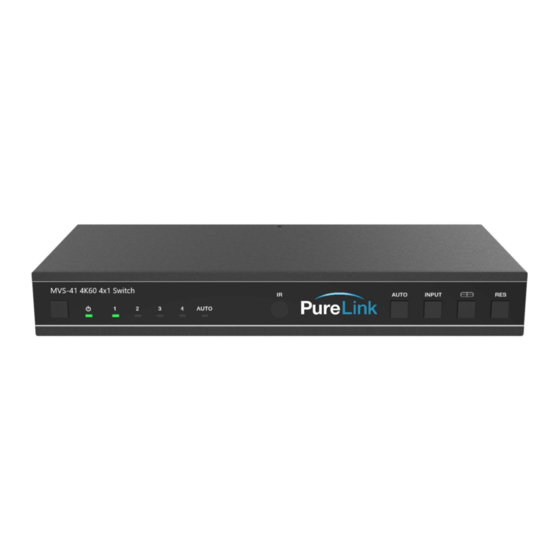

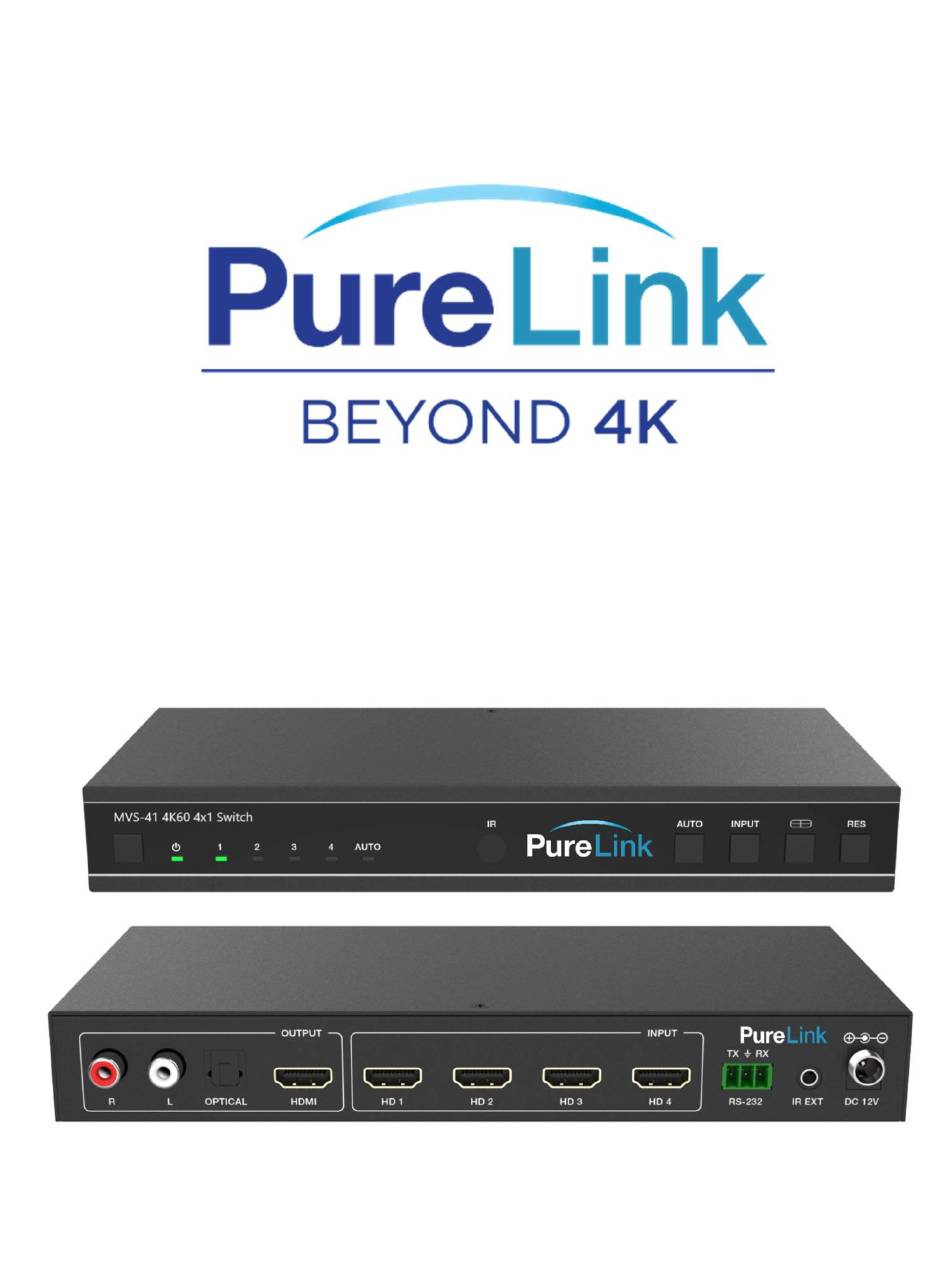

- Page 1 Purelink MVS-21 User Manual V1.1 MVS-41 4K60 4x1 Seamless Switch/Multiviewer/Scaling System...
-
Page 2: Table Of Contents
Purelink MVS-21 User Manual V1.1 Contents Introduction ..............................1 Features ..............................1 Package Contents ............................2 Specifications .............................. Operation Controls and Functions ......................4 Front Panel .............................. 4 Rear Panel ............................... 5 IR Remote ..............................EDID Settings .............................. 7 Video &... -
Page 3: Introduction
Purelink MVS-21 User Manual V1.1 Introduction The PureLink MVS-41 provides 4x1 switching, multiview, and scaling conversion for two sources on a single screen. The user can easily manage each input and create any layout and position of any of the two inputs on a single monitor. -
Page 4: Package Contents
Purelink MVS-21 User Manual V1.1 Package Contents • 1 x 4K60 4x1 Multiviewer Seamless UHD Video Switcher • 1 x IR Remote • 1 x 3pin-3.81mm Phoenix Connector (male) • 1 x 38KHz IR Wideband Receiver Cable (1.5 meters) •... - Page 5 Purelink MVS-21 User Manual V1.1 Input: AC 100 - 240V 50/60Hz Power Supply Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) Power 10W (Max) Consumption Operating 32 - 104°F / 0 - 40°C Temperature Storage -4 - 140°F / -20 - 60°C...
-
Page 6: Operation Controls And Functions
Purelink MVS-21 User Manual V1.1 Operation Controls and Functions Front Panel Name Function Description Short press this button to power on the device. ▪ Long press this button for 1 seconds to enter the standby mode. Power ▪ button The Power LED will light in green when the product is powered on, and red when the product is Power on standby. -
Page 7: Ir Remote
Purelink MVS-21 User Manual V1.1 Optical fiber digital audio output port. OPTICAL port HDMI HDMI signal output port, connected to HDMI display device such as TV or Monitor with HDMI OUTPUT cable. port HDMI signal input ports, connected to HDMI source device such as DVD or Set-top box with INPUT HDMI cable. -
Page 8: Video
Purelink MVS-21 User Manual V1.1 1080P-7.1CH AUTO Video & Audio The switcher provides multiple resolution video input up to 3840x2160@60, and multiple audio formats such as LPCM, AC3, DD+, DTS, DTS- HD, up to 7.1 channel pass through function via HDMI cable. -
Page 9: Rs-232 Command
Purelink MVS-21 User Manual V1.1 RS-232 Command Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. ASCII Commands Serial port protocol: baud rate: 115200(default) Data bits: 8 Stop bits: 1 Check bit: 0 x - Parameter 1;... - Page 10 Purelink MVS-21 User Manual V1.1 r output res! Get output resolution r output res! out resolution: 3840x2160p60 set output hdcp s output hdcp 2! (x=1~3) output HDCP: HDCP 1.4 HDCP 1.4 s output hdcp x! HDCP 2.2 HDCP / 14 r output hdcp! Get output hdcp status.
- Page 11 Purelink MVS-21 User Manual V1.1 Set output audio source (x=0~2) follow window 1 s output audio s output audio 0! output audio: follow window 1 selected source selected source HDMI 1 input audio HDMI 2 input audio output audio: follow window 1 video...
- Page 12 Purelink MVS-21 User Manual V1.1 Select one input for one display window for the current Multiview mode. s window 1 in 1! (x=1~2) s window x in y! window 1 select HDMI 1 window 1 window 2 (y=1~2) HDMI 1...
- Page 13 Purelink MVS-21 User Manual V1.1 14 / 14...
