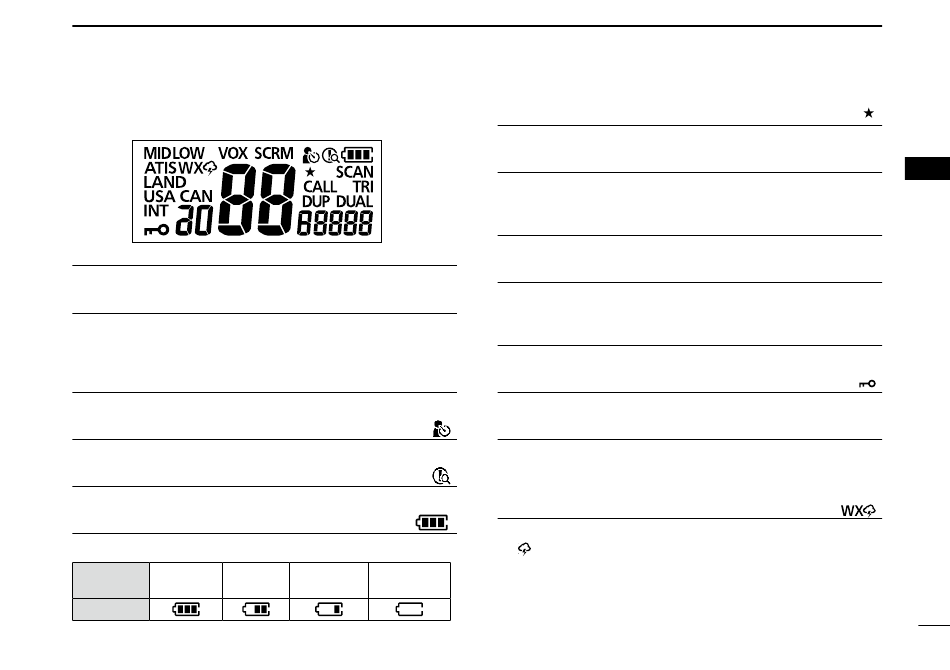

■ Function display
TRANSMIT POWER INDICATOR
Displayed when low power or mid power is selected.
VOX INDICATOR
Displayed when the VOX function* is ON.
* Usable only when the optional PTT switch cable and headset are
connected.
VOICE SCRAMBLER INDICATOR
Displayed when the Voice scrambler is ON. (p. 18)
MAN DOWN ICON
Displayed when the Man Down Alarm function is ON. (p. 22)
LONE WORKER ICON
Displayed when the Lone Worker Alarm function is ON. (p. 22)
BATTERY INDICATOR
Displays the battery status.
Battery
Full
Mid
status
Indication
"MID"/"LOW"
"VOX"
"SCRM"
"
"
"
"
"
"
Charging
Battery
required
exhausted
PANEL DESCRIPTION
FAVORITE CHANNEL ICON
Displayed when a Favorite channel is selected. (p. 16)
SCAN INDICATOR*
Blinks while scanning. (p. 15)
* Except the Dutch version.
CALL CHANNEL INDICATOR
Displayed when the Call channel is selected. (p. 11)
DUALWATCH/TRI-WATCH INDICATOR *
Displayed during Dualwatch or Tri-watch operation. (p. 17)
* Except the Dutch version.
DUPLEX INDICATOR
Displayed when a Duplex channel is selected.
LOCK ICON
Displayed when the Lock function is ON.
CHANNEL GROUP INDICATOR
Displays the selected channel group.* (p. 12)
* The selectable channel groups may differ, depending on the
version.
WEATHER CHANNEL ICON*
Displayed when the Weather channel is selected. (p. 12)
L " " is displayed when the Weather Alert function is ON.
* Except the European, UK, German, and Dutch versions.
"
"SCAN"
"CALL"
"DUAL"/"TRI"
"DUP"
"
"INT"/"USA"/"CAN"/"LAND"/"ATIS"
"
