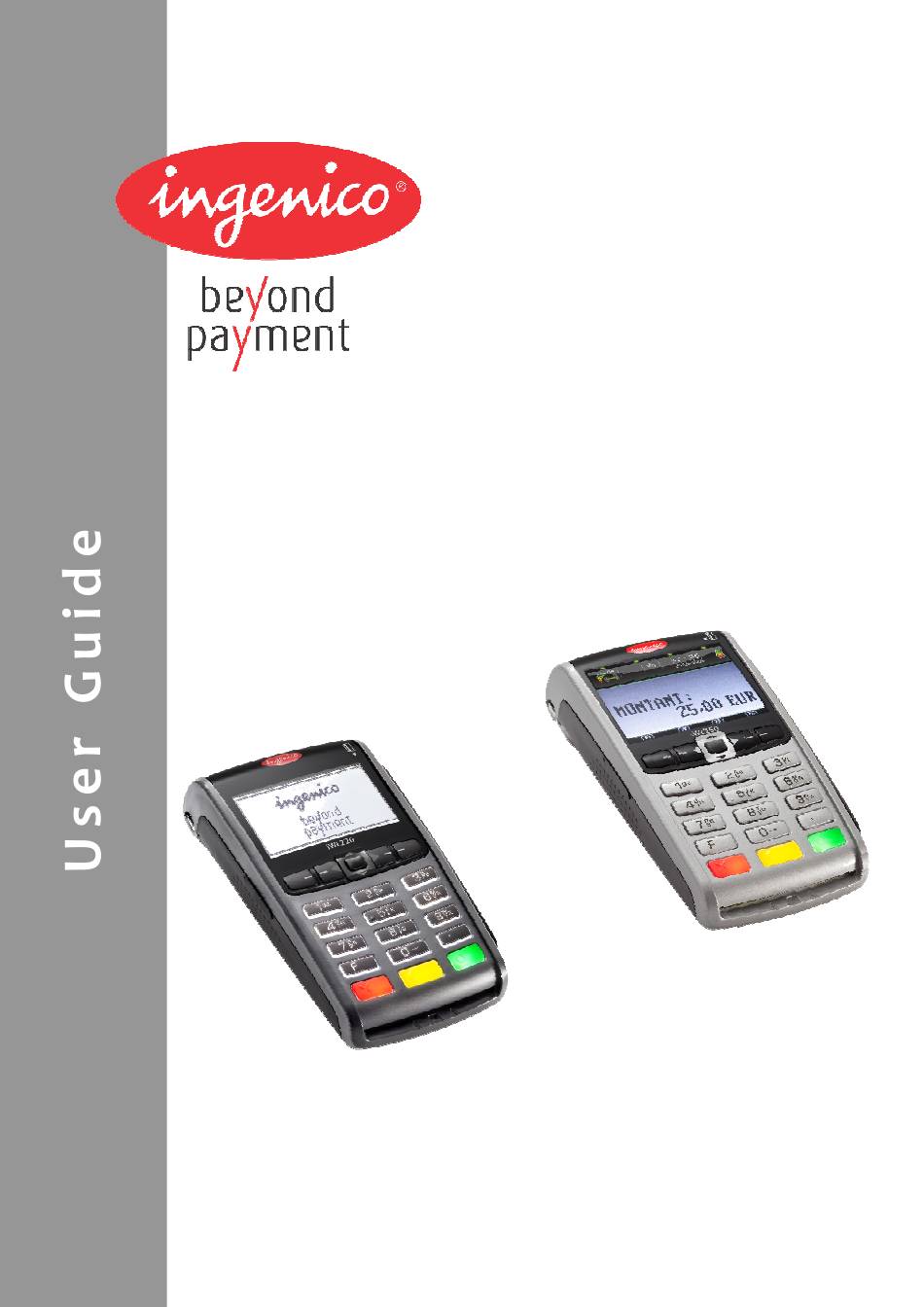

- Page 1 Wireless Series INGENICO – 192 avenue Charles de Gaulle – 92200 Neuilly sur Seine - FRANCE Tél. 33(0)1 46 25 82 00 - Fax 33 (0)1 47 72 56 95 www.ingenico.com...
-
Page 2: Table Of Contents
4.3. Installing Modules_____________________________________________________11 4.3.1. SAM1/SAM2/SIM _______________________________________________________________ 11 4.3.2. MicroSD Memory Card __________________________________________________________ 11 4.4. Paper roll ___________________________________________________________ 13 4.4.1. Mains characteristics of INGENICO paper roll ________________________________________ 13 4.4.2. Installing paper roll _____________________________________________________________ 14 4.5. Battery_____________________________________________________________ 15 4.5.1. Main characteristics_____________________________________________________________ 15 4.5.2. - Page 3 6.2. Security of your terminal ______________________________________________ 22 6.3. Telephone call _______________________________________________________ 22 7. Standards ___________________________________________________ 23 8. Troubleshooting _____________________________________________ 28 9. Annex ______________________________________________________ 29 • iWL2xx Wireless Series 3/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved...
-
Page 4: Introduction
WARRANTY / SECURITY Use only the power supply included with the product to ensure best performance and safety. Maintenance should only be provided by Ingenico authorized technician. Failure to comply with these instructions will void the manufacturer’s responsibility. This symbol indicates an important Warning. -
Page 5: Presentation
(with base modem) WARNING The power supply unit provided with your equipment is specially designed for Ingenico terminals. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal. -
Page 6: Overview Of The Iwl2Xx
140,7x87,7x45 mm Power supply unit Weight About 100g 2pole sockets 1A (traveller power supply) or 1 A (base power supply) Power supply units are specially fitted for INGENICO terminals. • iWL2xx Wireless Series 6/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050... -
Page 7: Keyboard Details And Functionality
DOWN key in order to decrease the contrast. Keep pressing the keys as long as necessary. • iWL2xx Wireless Series 7/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 8: Switching Off The Terminal
(on back of the terminal). Insert the card up side down, magnetic stripe visible. Warning Switch off the terminal before opening the trapdoor. • iWL2xx Wireless Series 8/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 9: Installing The Terminal On The Base
The portable may be placed back on its base after each transaction. It must be placed on its modem base when telephone network is used for : authorization request, remote collection, downloading. • iWL2xx Wireless Series 9/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 10: Installation
The terminal supports USB Keys with FAT16 or FAT32 • The USB Key has to be used with an USB adapter (refers to accessories section) • iWL2xx Wireless Series 10/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 11: Installing Modules
Be sure to put the MicroSD contacts downside and the cut corner as indicated on the figure. • Close the trapdoor The terminal supports MicroSD up to 32GB • iWL2xx Wireless Series 11/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... - Page 12 • Remove the MicroSD Memory Card. MicroSD connector has push/pull ability . Push on MicroSD card edge to remove it. • Close the trapdoor • iWL2xx Wireless Series 12/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved...
-
Page 13: Paper Roll
Recommended paper: AF50KS (Jujo), or F5041 (Mitsubishi), or TK50KS (Nippon_Paper), or equivalent. WARNING For best product performance, only use heat sensitized paper approved by Ingenico. WARNING Switch off the terminal prior to installing a paper roll. Use only paper approved by Ingenico. -
Page 14: Installing Paper Roll
If you insert a new R40 paper roll, tear off the first length (one complete turn to avoid printing on adhesive tape footprint). This is not necessary on R25 paper roll as it has no tape. • iWL2xx Wireless Series 14/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 15: Battery
Place the battery pack in its compartment. • Check that the wires’ path is flat • Close the battery compartment trapdoor. Red wire Battery compartment • iWL2xx Wireless Series 15/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 16: Charging The Battery
• Connect the power supply unit to the power supply mains network • Check if the battery symbol is flashing or moving(=battery charging) • iWL2xx Wireless Series 16/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 17: Changing The Battery
4.5.4. Changing the battery It is imperative to use a battery authorized by Ingenico. There is danger of explosion if battery used is not approved by Ingenico. • Remove the terminal from its base • Turn it off by pressing simultaneously... -
Page 18: Base
Connect the power supply unit after all other connections. • Connect the power supply unit to the base socket B. • Connect the power supply unit to the mains network . • iWL2xx Wireless Series 18/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 19: Base Downside Connections
• Connect base power supply block to the mains . Socket I : TNV-3 circuit: Telecommunication Network Voltage, as per safety standard EN 60950-1. • iWL2xx Wireless Series 19/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 20: Fasten Your Base On Desk
Base must be set in horizontal position to insure terminal link work properly. This remains true when buttonholes are used. Uses wall docking station accessory to fasten base in non horizontal position. • iWL2xx Wireless Series 20/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 21: Recommendations
Battery iWL2XX is fitted with battery specially designed for this terminal. • Only use the appropriate chargers and batteries listed in the Ingenico’s catalogue. • Do not short-circuit the battery. • Do not attempt to remove the battery housing as its components cannot be modified. -
Page 22: Security Of Your Terminal
You hear a dial tone within 6 seconds. • iWL2xx Wireless Series 22/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 23: Standards
European approval specification on connecting terminals with DTMF dialling to the public switched telephone network (Council Decision 1998/482/EC, Council Decision 1999/303/EC): 103021-1/2/3 /09-2003 ES 203021 /1/2/3 (2006) 103000-1/2/3/4 /06-2003 201187 /03-1999 • iWL2xx Wireless Series 23/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... - Page 24 • This class (B) digital apparatus complies with Canadian ICES-003. • No changes shall be made to the equipment without the permission of Ingenico as this may void the user’s authority to operate the equipment. • iWL2xx Wireless Series 24/31 Copyright ©...
- Page 25 FCC and Industry Canada. • iWL2xx Wireless Series 25/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved...
- Page 26 • This class (B) digital apparatus complies with Canadian ICES-003. • No changes shall be made to the equipment without the permission of Ingenico as this may void the user’s authority to operate the equipment. • iWL2xx Wireless Series 26/31 Copyright ©...
- Page 27 To assure that the product is collected and recycled with respect to the environment, you must contact your supplier (in defect, contact the Ingenico local office or the commercial head office in charge of your country on www.ingenico.com, « contact us » page).
-
Page 28: Troubleshooting
Possibly adjust the paper roll following the instructions in this manual (section 4.4 “Installing the paper roll”) • Check the type of paper used (thermal paper must be used) • Verify thermal paper sensitive side. • iWL2xx Wireless Series 28/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... -
Page 29: Annex
Using Power supply with Jack connector to charge the battery with the base. Using Power supply with µUSB connector to charge the battery without the base (direct connection to the µUSB connector of the terminal). • iWL2xx Wireless Series 29/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved... - Page 30 • 296109807: USB Cord (microB on terminal side USBA female on the other side) 0,15 m black • 295006044 : Battery pack Li-Ion standard • iWL2xx Wireless Series 30/31 Copyright © 2011 Ingenico 900003061 R11 000 04/1050 All rights reserved...
- Page 31 INGENICO. Moreover, nobody is authorized to place this document at the disposal of any third party without the prior written permission of INGENICO. If such permission is granted, it will be subject to the condition that the recipient ensures that any other recipient of this document, or information contained therein, is held responsible to INGENICO for the confidentiality of that information.
