BE936

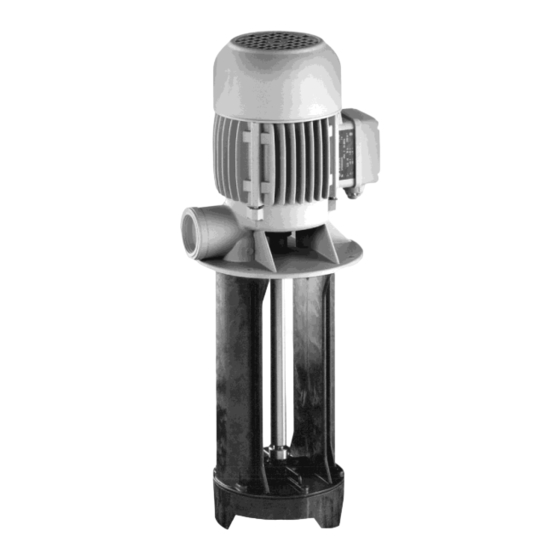

BRINKMANN Immersion Pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
Operating Instructions
(Translation of original)
09/2021
Edition
KTB200
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No. : BE936 ENGLISH
1
9
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS KTB200
Summary of Contents for BRINKMANN PUMPS KTB200
- Page 1 BE936 Operating Instructions (Translation of original) BRINKMANN Immersion Pumps KTB200 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No. : BE936 ENGLISH ©...
-
Page 2: Table Of Contents
Brinkmann Immersions pumps of the series KTB200 Contents Indication to the manual ........2 8 Servicing and Maintenance ....... 6 9 Trouble shooter’s guide ........7 Description of product ........2-3 Safety instructions ..........4 10 Spare part ............8 Transport and storage ........ - Page 3 Type spec. weight 1 l/min H mm h mm dBA / 50 Hz KTB200 / 120 0.63 / 0.725 10.0 1) Dimensions in accordance with page 5 2) Noise emissions measured in accordance with DIN 45635 at a distance of 1 m The motor is surface-cooled and compliant with DIN IEC 34 and EN 60034 (protection degree IP 55).
-
Page 4: Safety Instructions
Safety instructions relevant for operation 3 Safety instructions • If hot or cold machine components involve When operating the pump, the safety instructions contained in this manual, the relevant national hazards, they must be guarded against acci- accident prevention regulations and any other dental contact. -
Page 5: Installation And Connection
Electric wiring 5 Installation and Connection Mechanical installation During any assembly or disassembly process the pumps must be secured against tipping trough ropes for example at all times. All service work must be carried out by quali- Pumps must be mounted securely. Piping, tank and fied service personnel. -
Page 6: Start Up / Shut Down
6 Start up / Shut down 8 Servicing and Maintenance Start up ATTENTION ATTENTION The surface of the motor must be kept free of dirt. Switch off at the mains. The motor shaft is spinning in permanently greased After connection the electrical wires, close the ball bearings (with special grease and increased terminal box. -
Page 7: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming noise One of the supply leads has failed See above Impeller faulty... -
Page 8: Spare Part
10 Spare part 10.1 Spare part list for the immersion pumps of the series KTB200 Item Description Stator with terminal board Pump body Inlet cover Impeller End shield Terminal box Shaft with rotor Fan cover 10 Stud bolt with bond... -
Page 9: Ec Declaration Of Conformity
Produktbezeichnung / Product name / Désignation du produit / Designación del producto Tauchpumpen / Immersion pumps / Pompes plongeantes / Bombas de inmersión Typ / Type / Tipo KTB200 Das bezeichnete Produkt stimmt mit den folgenden Richtlinien des Rates zur Angleichung der Rechtsvorschriften der EG-Mitgliedsstaaten überein: The named product conforms to the following Council Directives on approximation of laws of the EEC Member States: Le produit sus-mentionné...
