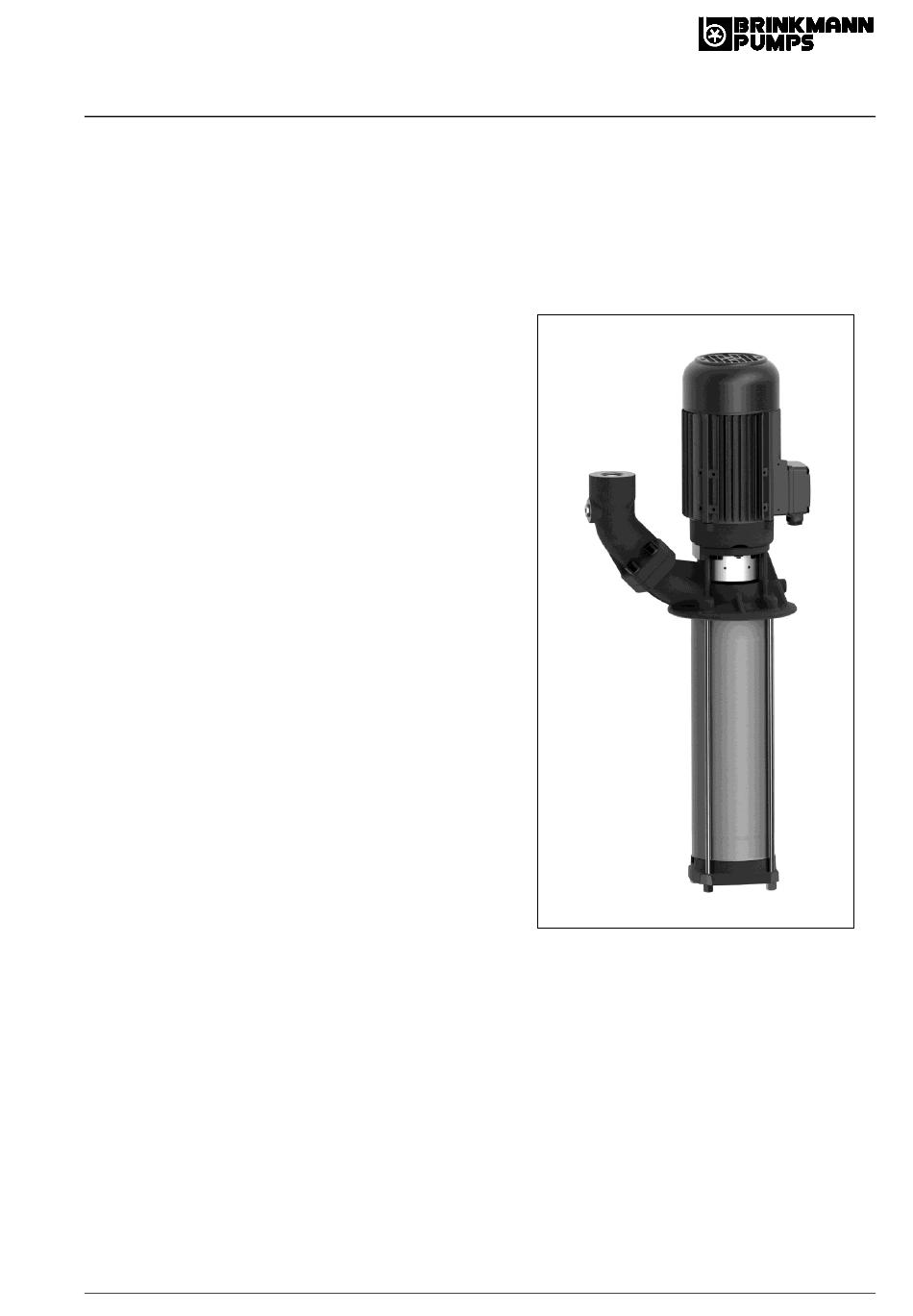

BE3920

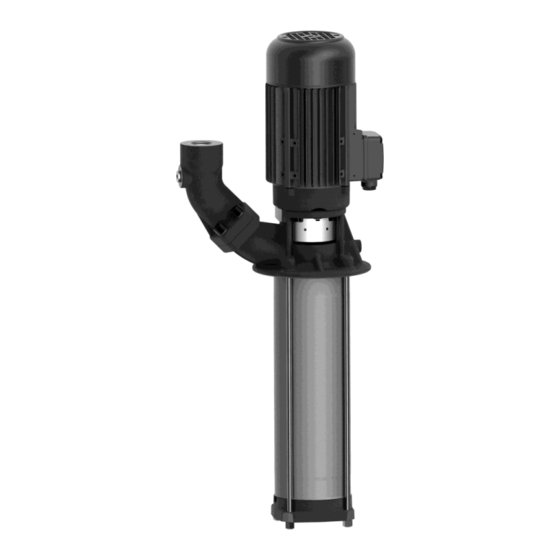

BRINKMANN Immersion Pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
Operating Instructions
(Translation of original)
TH/STH2...TH/STH6
05/2020
Edition
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No.: BE3920 ENGLISH
1
16
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS TH2 Series
Summary of Contents for BRINKMANN PUMPS TH2 Series
- Page 1 BE3920 Operating Instructions (Translation of original) BRINKMANN Immersion Pumps TH/STH2…TH/STH6 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No.: BE3920 ENGLISH ©...
-
Page 2: Table Of Contents
Brinkmann Immersions pumps of the series TH/STH2 ... TH/STH6 Contents 9 Trouble shooter’s guide ........12 Indication to the manual ........2 Description of product ........2-8 10 Spare part ..........13-14 Safety instructions ..........9 11 Repair ............14-15 Transport and storage ........ - Page 3 Technical data 50 Hz Max. del. Max. del. Height Depth of Weight Power Noise pressure volume immersion level bar / Type spec. weight 1 l/min H mm h mm 14.4 0.45 (S)TH203A190 14.5 (S)TH204A190 14.6 (S)TH205A190 14.7 (S)TH206A190 15.2 (S)TH207A290 (S)TH208A290 15.6 0.54...
- Page 4 50 Hz Max. del. Max. del. Height Depth of Weight Power Noise pressure volume immersion level bar / Type spec. weight 1 l/min H mm h mm (S)TH403A190 14.4 0.45 (S)TH404A190 14.5 (S)TH405A190 14.9 0.54 (S)TH406A190 15.0 (S)TH407A290 17.9 0.75 (S)TH408A290 18.0 (S)TH409A290...
- Page 5 50 Hz Max. del. Max. del. Height Depth of Weight Power Noise pressure volume immersion level bar / Type spec. weight 1 l/min H mm h mm 14.8 0.54 (S)TH603A190 (S)TH604A190 17.5 0.75 (S)TH605A240 17.8 (S)TH606A240 18.0 0.92 (S)TH607A290 19.5 (S)TH608A290 26.2 (S)TH609A340...
- Page 6 60 Hz Max. del. Max. del. Height Depth of Weight Power Noise pressure volume immersion level bar / Type spec. weight 1 l/min H mm h mm (S)TH203B190 14.4 0.45 (S)TH204B190 14.5 (S)TH205B190 14.9 0.54 (S)TH206B190 15.0 (S)TH207B290 19.0 0.86 (S)TH208B290 19.1 (S)TH209B290...
- Page 7 60 Hz Max. del. Max. del. Height Depth of Weight Power Noise pressure volume immersion level bar / Type spec. weight 1 l/min H mm h mm (S)TH403B190 14.9 0.54 (S)TH404B190 17.1 0.86 (S)TH405B190 17.2 (S)TH406B190 18.2 1.06 (S)TH407B290 19.4 1.27 (S)TH408B290 19.5...
- Page 8 60 Hz Max. del. Max. del. Height Depth of Weight Power Noise pressure volume immersion level bar / Type spec. weight 1 l/min H mm h mm (S)TH603B190 16.8 0.86 (S)TH604B190 17.5 1.06 (S)TH605B240 18.5 1.27 (S)TH606B240 25.0 1.75 (S)TH607B290 29.0 1.95 (S)TH608B290...
-
Page 9: Safety Instructions
3 Safety instructions Safety instructions relevant for opera- When operating the pump, the safety instructions tion contained in this manual, the relevant national • If hot or cold machine components involve accident prevention regulations and any other hazards, they must be guarded against acci- service and safety instructions issued by the plant dental contact. -
Page 10: Installation And Connection
5 Installation and Connection Mechanical installation During any assembly or disassembly process the pumps must be secured against tipping trough The pump must be mounted in that way that ropes for example at all times. rotating parts under the cover of the coolant tank can not be touched! Pumps must be mounted securely. -
Page 11: Start Up / Shut Down
6 Start up / Shut down 8 Servicing and Maintenance Start up ATTENTION ATTENTION The surface of the motor must be kept free of dirt. Switch off at the mains. The motor shaft is spinning in permanently greased After connection the electrical wires, close the ball bearings (with special grease and increased terminal box. -
Page 12: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming One of the supply leads has failed See above noise... -
Page 13: Spare Part
10 Spare part 10.1 Spare part list for the immersion pumps of the series TH/STH2 ... 6 Item Description Stator with terminal board Motor flange End shield Motor shaft with rotor Terminal box Fan cover 10 Gasket 13 Retaining ring 13 Retaining ring 1.3…2.6 kW DIN 471 14 Thread rolling screw... -
Page 14: Repair
10.2 Indications to the spare part order 9) Lubricate the O-ring seal (72) of the pump body (50), screw and put on the stud bolt (71), the Spare parts are available from the supplier. hexagon cap nuts (81) and the pump casing Standard commercially available parts are to be (67). -
Page 15: Disposal
11.2 Exchange the rotary mechanical seal: Tightening torques for screwed connections from (S)TH222A, (S)TH422A , (S)TH617A Thread - (S)TH217B, (S)TH415B , (S)TH615B 1) Disconnect the pump from the power supply. Strength classes 2) Loosen the M5 screws and pull out coupling Tightening 4.5 Nm 15 Nm... -
Page 16: Ec Declaration Of Conformity
13 EC declaration of conformity DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2, D-58791 Werdohl Produktbezeichnung / Product name / Désignation du produit / Designación del producto Tauchpumpen / Immersion pumps / Pompes plongeantes / Bombas de inmersión...
