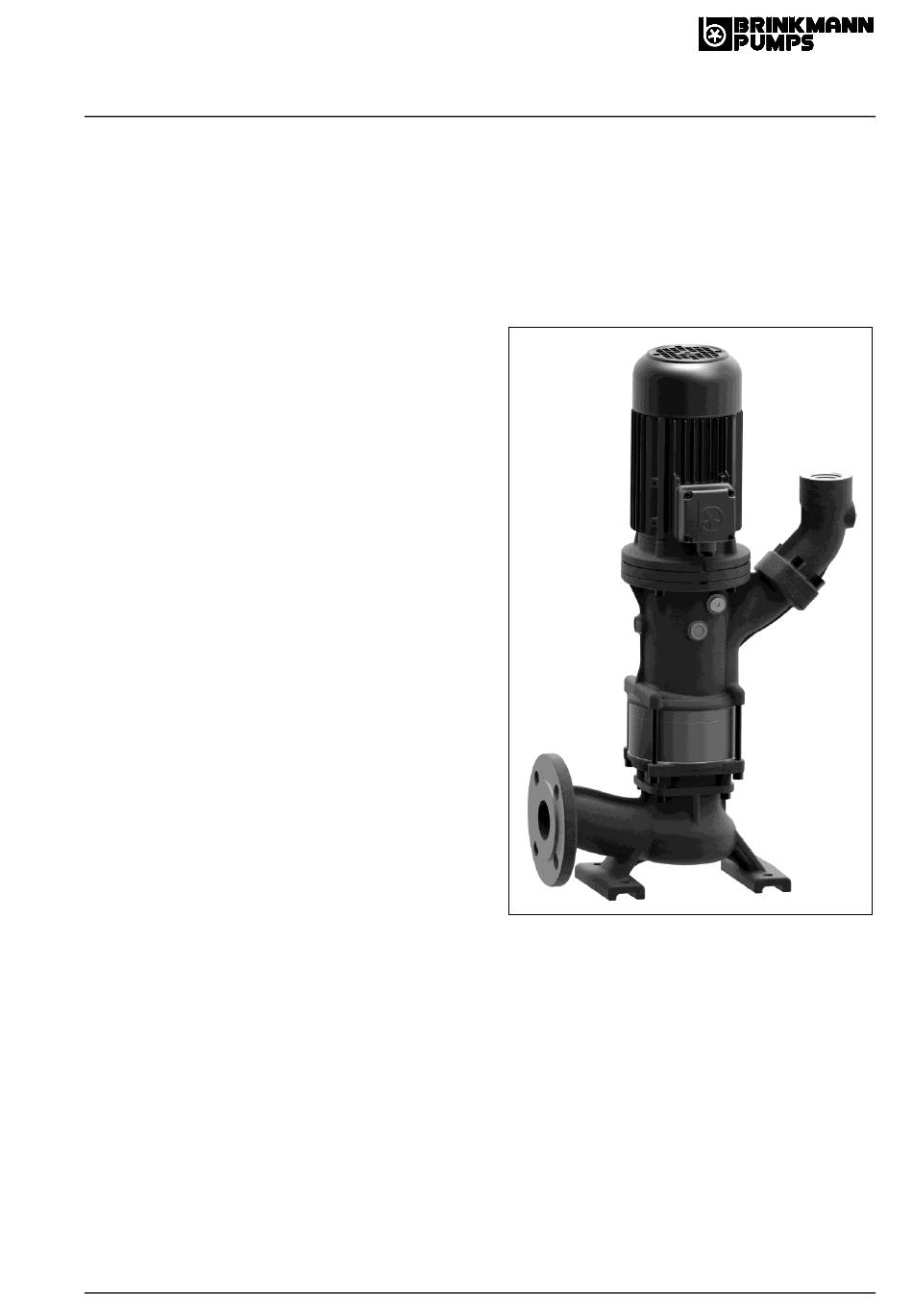

BE8107-V

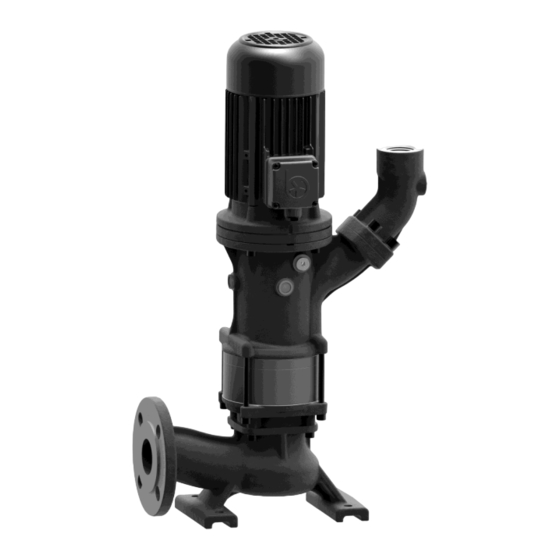

BRINKMANN-Vertical End Suction Pumps
SBA401...604-V, SBG501...503-V and SBF550-V
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
Operating Instructions
(Translation of original)
01/2020
Edition
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No. : BE8107-V ENGLISH
1 of 10
Page
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS SBA401-V
Summary of Contents for BRINKMANN PUMPS SBA401-V
- Page 1 BE8107-V Operating Instructions (Translation of original) BRINKMANN-Vertical End Suction Pumps SBA401...604-V, SBG501...503-V and SBF550-V Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No.
-
Page 2: Table Of Contents
Brinkmann–Vertical End Suction Pumps Series SBA401...604-V, SBG501...503-V and SBF550-V Contents Indication to the manual ........2 9 Trouble shooter’s guide ........6 Description of product ........2-3 10 Spare part ............7 Safety instructions .......... 3-4 11 Repair Instructions ........8-9 Transport and storage ........ -
Page 3: Safety Instructions
Power Noise pressure volume sions 50 / 60 Hz level bar / spec. Type weight 1 l/min H mm h mm dBA / 50 Hz SBA401-V 0.75 0.92 1.06 SBA402-V 1.75 1.75 SBA403-V 2.55 SBA601-V 31.5 1.27 SBA602-V 2.55 SBA603-V 3.15... -
Page 4: Transport And Storage
Safety instructions relevant for operation 5 Installation and Connection • If hot or cold machine components involve Mechanical installation hazards. they must be guarded against acci- The pumps must be properly fastened. The pipe- dental contact. work must be installed so that no distortion of the •... -
Page 5: Start Up / Shut Down
Electric wiring 6 Start up / Shut down Start up ATTENTION Switch off at the mains. All service work must be carried out by quali- After connection the electrical wires, close the fied service personnel. Pump must be discon- terminal box. Briefly start the motor (max. 30 sec.) nected from the power source and all rotating and check the rotation according to the arrow on parts must stand still. -
Page 6: Servicing And Maintenance
8 Servicing and Maintenance Pumps with double mechanical seal (-GD) Pumps with double mechanical seal (-GD) are ATTENTION identified by the letters GLRD stamped in on the motor side of the pump foot and must include an oil The surface of the motor must be kept free of dirt. receiver with a capacity of 0.24 litres. -
Page 7: Spare Part
10 Spare part 10.1 Spare part list for Brinkmann Horizontal SBA401...604-V. SBG501...503-V and SBF550-V End-Suction Pumps Series Item Description Stator with terminal board Motor flange End shield Terminal box Retaining ring DIN 472 Retaining ring DIN 471 Fan cover Ball bearing DIN 625 Ball bearing 1.5 kW to 2.2 kW DIN 628... -
Page 8: Repair Instructions
11)Loosen the Socket head cap screws (17) and 10.2 Indications to the spare part order remove the pump body (50). Spare parts are available from the supplier. Standard commercially available parts are to be 12)Remove circlip (25) and the m ech. -
Page 9: Disposal
− Tighten the shaft clamp ( 35 mm) for 11.2 Dismantling the insert shaft SBA402…403-V, 602…604-V SBG502…SBG503-V Use a torque screwdriver to tighten each screw first with 2 Nm then with 3.5 Nm and finally with 5 Nm (in a clockwise direction again) Repeat the last turn (with 5 Nm) 3 times. -
Page 10: Ec Declaration Of Conformity
13 EC declaration of conformity DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2, D-58791 Werdohl Produktbezeichnung / Product name / Désignation du produit / Designación del producto Vertikale Blockpumpen / Vertical End-Suction Pumps / Pompes verticales monobloc / Bombas verticales mono-...
