BE1580

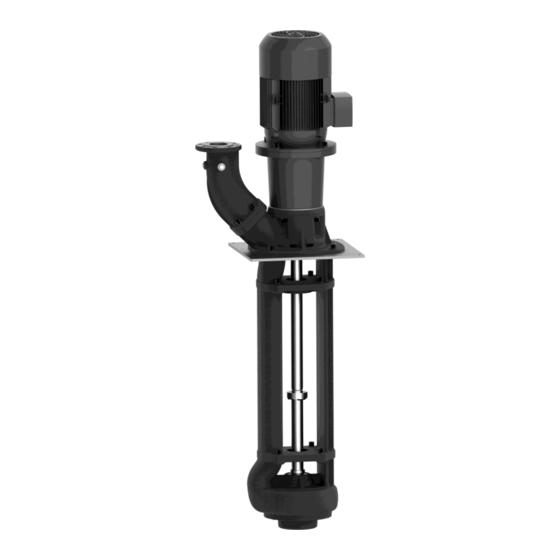

BRINKMANN Free Flow-Immersion Pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
Operating Instructions
(Translation of original)
11/2019
Edition
SFT2254...3554
www.BrinkmannPumps.com
Kontakt@BrinkmannPumps.de
Order - No. : BE1580 ENGLISH
1
10
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS SFT Series
Summary of Contents for BRINKMANN PUMPS SFT Series
- Page 1 BE1580 Operating Instructions (Translation of original) BRINKMANN Free Flow-Immersion Pumps SFT2254…3554 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.BrinkmannPumps.com Fax.: +49-2392 / 5006-180 Kontakt@BrinkmannPumps.de Subject to change without prior notice. Order - No.
-
Page 2: Table Of Contents
Brinkmann Free Flow-Immersion Series SFT2254…3554 Contents 9 Trouble shooter’s guide ........7 Indication to the manual ........2 Description of product ........2-3 10 Spare part ............8-9 Safety instructions ..........4 11 Repair ............... 9 Transport and storage ........4 12 Disposal ............ - Page 3 Technical data Max. del. Max. del. Height Depth of Weight Power pressure volume immersion (4-pole) bar / spec. 50 / 60 Hz Type weight 1 l/min H mm h mm SFT2254 / 460 1.45 2050 7.5 / 8.6 / 660 / 860 /1210 1210...
-
Page 4: Safety Instructions
• Guards for moving parts (e.g. coupling) must not 3 Safety instructions be removed from the machine while in opera- When operating the pump, the safety instructions contained in this manual, the relevant national tion. accident prevention regulations and any other •... -
Page 5: Installation And Connection
5 Installation and Connection Mechanical installation During any assembly or disassembly process the pumps must be secured against tipping trough The pump must be mounted in that way that ropes for example at all times. rotating parts under the cover of the coolant Pumps must be mounted securely. -
Page 6: Start Up / Shut Down
6 Start up / Shut down ATTENTION Start up The SFT pump should be operated in continual ATTENTION operation mode, not pulsed mode! Pulsed mode causes increased wear due to the Switch off at the mains. return flow of chips and additional load on the After connection the electrical wires, close the bearings terminal box. -
Page 7: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming noise One of the supply leads has failed See above Impeller faulty... -
Page 8: Spare Part
10 Spare part 10.1 Spare part list for the immersion pumps of the series SFT2254…SFT3554 Item Description Motor Pump housing Ball bearing DIN 628 11 Bearing flange 12 Shaft nut 13 Bearing shaft 14 Socket head cap screw DIN 912 15 Socket head cap screw DIN 912 with spring washer... -
Page 9: Repair
10.2 Indications to the spare part order 11.2 Assembling the insert shaft and motor shaft Spare parts are available from the supplier. Standard commercially available parts are to be ATTENTION purchased in accordance with the model type. The ordering of spare parts should contain the Clean the contact surfaces of the insert shaft (2) following details: (inside) and the motor shaft (3). -
Page 10: Ec Declaration Of Conformity
13 EC declaration of conformity DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2, D-58791 Werdohl Produktbezeichnung / Product name / Désignation du produit / Designación del producto Freistrom-Tauchpumpen / Free-flow Immersion Pumps / Pompes plongeantes non - engorgeables / Bombas de...
