BE2202

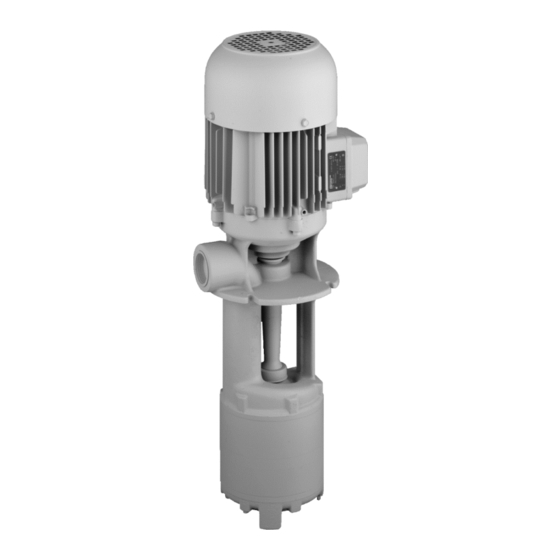

BRINKMANN Immersion Pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
Operating Instructions
(Translation of original)
09/2019
Edition
TA/TAL302
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No. : BE2202 ENGLISH
1
9
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS TA302 Series
Summary of Contents for BRINKMANN PUMPS TA302 Series
- Page 1 BE2202 Operating Instructions (Translation of original) BRINKMANN Immersion Pumps TA/TAL302 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No. : BE2202 ENGLISH ©...
-
Page 2: Table Of Contents
Brinkmann Immersions pumps of the series TA/TAL302 Contents Indication to the manual ........2 8 Servicing and Maintenance ....... 7 9 Trouble shooter’s guide ........7 Description of product ........2-3 Safety instructions ..........4 10 Spare part ............8 Transport and storage ........ - Page 3 Technical data Max. del. Max. del. Height Depth of Weight Power Noise level pressure volume immersion 50 / 60 1, 2) bar / spec. Type Type weight 1 l/min H mm h mm g kg dBA / 50 Hz TA302 / 170 TAL302 / 190 20.5 1.1 /...
-
Page 4: Safety Instructions
Safety instructions relevant for operation 3 Safety instructions • If hot or cold machine components involve When operating the pump, the safety instructions contained in this manual, the relevant national hazards, they must be guarded against acci- accident prevention regulations and any other dental contact. -
Page 5: Transport And Storage
4 Transport and storage ATTENTION Protect the pump against damage when transport- ing. Maximum tightening torque for piping connec- The pumps may only be transported in a horizontal tions is 120 Nm! position and hooks or straps must be attached on When installed the space around the pump the motor and pump end. -
Page 6: Start Up / Shut Down
Electric wiring 6 Start up / Shut down Start up ATTENTION Switch off at the mains. All service work must be carried out by quali- After connection the electrical wires, close the fied service personnel. Pump must be discon- terminal box. Briefly start the motor (max. 30 sec.) nected from the power source and all rotating and check the rotation according to the arrow on parts must stand still. -
Page 7: Servicing And Maintenance
8 Servicing and Maintenance ATTENTION The surface of the motor must be kept free of dirt. The motor shaft is spinning in permanently greased ball bearings (with special grease and increased bearing play) and does not require any special maintenance. 9 Trouble shooter’s guide Fault Cause... -
Page 8: Spare Part
10 Spare part 10.1 Spare part list for the immersion pumps of the series TA/TAL302 Item Description Stator with terminal board End shield Terminal box Fan cover Ball bearing DIN 625 10 Ball bearing DIN 625 11 Gasket 13 Retaining ring 15 Slotted cheese head screw DIN 84 18 Stud bolt with bond... -
Page 9: Ec Declaration Of Conformity
12 EC declaration of conformity DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2, D-58791 Werdohl Produktbezeichnung / Product name / Désignation du produit / Designación del producto Tauchpumpen / Immersion pumps / Pompes plongeantes / Bombas de inmersión...
