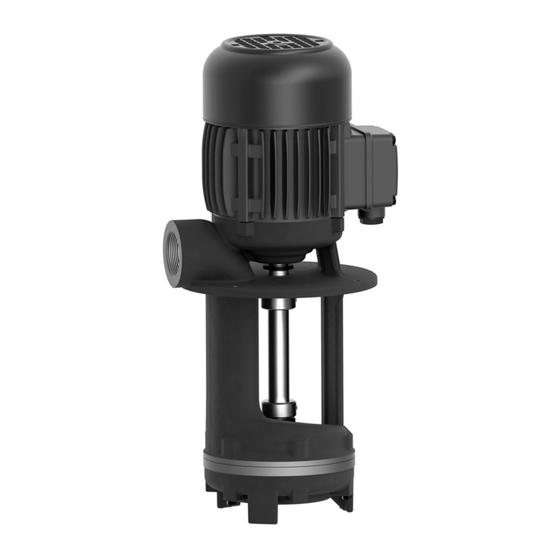

BRINKMANN Free Flow Immersion Pumps
FT35...FTA140
FT35
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
© Brinkmann Pumpen
Operating Instructions
(Translation of original)
09/2021
Edition
FTA140
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No. : BE1440 ENGLISH
1
9
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS FT35 Series
Summary of Contents for BRINKMANN PUMPS FT35 Series

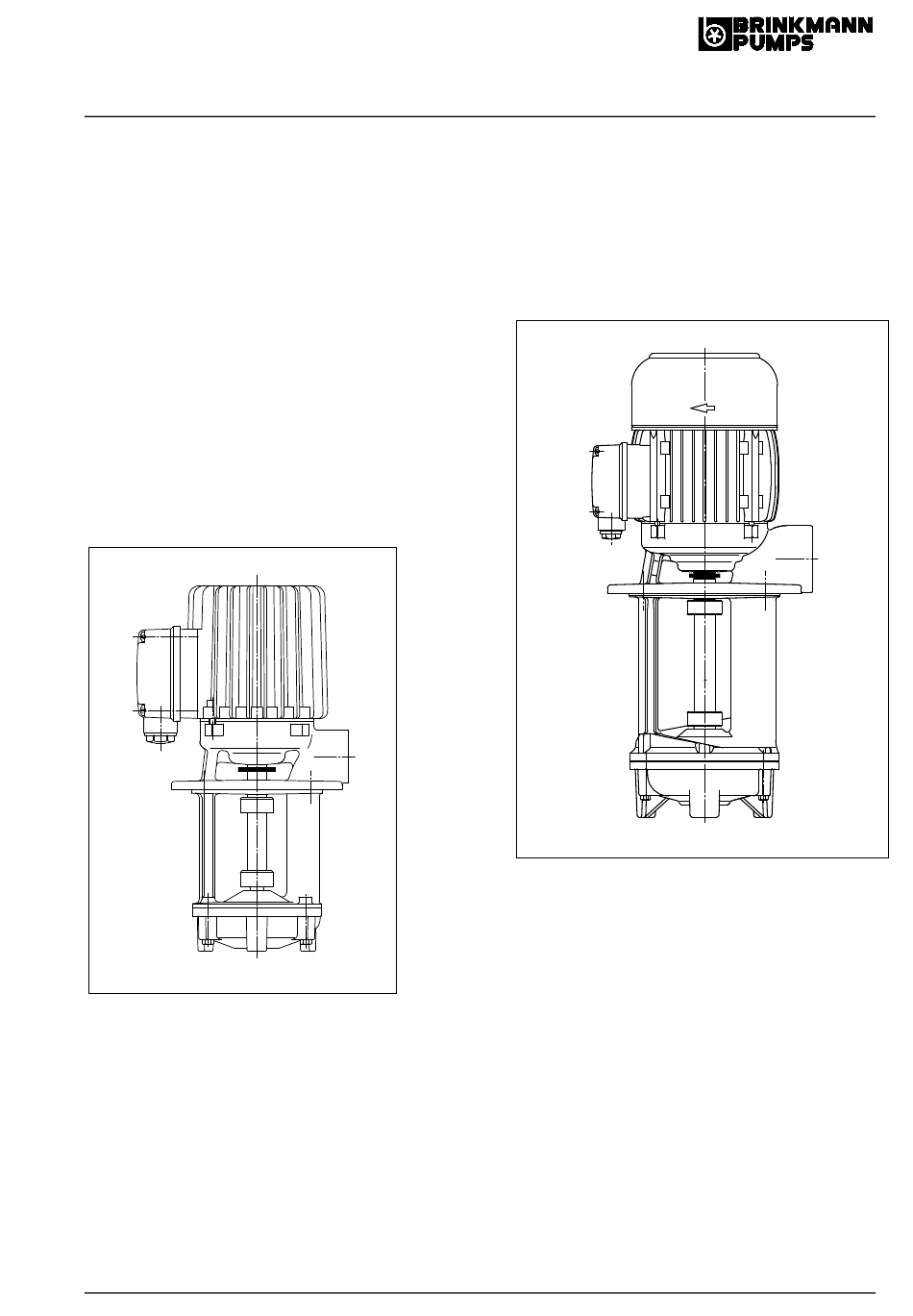

- Page 1 BE1440 Operating Instructions (Translation of original) BRINKMANN Free Flow Immersion Pumps FT35…FTA140 FTA140 FT35 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No.
-
Page 2: Table Of Contents
Brinkmann Free Flow Immersions Pumps of the series FT35 … FTA140 Contents Indication to the manual ........2 8 Servicing and Maintenance ....... 7 9 Trouble shooter’s guide ........7 Description of product ........2-3 Safety instructions ..........4 10 Spare part ............8 Transport and storage ........ - Page 3 Technical data Max. del. Max. del. Height Depth of Weight Power Noise pressure bar / volume immersion 50 / 60 Hz level Type spec. weight 1 l/min H mm h mm dBA / 50 Hz FT35 / 100 0.21 / 130 / 180 / 230 / 280...
-
Page 4: Safety Instructions
• Guards for moving parts (e.g. coupling) must not 3 Safety instructions be removed from the machine while in opera- When operating the pump, the safety instructions contained in this manual, the relevant national tion. accident prevention regulations and any other •... -
Page 5: Installation And Connection
Electric wiring 5 Installation and Connection Mechanical installation During any assembly or disassembly process the pumps must be secured against tipping trough ropes for example at all times. All service work must be carried out by quali- Pumps must be mounted securely. Piping, tank and fied service personnel. -
Page 6: Start Up / Shut Down
6 Start up / Shut down Start up ATTENTION If the pump should lock up and cease, shut Switch off at the mains. pump down (see 6.2) and disconnect from After connection the electrical wires, close the power supply. Pump must be uninstalled and terminal box. -
Page 7: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming One of the supply leads has failed See above noise... -
Page 8: Spare Part
10 Spare part 10.1 Spare part list for the immersion pumps of the series FT35 and FTA140 Item Description Stator with terminal board End shield FTA Terminal box Fan FTA Fan cover FTA Ball bearing DIN 625 10 Ball bearing DIN 625 11 Gasket 13 Retaining ring FTA... -
Page 9: Ec Declaration Of Conformity
12 EC declaration of conformity DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2, D-58791 Werdohl Produktbezeichnung / Product name / Désignation du produit / Designación del producto Freistrom-Tauchpumpen / Free-flow Immersion Pumps / Pompes plongeantes non - engorgeables / Bombas de...
