4.2

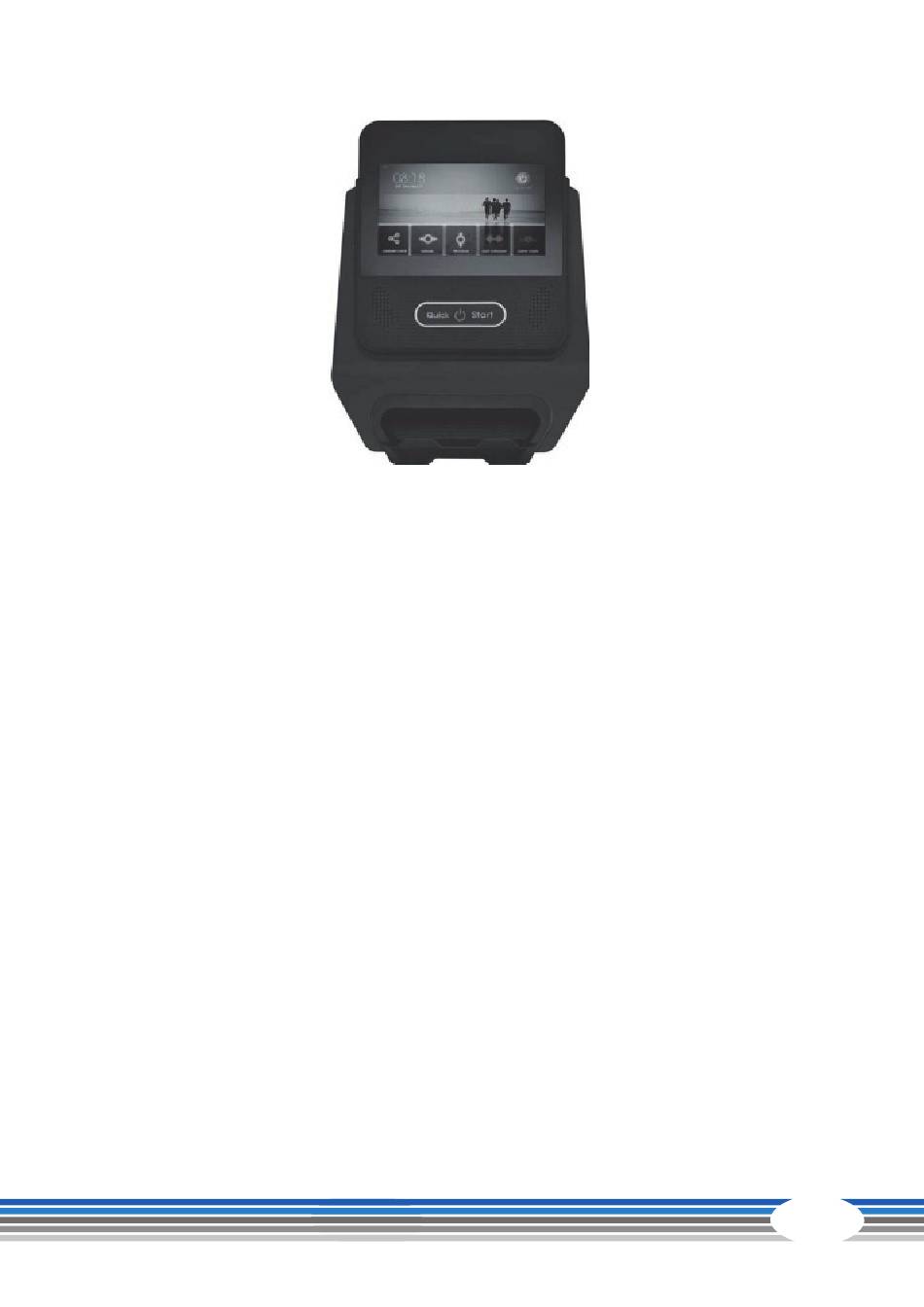

Console display

1. TIME:
(1) Display range: 0:00 ~ 99:59
(2) Setting range: 0 ~ 99 (minutes) (The value can be directly entered with the numerical pad)
(3) Display bar: Cell amount - 10 cells (MAX= 60 minutes, display full cells)
When no settings are set: 60 minutes / 10 cells = 6 minutes / cell
When settings are set: Setting value / 10 cells
(4) When no value is set, the default setting is counting up from 0:00 (after 99:59 it returns to 0:00).
(5) When a value is set, the default setting is counting down from the value to 0:00. At 0:00 the
console pauses and saves training data.
2. SPEED:
(1) Display range: 0.0 ~ 99.9 (km or ml)
(2) Display bar: Cell amount – 10 cells (MAX = 60 km, display full cells, = 6 km / cell)
(3) The value will be displayed 3 ~ 4 seconds after input.
(4) The value will return to 0 if no input is detected for 4 ~ 6 seconds.
3. RPM (Revolutions per minute):
(1) Display range: 0 ~ 999
(2) Display bar: Cell amount - 10 cells (MAX= 120 RPM, display full cells, = 12 RPM / cell)
(3) The value will be displayed 3 ~ 4 seconds after input.
(4) The value will return to 0 if no input is detected for 4 ~ 6 seconds.
4. DISTANCE:
(1) Display range: 0.0 ~ 60 ?? (km or ml)
(2) Setting range: 0 ~ 99 (The value can be directly entered with the numerical pad)
(3) Display bar:: Cell amount - 10 cells (MAX= 10.0 KM, display full cells).
When no settings are set: 10.0 KM / 10 cells = 1.0 KM / cell
When settings are set: Setting value / 10 cells
