Step 7:

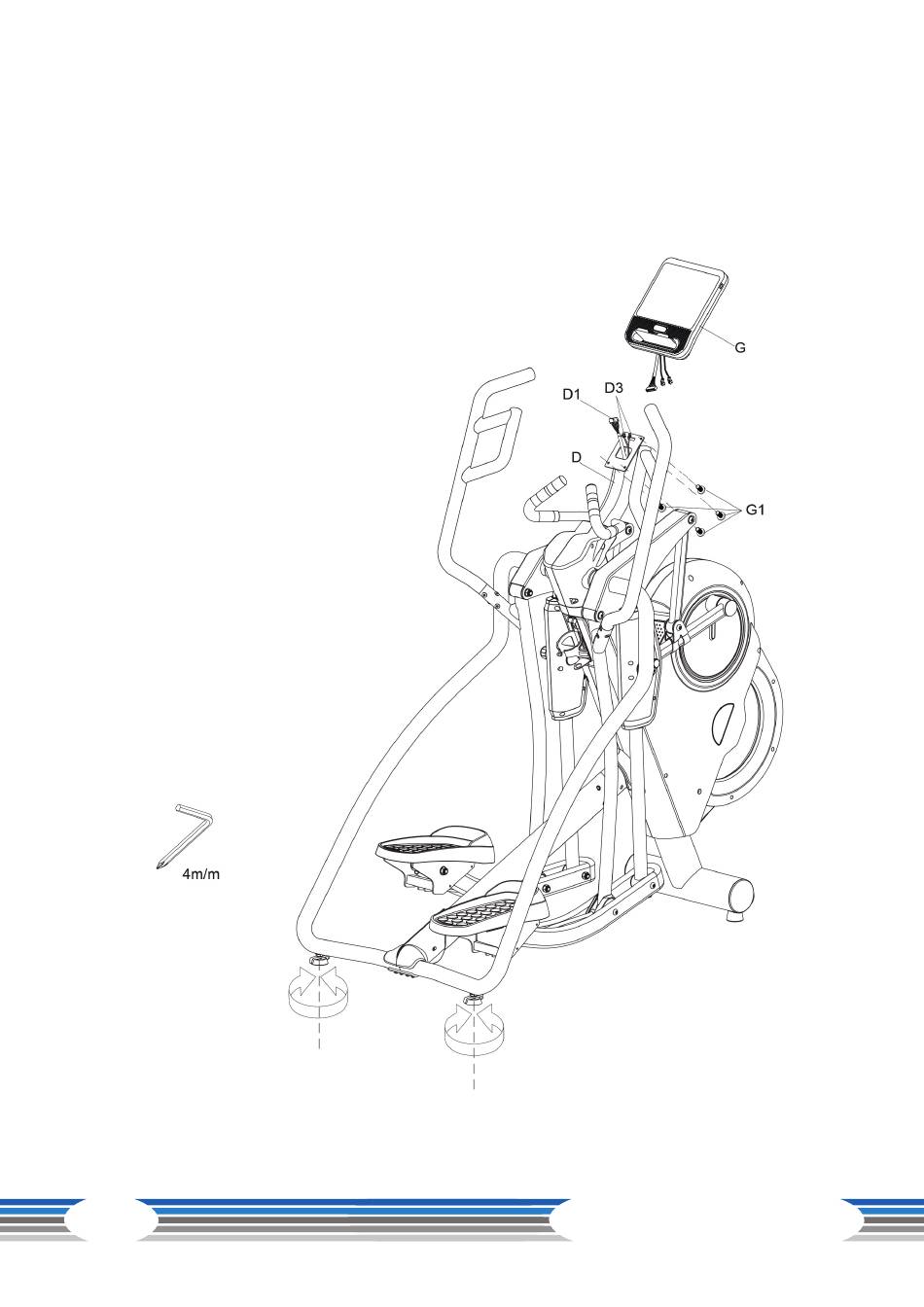

Assembly of the console
(1) Remove four screws (G1) on the back of the
console (G).
(2) Connect the console cable (D1) and pulse
cable (D3) with the fitting pieces on the console
(G). Make sure that the cables are connected
correctly. Carefully slide excess cable into the
cover and console supporting tube (D). Mount
console (G) on the console supporting tube (D)
with the screws (G1).
(3) With the help of the leveling feet on the rear
supporting foot, the equipment can be adjusted
to the floor.
EX80 Plus Touch
18
