Step 4:
Assembly of the pedal supporting tube

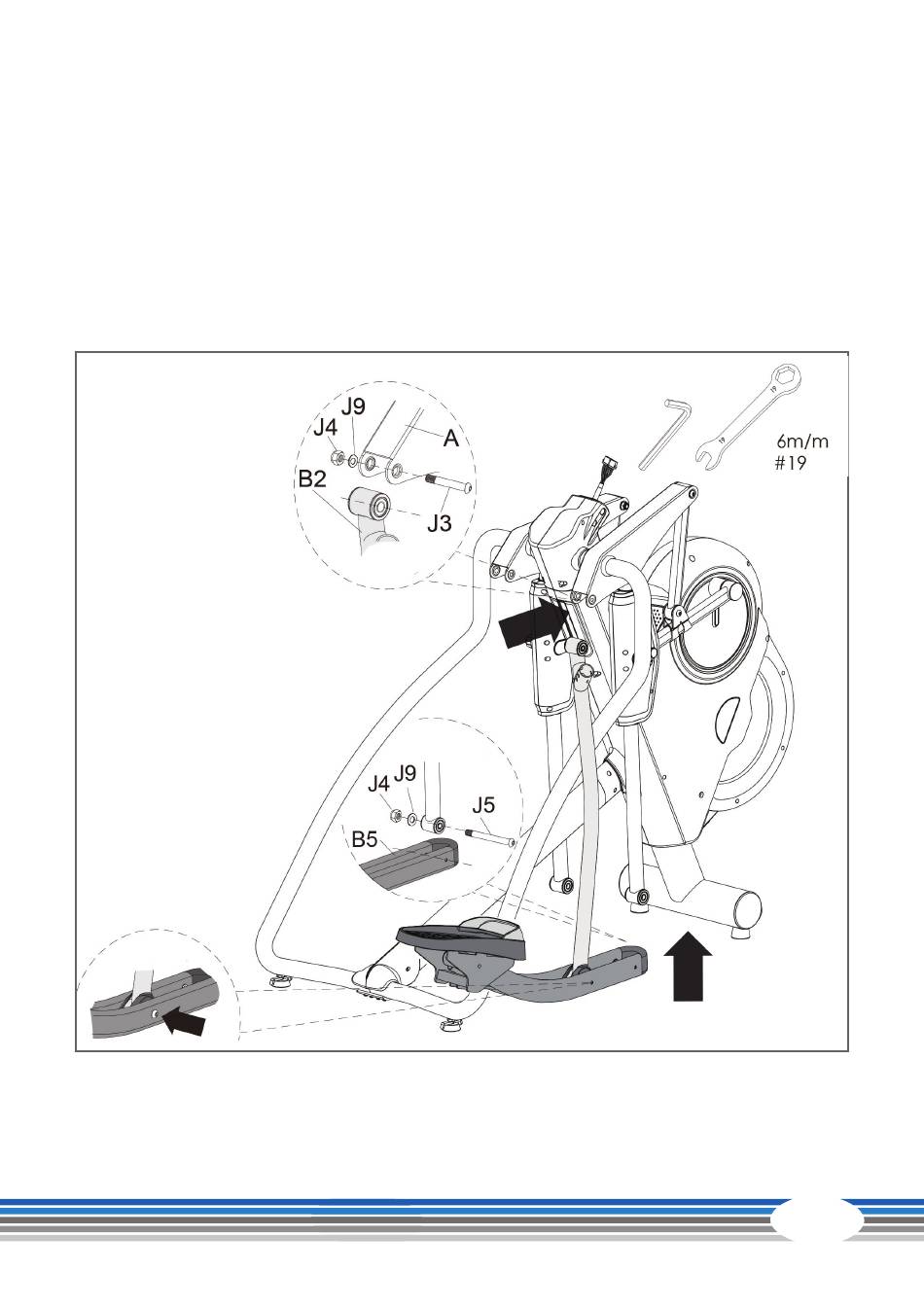

(1) See view C: Connect right pedal supporting tube (B2) with the main frame (A) and tighten with
nut (J4), washer (J9) and screw (J3).
(2) See view D: Tighten nut (J4), washer(J9) and screw (J3) after the screw (J5), washer (J9) and nut
(J4) are tight.
(3) See view E: After this, mount the tube with the pre-mounted screw (J5) and nut (J4).
(4) Repeat the same steps for the assembly of the left pedal supporting tube.
View C
View D
View E
