Step 6:

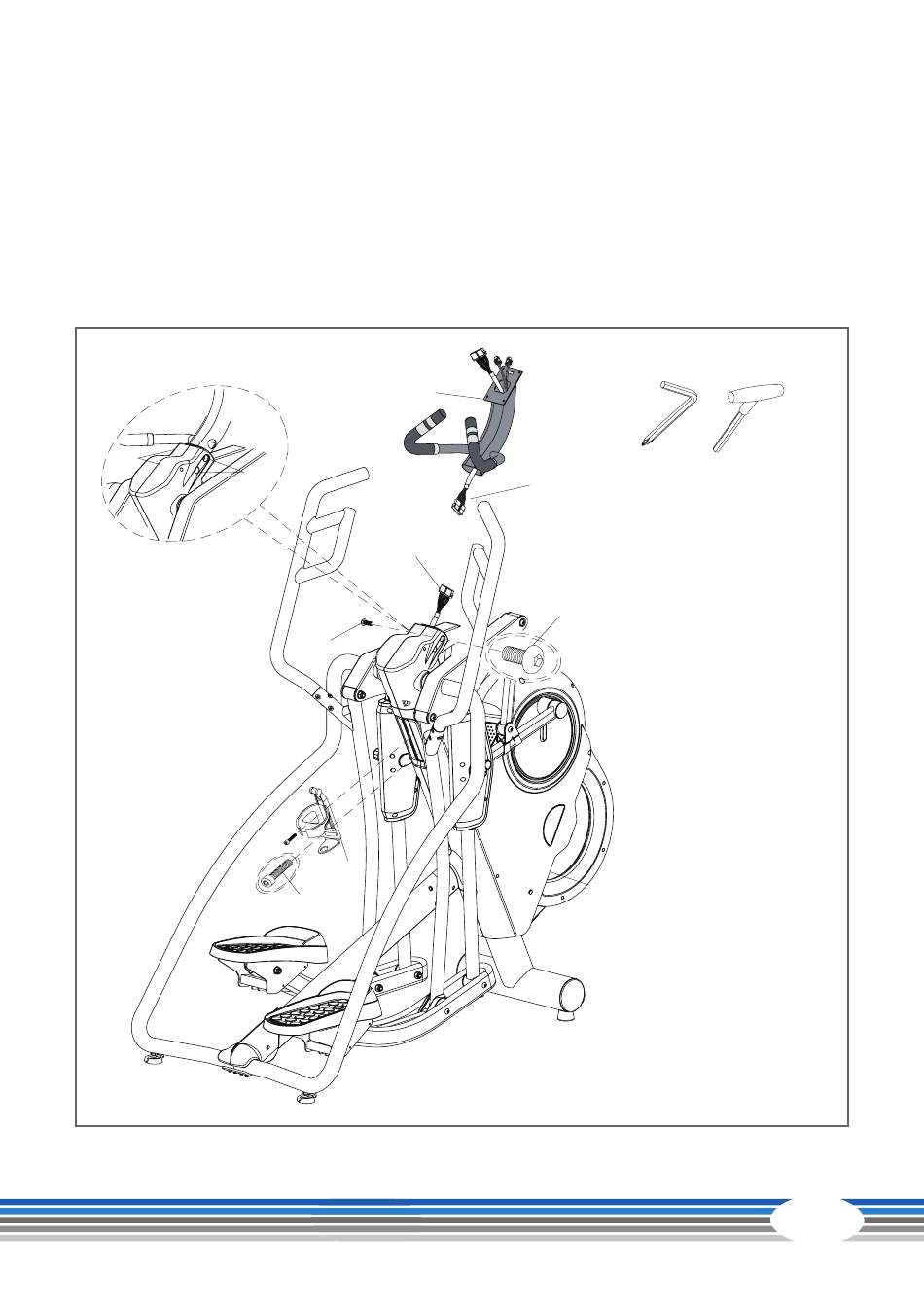

Assembly of the console supporting tube and the bottle holder
(1) Connect cable (D1) from the console supporting tube (D) with cables (A1) on the main frame (A).
(2) See view G: Mount the console supporting tube (D) on the main frame (A) with two screws (J1)
and the two pre-mounted screws (J1). Tighten four screws (J1).
(3) Mount the bottle holder (H) on the main frame (A) with screws (J6).
View G
D
4m/m
5m/m
J1
J1
D1
A1
J1
J1
H
A
J6
17
