StarTech.com UNISLDSHF192 Quick Start Manual

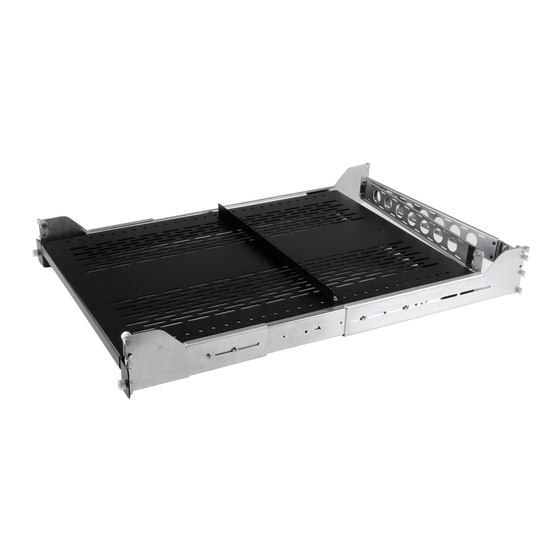

2U Vented Sliding Rack Shelf
Product ID
UNISLDSHF192 - Revision 02 or Above
UNISLDSHF19M - Revision 02 or Above
4
2
3
6
1
6
Component
1 Shelf Surface • Place Rack Equipment
• Prevents Equipment installed on the Shelf Surface from
2 Rear Stop
moving backward
Sliding Rail
• Used to attach the Sliding Shelf onto the Front
3
Assembly Front
Mounting Posts of a Rack
Bracket(x 2)
Sliding Rail
• Used to attach the Sliding Shelf onto the Rear Mounting
4 Assembly Rear
Posts of a Rack
Bracket (x 2)
• Prevents Cables from being tangled or damaged when
Cable Management
5
sliding the Shelf in or out
Arm
Locking Bracket
6 • Secures the Sliding Rail Assembly to the Rack
(x 3)
• Allows the release of the locking mechanism to retract or
Release Levers x 2
remove the Sliding Shelf from the Rails
(Not Shown)
• See Figure 3 in the Installation section
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
For additional self-service support options and community forums, please visit: www.StarTech.com/support
6
5
4
3
*Product may vary from image
Function
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/UNISLDSHF192
www.StarTech.com/UNISLDSHF19M
How to Identify the LOT Code Revision Number
The Revision Number (Rev #) appears as the fifth and sixth digits of the LOT code,
located on the sticker affixed to the product and its packaging. If the LOT code sticker
is missing, the product is Rev 01. Refer to
www.StarTech.com/UNISLDSHF19M
Requirements
• Phillips Head Screwdriver
• (Optional) Cage Nut Tool
Package Contents
• Shelf Assembly x 1
• Sliding Rail Assembly x 2
• Locking Bracket x 3
• Rear Stop x 1
• Cable Management Assembly x 1
• Cable Management Locking Bracket x 1
• M5 x 8mm Screws x 2
• M5 Nuts x 2
• M4 x 8mm Screws x 2
• Quick-Start Guide x1
Warnings!
Read the entire Quick-Start Guide and ensure the instructions are fully understood
before assembling and using this product.
Before adding equipment to this product, ensure this product has been properly
mounted.
Never operate this product if parts are missing or damaged.
Ensure the weight of the equipment does not exceed the weight capacity of the
product. If the weight capacity is exceeded, personal injury or damage to the
equipment is possible. These products can support the following weights:
UNISLDSHF192 up to 50lbs (22.7kg)
UNISLDSHF19M up to 110lbs (50kg)
All four mounting points must be properly secured to each of the posts on a four-post
rack.
Never exceed the maximum mounting depth specification for this shelf: 31.89in
(810mm).
Quick-Start Guide
www.StarTech.com/UNISLDSHF192
to download the manual for Revision 01.
Manual Revision: May 16, 2024
or
