Adjustable Depth Open Frame Wall Mount Rack
Product IDs
RK12WALLOA
RK15WALLOA
RACK-18U-20-WALL-OA
RACK-21U-20-WALL-OA
RACK-24U-20-WALL-OA

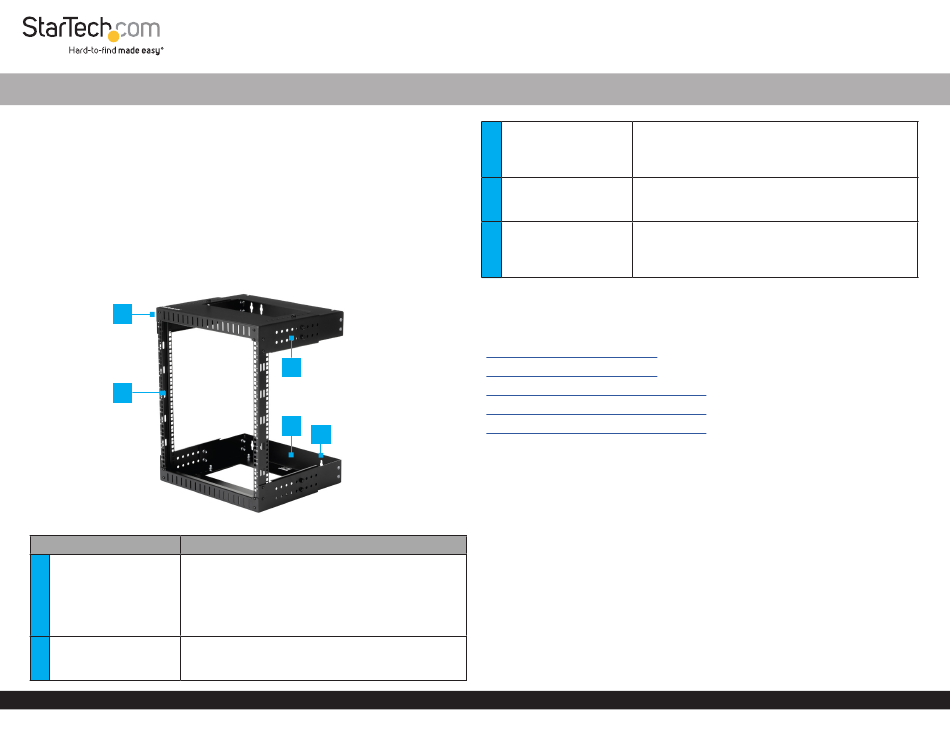

Product Diagram
Front View
1
2
Component
• Structural components of the Adjustable Depth
Rack
• The Adjustment Holes on the sides allow for
Front Horizontal
1
Brackets (x 2)
variable depth
• Assembly Screw Holes can be found at the front
and sides to attach the Mounting Posts
• Mounting Holes along the Mounting Posts allow
to mount Rack Equipment
2
Mounting Posts
• Features Square Cage Nut Holes
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
3
4
5
*Product may vary from image
Function
• Used to assemble the Front and Rear Horizontal
Brackets together
Depth Adjustment
3
Holes
• Allow for Adjustable Depth from 12 to 20 inches
(30.4 to 50.8 cm)
• Structural components of the Adjustable Depth
Rear Horizontal Brackets
Rack
4
(x 2)
• Wall Mounting Holes are located along the length
• Use to wall mount the Adjustable Depth Rack
Wall Mounting Holes
• Wall Mounting Holes are spaced 12 inches (30.48
5
(x 8)
cm) [inner holes] and 16 inches (40.64 cm) [outer
holes]
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/RK12WALLOA
www.StarTech.com/RK15WALLOA
www.StarTech.com/RACK-18U-20-WALL-OA
www.StarTech.com/RACK-21U-20-WALL-OA
www.StarTech.com/RACK-24U-20-WALL-OA
Requirements
• Phillips Head Screwdriver
• Appropriate Mounting Hardware for the Wall Type
• (Optional) Wrench
• (Optional) Cage Nut Tool
Package Contents
• Adjustable Depth Server Rack x 1
• Assembly Screws x 16
• Bolts x 24
• Washers x 24
• Quick-Start Guide x 1
Quick-Start Guide
Manual Revision: August 25, 2023 4:32 PM
Advertisement
Related Manuals for StarTech.com RK12WALLOA
Summary of Contents for StarTech.com RK12WALLOA
- Page 1 Mounting Posts • Features Square Cage Nut Holes To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support. To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support Manual Revision: August 25, 2023 4:32 PM...
- Page 2 3. Slide one of the Rear Horizontal Brackets into one of the Front Horizontal Brackets. Slide these two components together until the Required Mounting Depth StarTech.com Ltd. is not responsible for any property damage and/or personal injury has been achieved and the Adjustment Holes are aligned on the two brackets.
- Page 3 to attach this product to the wall structure or to assess the suitability of the hardware provided, please contact a professional installer. 1. Determine the target position of the Wall-Mounting Bracket, factoring in: • Wall type (i.e. drywall, wood studs, or concrete). •...
- Page 4 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
