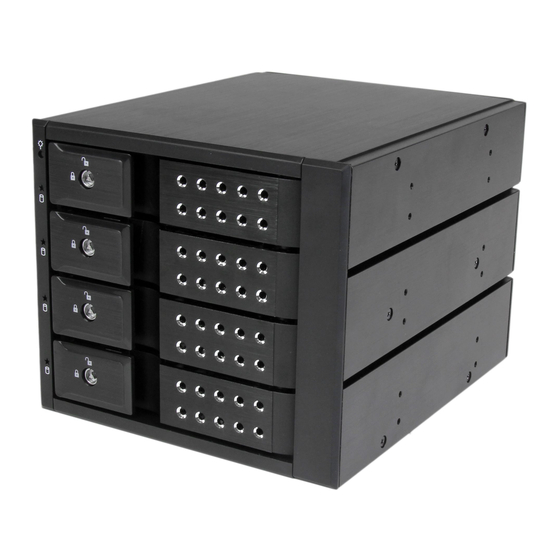

4 Drive Trayless 3.5" SATA/SAS Mobile Rack
HSB4SATSASBA
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/23/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com HSB4SATSASBA
Summary of Contents for StarTech.com HSB4SATSASBA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/23/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................2 Front View ..............................2 Rear View ..............................2 Installation ....................3 Hardware Installation ..........................3 3.5in Hard Drive Installation ........................4 3.5in Hard Drive Removal ........................5 How to Use ....................6 Connecting the Hard Drive ........................ -
Page 4: Introduction
Introduction Packaging Contents • 1x 4 Drive Trayless 3.5in SATA/SAS Mobile Rack • 8x Installation screws • 2x Drive bay keys • 4x SATA cables • 1x Instruction Manual System Requirements • 1x Computer System with SATA connectivity and three available 5.25” bays •... -
Page 5: Product Diagram
Product Diagram Front View 1. 4x 3.5” Drive bays 2. 4x 3.5” Drive bay key hole 3. 4x 3.5in LED indicators Rear View 1. 2x SATA Drive Power Connector ports 2. 4x SATA Data Connector ports 3. Hard Drive LED Enable/Disable 4. -
Page 6: Installation
2. Open your computer case (refer to the computer user manual for details), and place the 3.5in SATA/SAS HDD Backplane into four available 5.25” slots, lining up the side installation holes on the HSB4SATSASBA (pictured below), with installation holes on the 5.25” slot inside the computer. -
Page 7: In Hard Drive Installation
5.25in bays. Next, fix the HSB4SATSASBA to your 5.25in bays by screwing 4 of the included screws into any of the installation holes on both side of the 5.25” bay (8 screws in total). -
Page 8: In Hard Drive Removal
3. Insert your desired drive 4. Close the drive door. 3.5in Hard Drive Removal 1. Insert either of the included bay keys into the 3.5in Drive bay key holes depending on which type of drive you intend to install. And Turn the key clockwise into the unlock position. -
Page 9: How To Use
3. Remove your drive 4. Close the drive door. Note: It is important to eject or unmount the hard drive from your computer system before physically removing the drive. See How to Use - Disconnecting the Hard Drive section for instructions. How to Use Connecting the Hard Drive Once the drive has been installed in the drive bay, the drivers will install automatically,... -
Page 10: Led Indicator
LED Indicator The HSB2535SATBK offers 3.5in LED indicators, to enable you to monitor drive activity. The LED will flash while the hard drive is being accessed. Do not remove the enclosure from the host computer while the LED is flashing, as it could damage the drive or the enclosure, resulting in data loss. - Page 11 2. A dialog window should automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an “MBR” or “GPT” disk. GPT (GUID partition) is required for drives larger than 2TB but is not compatible with some older operating systems, while MBR is supported by newer and older operating systems.
-
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
