ISO154xEVM Layout
4
ISO154xEVM Layout

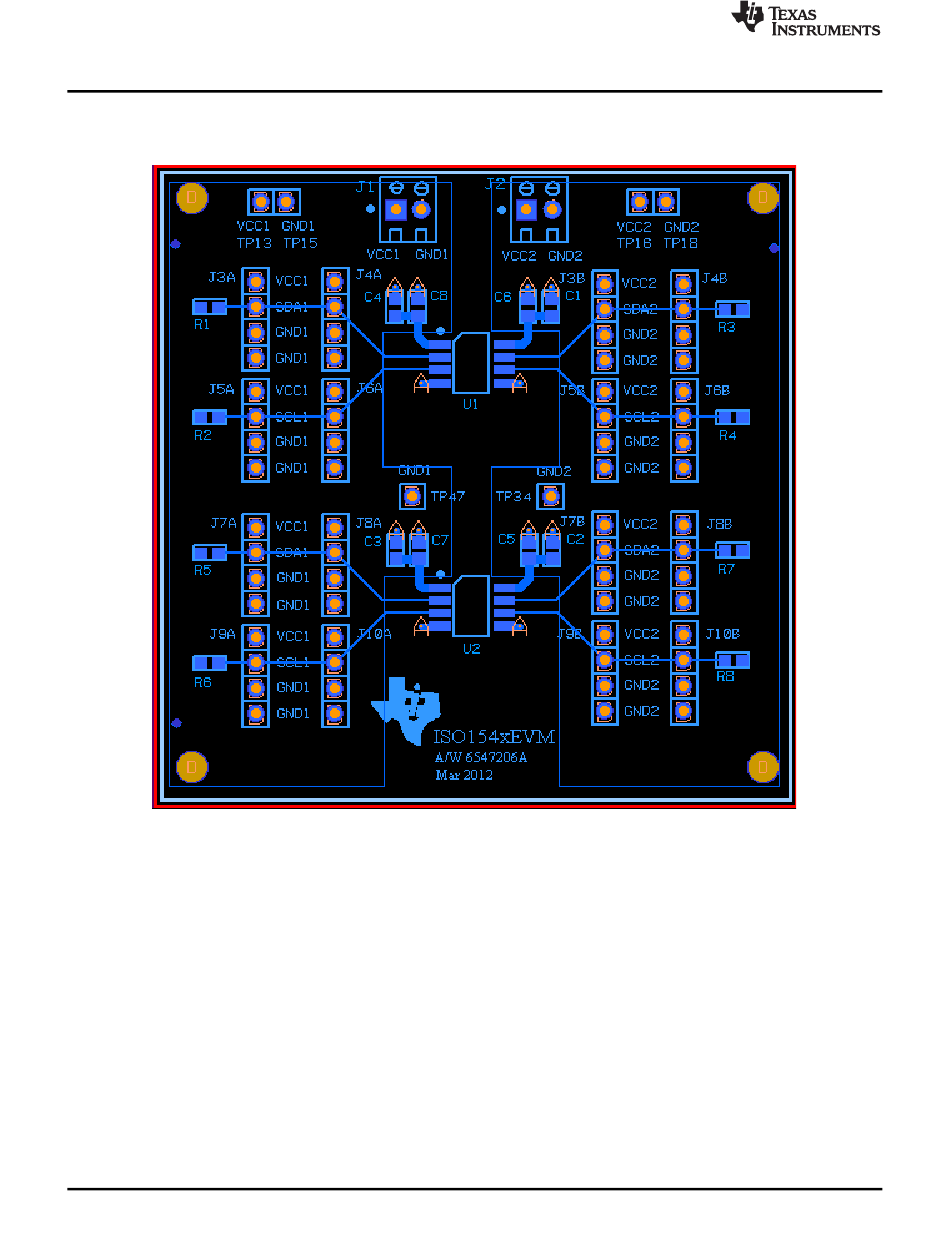

Figure 7
shows the top-layer routing of the ISO154xEVM.
10
ISO154xEVM Low-Power Bidirectional I
Figure 7. ISO154xEVM Top-layer Routing
2
C Isolators Evaluation Module
Copyright © 2012, Texas Instruments Incorporated
www.ti.com
SLLU166 – June 2012
Submit Documentation Feedback
