www.ti.com
EVM User's Guide: ISOTMP35BEVM
ISOTMP35 Evaluation Module
Description
ISOTMP35
is the industry's first isolated temperature
sensor IC, and provides an analog output voltage
proportional to Centigrade temperature with a 10
mV/°C positive slope gain. This user's guide details
through the steps to operate the
evaluation module, designed to evaluate the isolated

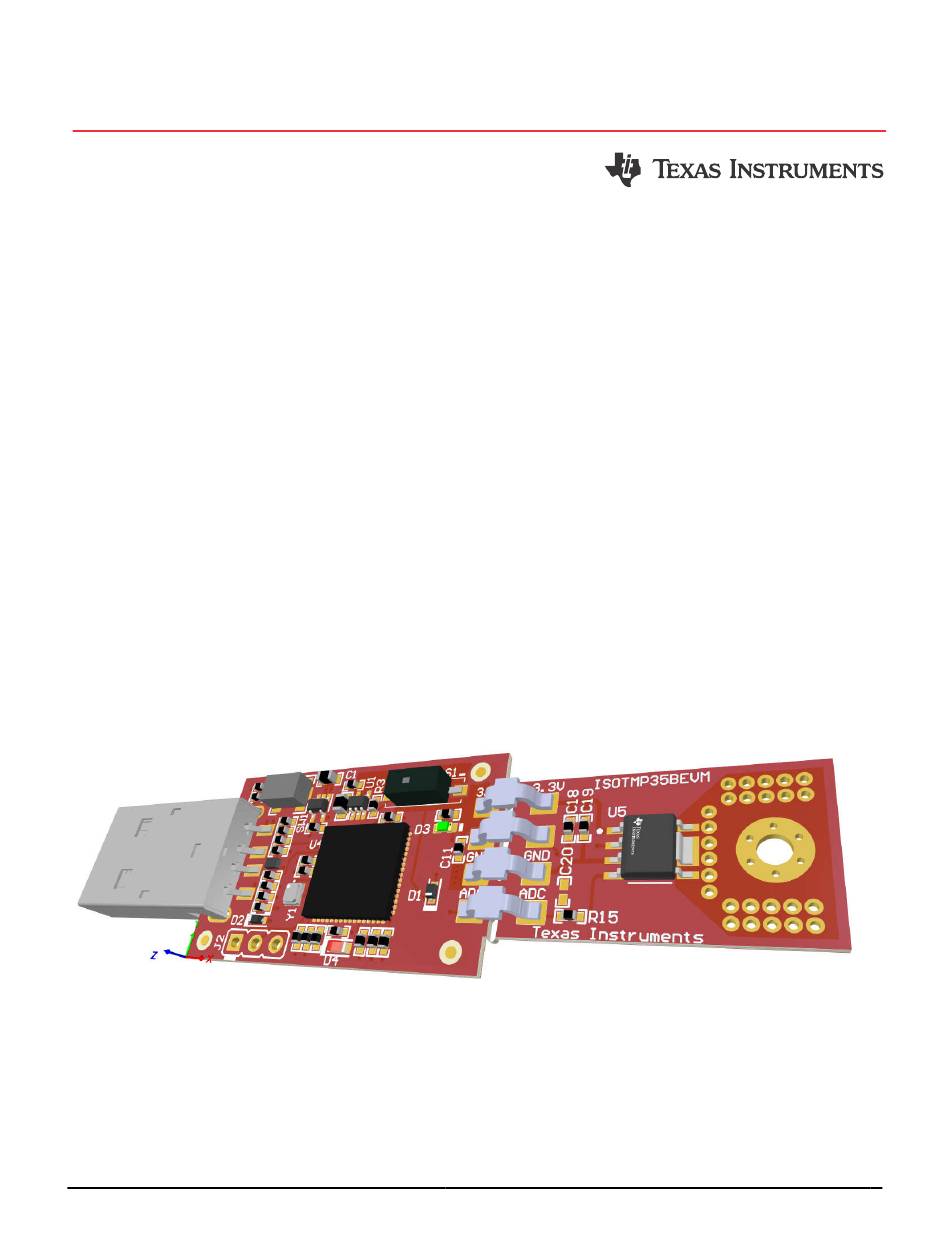

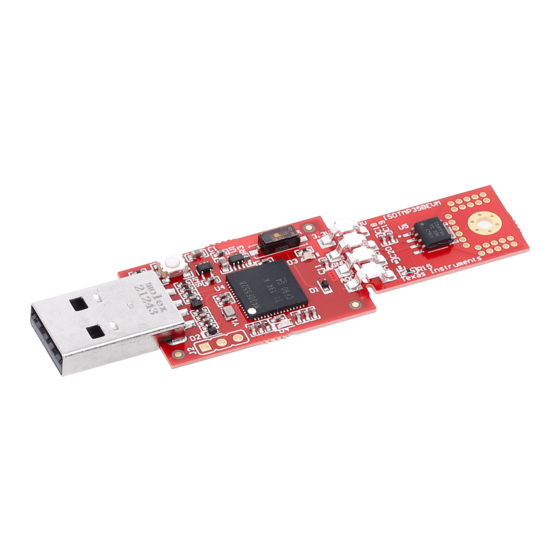

temperature sensor. ISOTMP35BEVM also features a
detachable breakable ISOTMP35 temperature sensor
board portion and a screw hole for easy attachment to
a high-voltage bus bar or power MOSFET.
Get Started
1.
Order ISOTMP35BEVM
2. Connect EVM to computer
3. Go to the
ISOTMP35 Gallery page
to either download the GUI or run on the web
4. Detach breakable sensor PCB section (optional)
5. Refer to
ISOTMP35 data sheet
6. Visit our E2E forums for support or
SBOU312 – AUGUST 2023
Submit Document Feedback
ISOTMP35BEVM
evaluation module
on dev.ti.com
for IC details
questions
ISOTMP35BEVM
Copyright © 2023 Texas Instruments Incorporated
Features
•
Easy to use cloud-based
web or can downloaded for offline use
•
ISOTMP35 isolated temp sensor IC with
electrically isolated thermal connection
•
Breakable ISOTMP35 sensor board
•
Back side copper plane with screw hole allows HV
bus bar connection and good thermal conductivity
•
Data logging using MCU integrated ADC
Applications
•
EV charging infrastructure
–
AC charging (pile) station
–
DC fast charging station
–
DC wallbox charger
–
DC fast charging power module
•
Solar Energy
–
String inverter
•
Hybrid, electric & powertrain systems
–
HEV/EV on-board charger (OBC)
–
HEV/EV DC/DC converter
–
HEV/EV inverter & motor control
•
Energy storage systems
–
Power conversion system (PCS)
•
Rack & server power
Description
GUI
is available on the
ISOTMP35 Evaluation Module
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments ISOTMP35
Summary of Contents for Texas Instruments ISOTMP35
- Page 1 IC, and provides an analog output voltage web or can downloaded for offline use proportional to Centigrade temperature with a 10 • ISOTMP35 isolated temp sensor IC with mV/°C positive slope gain. This user's guide details electrically isolated thermal connection through the steps to operate the ISOTMP35BEVM •...
-
Page 2: Kit Contents
The sensor section can be separated from the microcontroller section. Then, the sensor side of the EVM must be reconnected to the microcontroller side to operate the ISOTMP35 in a high temperature or high voltage environment. The EVM has a bottom-side copper plate that can be glued or screwed onto a high voltage heat source for easy user evaluation. - Page 3 Evaluation Module Overview 1.5 General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines WARNING Always follow TI’s setup and application instructions, including use of all interface components within their recommended electrical rated voltage and power limits. Always use electrical safety precautions to help make sure your personal safety and those working around you.
- Page 4 RC Filter Res (R15) ADC Input (15pF) Analog Out 100pF RC Filter Cap (C20) ADC Input Cap (C17) Figure 2-3. ISOTMP35BEVM Board Block Diagram ISOTMP35 Evaluation Module SBOU312 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 5 The ISOTMP35BEVM includes LEDs to indicate the board status; the green LED D3 illuminates when voltage is supplied to the 3.3V net. The 3.3V net is connected directly to pin 1 of the ISOTMP35. U1 is the onboard regulator which supplied the 3.3V net, and is enabled and disabled by switch S1. For normal operation of the EVM, S1 must be enabled.
-
Page 6: Pushbutton Switch
On the sensor breakout board, R15 and C20 can be used for an optional RC circuit to filter the voltage output of the ISOTMP35. R15 is already installed on the board, but is a 0 Ohm jumper so acts as a short. C20 is not installed by default. -
Page 7: Software Download
Software 3 Software The ISOTMP35BEVM software allows a user to read temperature from the ISOTMP35 by using the MSP430F5528. The analog output voltage is read by the microcontroller and converted to displayed temperature in software. Once the EVM hardware is connected to the GUI, temperature is sampled automatically once the user navigates to the Data Capture tab. - Page 8 The SAVE START and SAVE STOP buttons enable the user to log the EVM temperature results in a .csv file. When SAVE START is selected, the file begins downloading, and downloading ends when SAVE STOP is selected. ISOTMP35 Evaluation Module SBOU312 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 9 The Collateral tab contains links to relevant sites and documentation for the EVM. This includes links to the EVM user's guide, the ISOTMP35 data sheet, the tool page on http://www.ti.com, any application notes, compliance documentation, and any other relevant literature.
- Page 10 0.47uF 0.47uF 0.47uF 6.3V 6.3V 6.3V VBUS = 5V INPUT 0.1uF 0.1uF 0.1uF VUSB = 3.3V OUT VUSB 12mA Max Figure 4-1. ISOTMP35BEVM Schematic ISOTMP35 Evaluation Module SBOU312 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 11: Pcb Layout
Hardware Design Files 4.2 PCB Layout Figure 4-2 Figure 4-3 show the EVM PCB layout images. Figure 4-2. Top View Figure 4-3. Bottom View SBOU312 – AUGUST 2023 ISOTMP35 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 12 RES, 1.50 k, 1%, 0.063 W, AEC-Q200 Grade 0, 0402 0402 RMCF0402FT1K50 Stackpole Electronics Inc 0402 ERJ-2GEJ470X Panasonic RES, 47, 5%, 0.1 W, AEC-Q200 Grade 0, 0402 ISOTMP35 Evaluation Module SBOU312 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 13 Texas 8KB RAM, USB, 12Bit ADC, 2 USCIs, 32Bit HW MPY, Instruments RGC0064B (VQFN-64) PISOTMP35BDFQR SOIC7 Texas Instruments Crystal, 24 MHz, SMD 2x1.6mm MuRata SBOU312 – AUGUST 2023 ISOTMP35 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 14 Google LLC. Firefox ® is a registered trademark of Mozilla Foundation. All trademarks are the property of their respective owners. ISOTMP35 Evaluation Module SBOU312 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 15 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 16 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 17 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 18 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 19 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
-
Page 20: Important Notice
TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
