IWR1642 Evaluation Module (IWR1642BOOST)
The IWR1642 BoosterPack™ from Texas Instruments™ is an easy-to-use evaluation board for the
IWR1642 mmWave sensing device, with direct connectivity to the microcontroller (MCU) LaunchPad™
Development Kit. The BoosterPack contains everything required to start developing software for on-chip
C67x DSP core and low-power ARM
debugging as well as onboard buttons and LEDs for quick integration of a simple user interface.
1
1.1
1.2
1.3
......................................................................................................................
2
2.1
2.2
2.3
2.4
2.5
2.6
2.7
3
3.1
3.2
4
5
6
7
Trademarks
BoosterPack, Texas Instruments, LaunchPad, Code Composer Studio are trademarks of Texas
Instruments.
ARM is a registered trademark of ARM Limited.
Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the property of their respective owners.
SWRU521A - May 2017 - Revised December 2017
Submit Documentation Feedback
Single-Chip mmWave Sensing Solution
R4F controllers, including onboard emulation for programming and
®
...............................................................................................................
..........................................................................................................
.......................................................................................................
..........................................................................................................
.......................................................................................................
.................................................................................................
..........................................................................................................
.....................................................................................................
.............................................................................................................
...................................................................................
.........................................................................................
...........................................................................................................
.............................................................................................
....................................................................................................
............................................................................................................
IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave
Copyright © 2017, Texas Instruments Incorporated
SWRU521A - May 2017 - Revised December 2017
Contents
...........................................................
........................................................................
User's Guide
2
2
2
2
3
5
6
6
10
............................
11
11
13
15
15
15
16
16
17
17
1
Sensing Solution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BoosterPack IWR1642BOOST and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments BoosterPack IWR1642BOOST

  • Page 1: Table Of Contents

    IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing Solution The IWR1642 BoosterPack™ from Texas Instruments™ is an easy-to-use evaluation board for the IWR1642 mmWave sensing device, with direct connectivity to the microcontroller (MCU) LaunchPad™ Development Kit. The BoosterPack contains everything required to start developing software for on-chip...
  • Page 2: Getting Started

    Getting Started Introduction The IWR1642 BoosterPack from Texas Instruments is an easy-to-use evaluation board for the IWR1642 mmWave sensing device, with direct connectivity to the microcontroller (MCU) LaunchPad Development Kit. The BoosterPack contains everything required to start developing software for on-chip C67x DSP core and low-power ARM R4F controllers, including onboard emulation for programming and debugging as well as onboard buttons and LEDs for quick integration of a simple user interface.
  • Page 3: Hardware

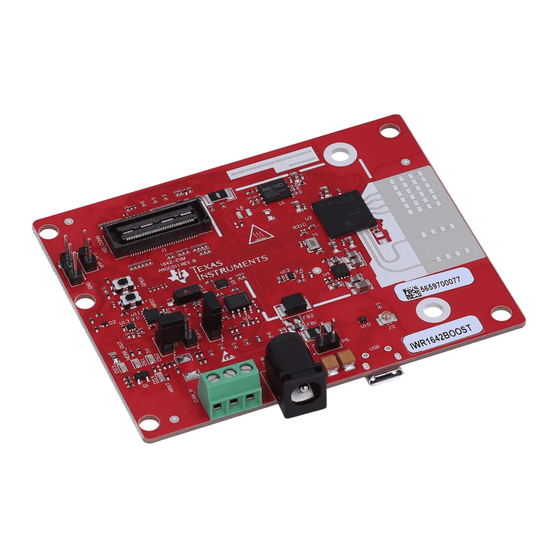

    Figure 2 show the front and rear view of the EVM, respectively. Figure 1. EVM (Front) SWRU521A – May 2017 – Revised December 2017 IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 4 Hardware www.ti.com Figure 2. EVM (Rear) IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave SWRU521A – May 2017 – Revised December 2017 Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 5: Block Diagram

    EN Control PGOOD Signal to From the MCU MCU for Power Sequencing Copyright © 2017, Texas Instruments Incorporated Figure 3. Block Diagram SWRU521A – May 2017 – Revised December 2017 IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing Solution Submit Documentation Feedback...
  • Page 6: Power Connections

    3V3 and 5-V signal marking on the boards. Figure 5. 20-Pin BoosterPack Connectors IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave SWRU521A – May 2017 – Revised December 2017 Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 7 IWR device and save power. The power up of the PMIC takes approximately 5 ms once the enable signal is made high. SWRU521A – May 2017 – Revised December 2017 IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 8 HD connector, and Table 3 provides the connector information. Figure 6. HD Connector IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing SWRU521A – May 2017 – Revised December 2017 Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 9 Because the I/Os are not failsafe, the MCU must not drive any I/O signals to the IWR device before this I/O supply is stable to avoid leakage current into the I/Os. SWRU521A – May 2017 – Revised December 2017 IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 10: Pc Connection

    COM ports, users must install the EMU pack available at ® Emulation Software Package. IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave SWRU521A – May 2017 – Revised December 2017 Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 11: Connecting The Boosterpack To The Launchpad Or The Mmwave-Devpack

    Figure 9 shows the PCB antennas. SWRU521A – May 2017 – Revised December 2017 IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 12 (H-plane Phi = 0 degrees) and elevation plane (E-plane Phi = 90 degrees) is shown by Figure Figure 10. Antenna Pattern IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave SWRU521A – May 2017 – Revised December 2017 Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 13: Jumpers, Switches, And Leds

    011 (SOP mode 2) = dev SOP 0 mode Figure 11 shows the SOP jumpers. Figure 11. SOP Jumpers SWRU521A – May 2017 – Revised December 2017 IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 14 Glows if there is any HW error in the IWR Nerr_OUT device GPIO_1 Glows when the GPIO is logic-1 IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave SWRU521A – May 2017 – Revised December 2017 Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 15: Design Files And Software Tools

    (SDK) that includes demo codes, software drivers, emulation packages for debug, and more. These can be found at mmwave-sdk. SWRU521A – May 2017 – Revised December 2017 IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 16: Mechanical Mounting Of Pcb

    All ESD precautions must be taken while using and handling the EVM. IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave SWRU521A – May 2017 – Revised December 2017 Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 17: Regulatory Information

    EVM, the EVM LEDs will not turn on. See Section 2.7.3 for LED information. SWRU521A – May 2017 – Revised December 2017 IWR1642 Evaluation Module (IWR1642BOOST) Single-Chip mmWave Sensing Solution Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 18 Added The peak output power with the antenna gain is < 55 dBm EIRP, as required by the European regulations ....................• Added Regulatory Conformity section Revision History SWRU521A – May 2017 – Revised December 2017 Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
