Wide Area Module Configuration
When configuring WAN Interface Port Modules (WPIMs) with QuickSET , the Wide
NOTE
Area configuration window that displays corresponds to the specific model of WPIM
that is installed in your CyberSWITCH. The HSIM-W84 and CSX500 always employ
four WPIM-T1 WAN interfaces.
Refer to the appropriate section listed below to configure your Wide Area 1 (or 2 if applicable) Port
Interface Module:

Wide Area T1 Configuration Window

Wide Area E1 Configuration Window
Wide Area DI Configuration Window
Wide Area Synchronous Configuration Window
Wide Area DDS Configuration Window
Wide Area HDSL Configuration Window
Wide Area T1 Configuration Window

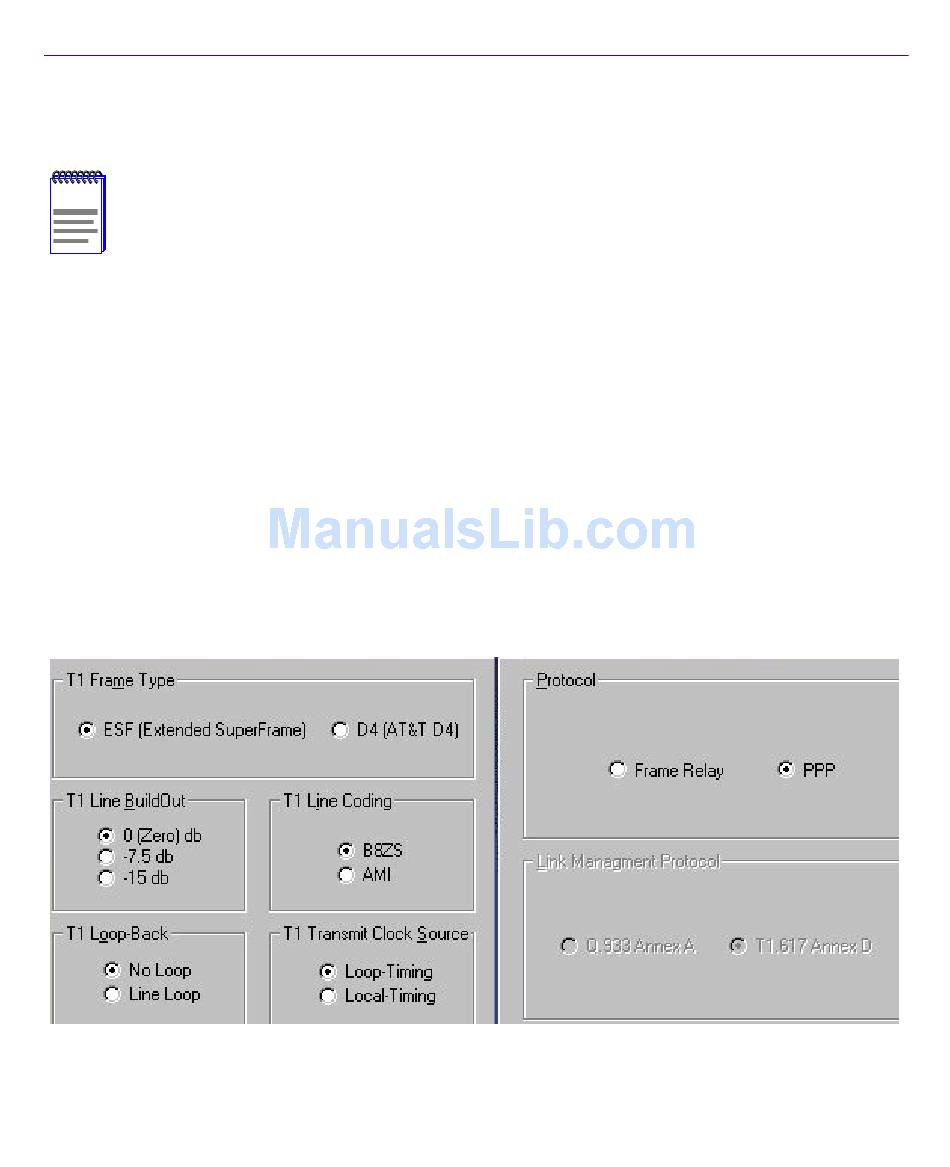

The Wide Area T1 configuration window is shown in
QuickSET Configuration Guide
Figure 8 Wide Area T1 Configuration Window

Wide Area Module Configuration

Figure 8, below.
