Configuration with QuickSET
If a neighboring router has become inactive (Hello packets have not been seen for
Poll Interval —
[Router Dead] seconds, it may still be necessary to send Hello packets to the dead neighbor. These
Hello packets will be sent at the reduced rate [Poll Interval], which should be much larger than
Hello interval. Typical Poll Interval for an X.25 network is 120 seconds.
Retransmit Interval — The number of seconds between the retransmission of Link-State
Advertisements.
The length of time in seconds between the Hello packets that the router sends
Hello Interval —
on this interface, advertised in Hello packets sent out of this interface.
The number of seconds before the router's neighbors will declare it
Router Dead Interval —
down, when they stop hearing the router's Hello packets.

OSPF Redistribute Routes

Clicking the OSPF Redistribute Routes button lets you access the OSPF Redistribute Routes
window shown below in Figure 144.

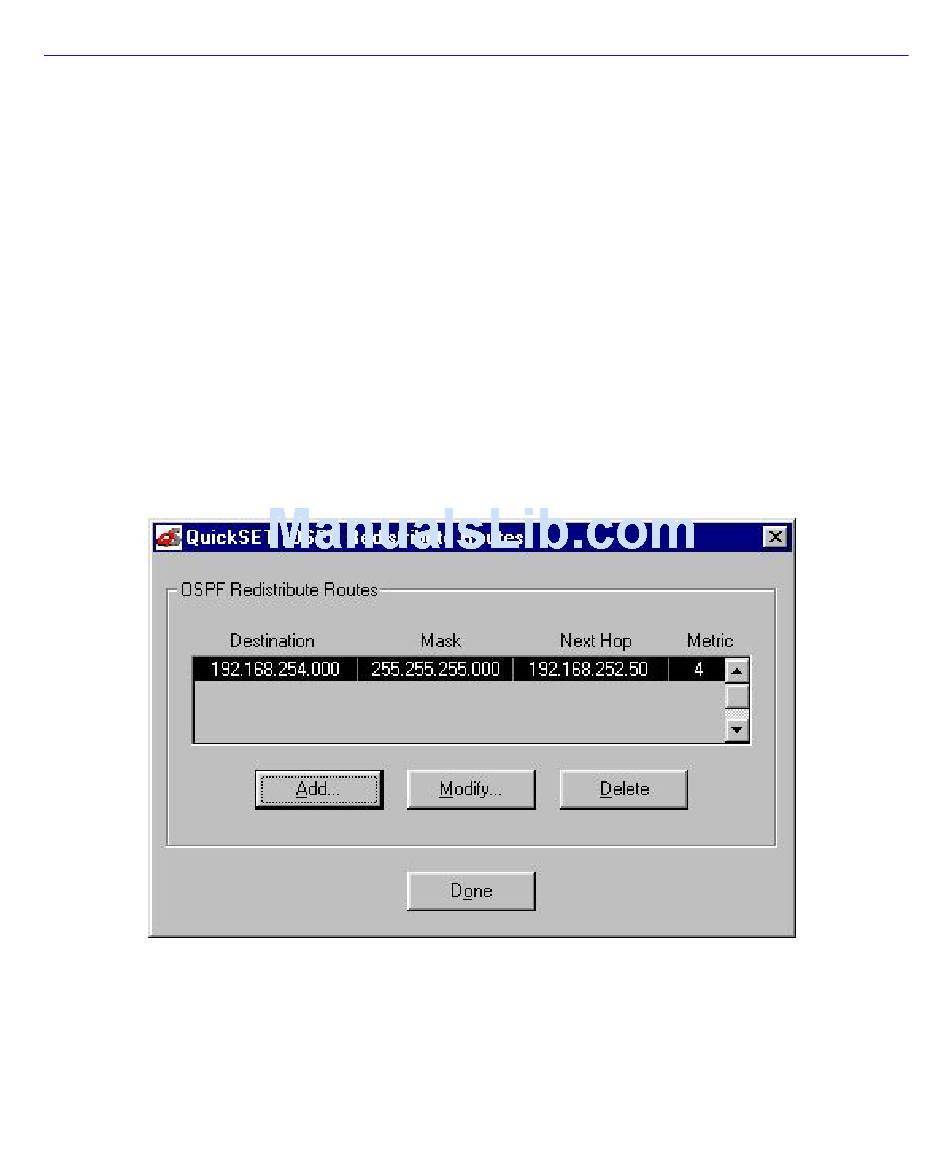

Figure 144 OSPF Redistribute Routes
The Redistribute Routes function lets you "leak" RIP, or static routes (external routes) into an
OSPF domain. (Routes that originate from other routing protocols, or different OSPF processes,
and are injected into OSPF via redistribution are called external routes). The external route is
distributed throughout the domain via the OSPF update mechanism.
134 QuickSET Configuration Guide
