Configuration with QuickSET

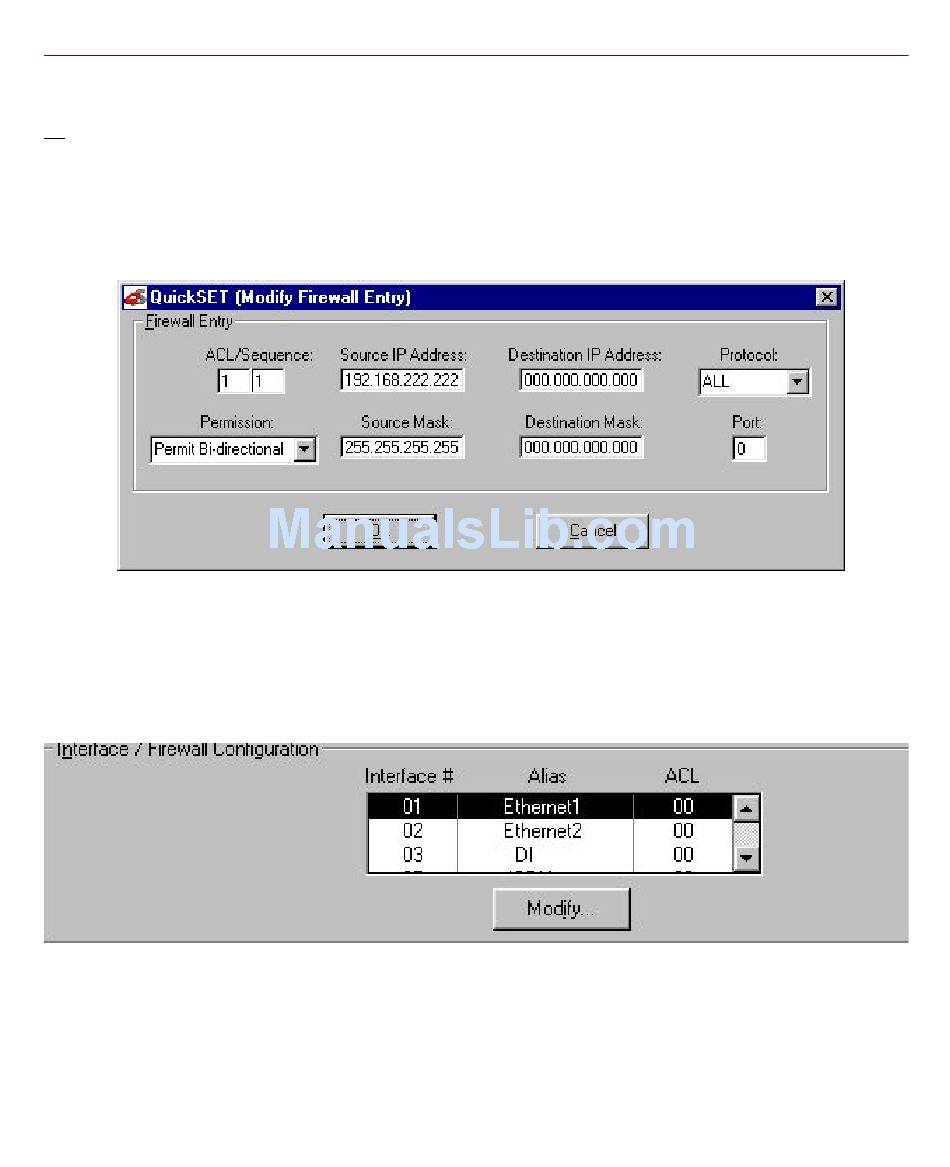

The Modify Firewall Entry window (shown below in Figure 127) appears when you click on the
Modify button on the Firewall Entries panel (upper half) of the Firewall Configuration Window.
Use your mouse or the Tab key to navigate through the data fields. Click OK when you have
finished entering the data. Your modified firewall entry will appear in the Firewall Configuration
Window.
Figure 127 Modify Firewall Entry Window
Use the Interface/Firewall Configuration panel (lower half of Firewall window, shown in
Figure 128) to assign an Interface Number and an alias to an existing ACL list.
Figure 128 Interface/Firewall Configuration Panel
Click the Modify button on the Interface/Firewall Configuration panel (shown above) to display
the Modify ACL Window (Figure 129 on the following page). Use the Modify ACL Window to
make changes to interface number and alias for the selected Access Control List number in the
right column.
