StarTech.com SV565HDIP Quick Start Manual

HDMI® KVM Extender | 4K 30Hz | 328 ft. (100 m)

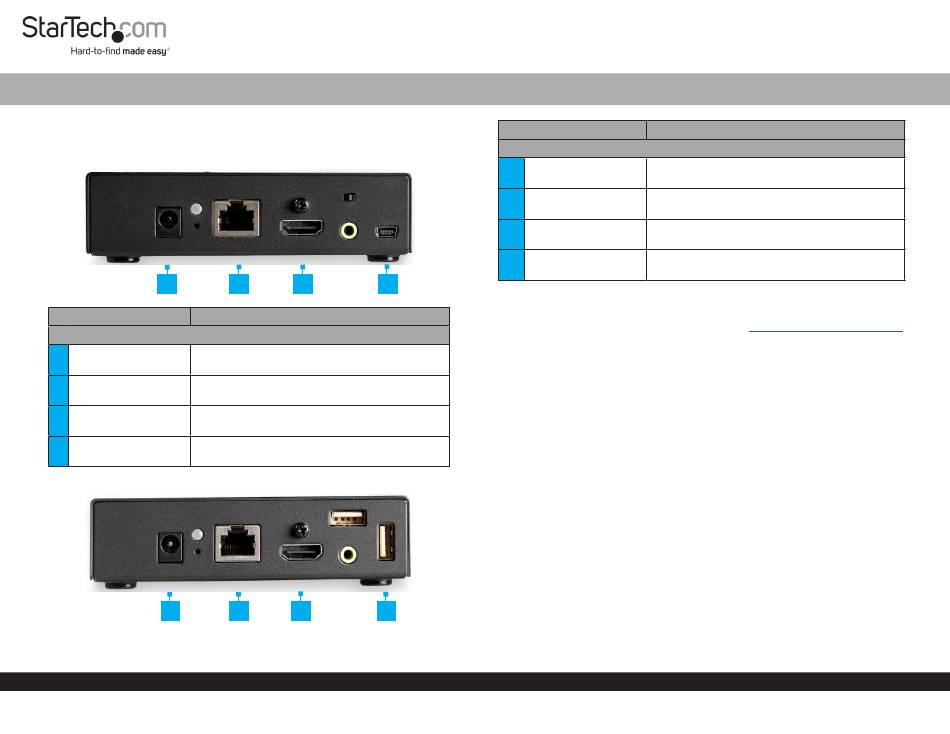

Product Diagram (SV565HDIP)

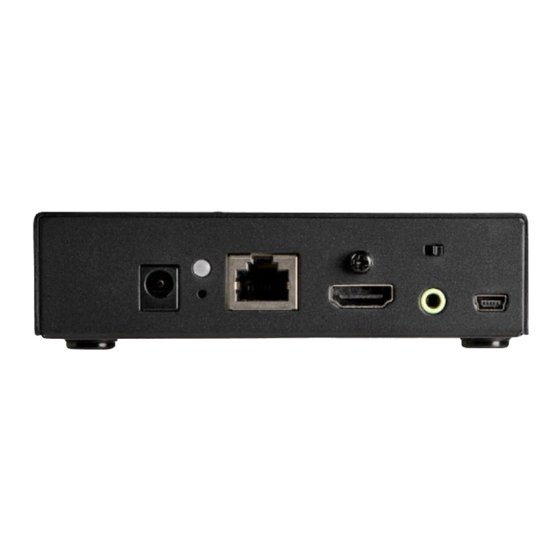

Transmitter
1
Port
• Used to connect the Universal Power Adapter
1 Power Port
to the Transmitter.
• Used to connect the Transmitter to the
2 RJ45 Port
Receiver.
• Used to connect a Video Source Device to the
3
HDMI Port
Transmitter.
• Used to connect the Host Computer or KVM
4 Mini USB Port
Switch to the Transmitter.
Receiver
5
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4
2 3
Function
Transmitter
7
6 8
Port
• Used to connect the Universal Power Adapter
5
Power Port
• Used to connect the Receiver to the
6 RJ45 Port
• Used to connect a Display Device to the
7 HDMI Port
• Used to connect a USB Keyboard and/or
8
USB-A Port x 2
Requirements
For latest requirements and full product manual, visit www.startech.com/SV565HDIP.
Installation
Transmitter
1. Connect an HDMI Cable to the HDMI Port on the Transmitter and to an HDMI port
on the Host Computer, KVM Switch, or Video Source Device.
2. Connect a USB-A to Mini B Cable to the Mini USB Port on the Transmitter and to a
USB port on the Host Computer or KVM Switch.
3. Depending on the configuration of your devices use one of the connection methods
below:
• Direct connection: Connect a CAT5e/6 Cable to the RJ45 Port on the
Transmitter and connect the other end to the RJ45 Port on the Receiver.
• Indirect connection: Connect the CAT5e/6 Cable to an RJ45 Port on a Wall
Receptacle (pre-wired), or an Ethernet Switch.
4. Connect the Universal Power Adapter to the Power Port on the Transmitter and
to an AC Electrical Outlet.
Quick-Start Guide
Function
Receiver
to the Receiver.
Transmitter.
Receiver.
Mouse to the Receiver.
Manual Revision: September 26, 2019 2:09 PM
