Summary of Contents for StarTech.com SV565FXDUSA

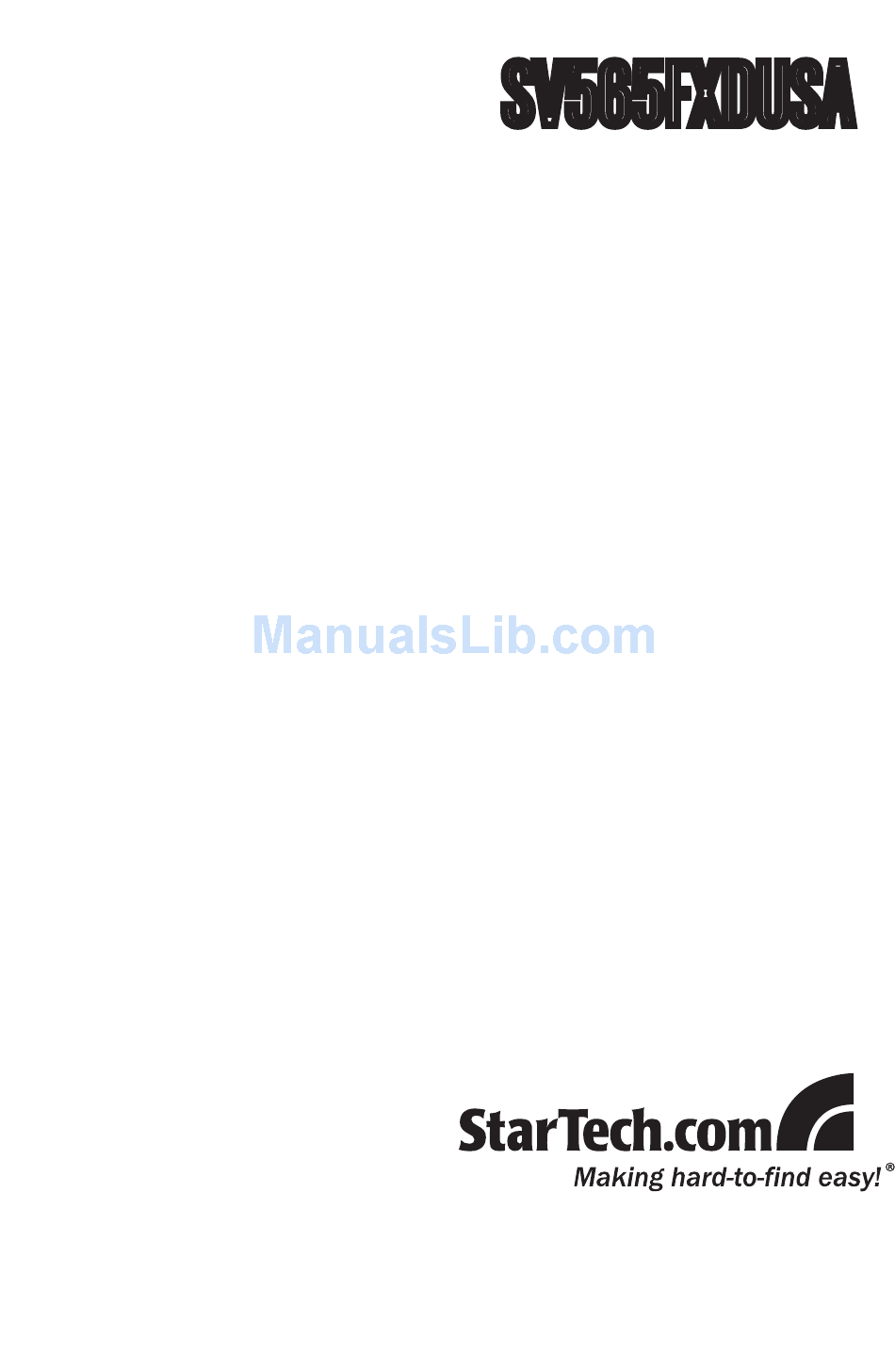

- Page 1 SV565FXDUSA Instruction Manual KVM Console Extender USB, DVI KVM Console Extender with Serial and Audio over Multi-Mode Fiber - 2km...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Front View ..................2 Rear View ..................2 Installation ............... 3 Preparing Your Site ..............3 Installing the Computer Unit ............4 Installing the Console Unit ............4 Driver Installation .................5 Using the KVM Extender ..........6 Using the Computer Unit .............6 Mask Hotkey Switch ..............7 Using the Console Unit ..............9... -
Page 4: Introduction
Introduction The StarTech.com USB, DVI, serial and audio KVM Console Extender lets you control a server, computer or multiple computers (through a KVM switch) over a multi-mode fiber link, at distances of up to 2000m (6562 ft). By transmitting the digital DVI video (or HDMI with a DVI-to-... -
Page 5: Front View
Front View Serial Tx/Rx Selection Status LEDs Selection button Rear View Computer USB Console 3.5mm connector Audio connectors SC fiber Console Computer connectors Serial port Serial port Console DVI Computer DVI Mask Hotkey connector connector switch Console USB Computer 3.5mm keyboard/mouse Audio connectors connectors... -
Page 6: Installation
Installation Preparing Your Site Before you can install the product, you need to prepare your site. Determine where the host computer will be located and set up the computer. Determine where the console devices (mouse, keyboard, monitor) will be located and place them appropriately. a) If you are using surface cabling, ensure you have enough Multi- Mode Fiber network cabling to connect the Computer Unit to the Console Unit’s location, and that each end is terminated with an... -
Page 7: Installing The Computer Unit
“Console” on the Computer Unit. Connect the power adapter from an AC electrical outlet to the unit. Using the provided StarTech.com USB, DVI, Audio KVM cable, connect the Host computer system to the KVM Extender’s “Computer” connectors. Reconnect any necessary peripheral devices to the Host computer, removed in Step 2. -
Page 8: Driver Installation
OPTIONAL: If connecting a computer system to the Console Unit, switch off the computer and disconnect any existing devices. Using the provided StarTech.com integrated USB, DVI, Audio KVM cable, connect the computer system to the Console Unit’s “Computer” connectors. Reconnect any necessary peripheral devices to the Host computer, removed previously. -
Page 9: Using The Kvm Extender
Using the KVM Extender This section details how to use your KVM extender at both the local and remote locations. Using the Computer Unit The Computer Unit allows users connected to the Computer and Console units to share control of devices (computers, KVM Switches) connected to it. -
Page 10: Mask Hotkey Switch
Mask Hotkey Switch The Mask Hotkey switch on the rear panel of both the Computer and Console Units is a feature for use when a KVM switch is being used. Setting the switch to ON or OFF will Mask (disable) the units built in hotkey detection, allowing the controls keys to be sent directly to the KVM switch. - Page 11 With Compatibility Standard Command Description Mode Enabled Sets the interval of inactivity in seconds that the Computer Unit will wait before returning [Ctrl] - [Ctrl] - [F3] [Ctrl] - [Ctrl] - [E] - [F3] to Auto Mode after a Unit has assumed control Beep Codes Some of the keyboard command sequences you issue to the Computer...
-
Page 12: Using The Console Unit
Using the Console Unit The Console Unit allows a user at the Console Unit to assume control of devices connected to the Computer Unit (Computer A), if the Computer Unit is set to Auto or Remote mode. It also permits the user at the Console Unit to use any directly connected system (Computer B) as though the KVM Extender was transparent. - Page 13 With Compatibility Mode Standard Command Description Enabled Switches control to [Ctrl] - [Ctrl] - [1] [Ctrl] - [Ctrl] - [E] - [1] Computer B Switches control to Computer A (input [Ctrl] - [Ctrl] - [2] [Ctrl] - [Ctrl] - [E] - [2] allowed only if the Computer Unit is in Remote or Auto mode)
-
Page 14: Serial Device Setup
Serial Device Setup This KVM Extender provides DB9 serial ports on both the Computer and Console Units, which can be connected to serial devices such as POS, Barcode Scanners, Card Readers, and Touch screens. The KVM Extender units provide a passageway for data transmission without any baud rate limitation or configuration required. -
Page 15: Specifications
Specifications 2 x SC fiber 1 x DC Power Console: 1 x 29-pin DVI-I female 1 x DB9 serial male 2 x USB type A Connectors (Computer Unit) 2 x 3.5mm audio mini-jack Computer: 1 x 29-pin DVI-I female 1 x DB9 serial female 1 x USB type B 2 x 3.5mm audio mini-jack 2 x SC fiber... - Page 16 HDCP Support Audio Support Control Methods Front Push-button, Hot-keys Power Adapter 12VDC, 1500mA, type M plug Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Humidity 0 ~ 80% RH Dimensions (LxWxH) 135.0mm x 220.0mm x 44.0mm Weight 1030g (each)
-
Page 17: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 18 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
