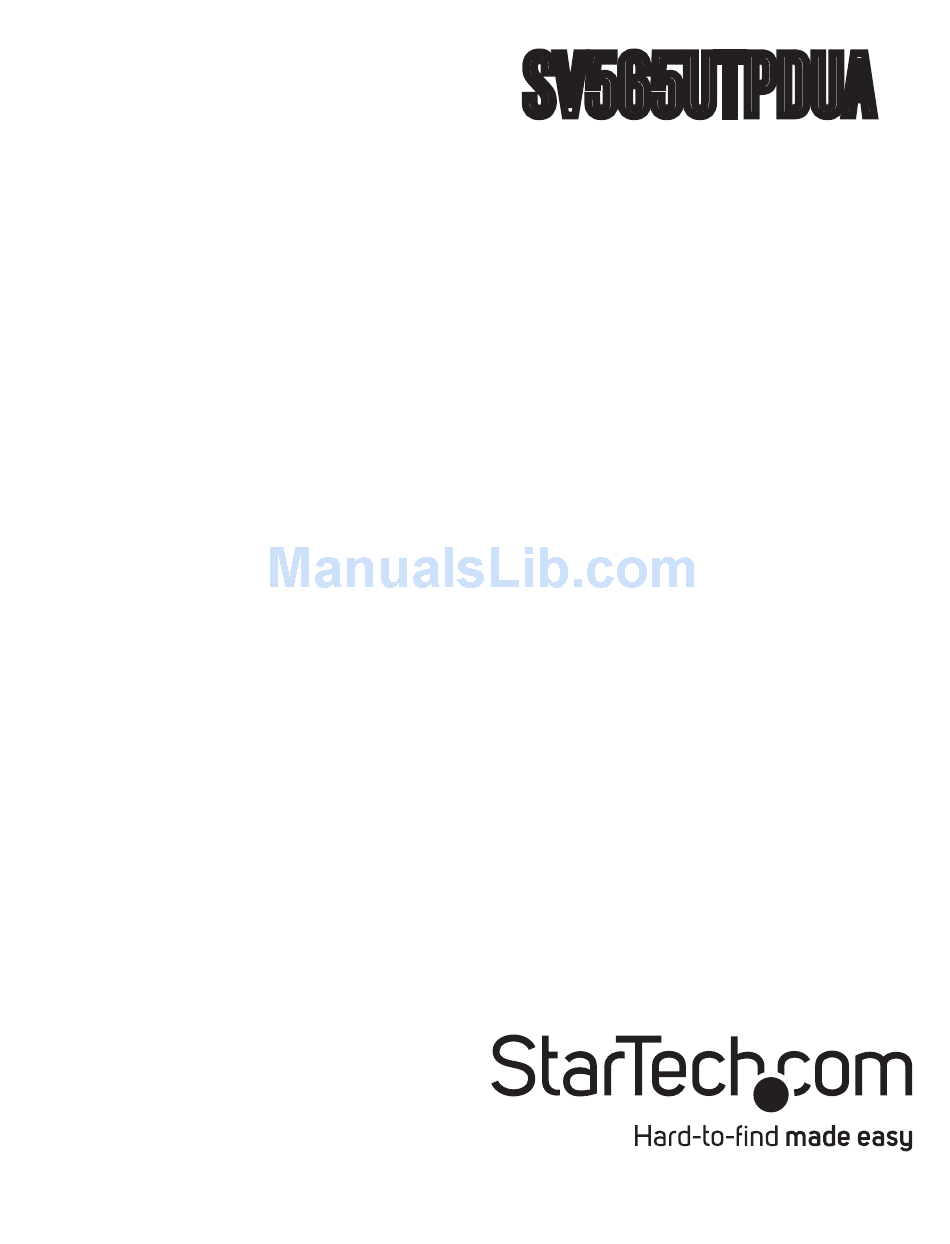

Page 1: Instruction Manual

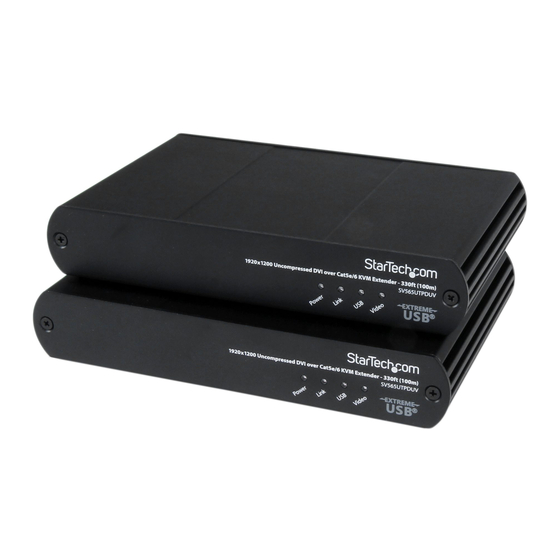

SV565UTPDUA Instruction Manual KVM Console Extender USB 2.0 DVI KVM Console Extender with Audio Over Cat5 - 500m Manual Revision:12/10/2010 For the most up-to-date information, please visit www.startech.com... - Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks,...
-
Page 3: Table Of Contents
Table of Contents Introduction ......................1 Packaging Contents ........................1 System Requirements ........................1 Front View ............................1 Rear View ............................1 Connecting Your KVM Extender ................2 Preparing Your Site .........................2 Local Unit Installation ........................2 Installing the Remote Unit .......................2 How to Use ......................3 LEDs ...............................3 Audio ...............................3 Compatibility ...................... -
Page 4: Introduction
Introduction Packaging Contents • 1 x Local Unit • 1 x Remote Unit • 2 x Universal Power Adapter • 1 x USB cable • 1 x DVI-D cable • 1 x Instruction Manual System Requirements • USB and DVI-D enabled KVM switch or computer system •... -
Page 5: Connecting Your Kvm Extender
Connecting Your KVM Extender Preparing Your Site Before you can install the product, you need to prepare your site. 1. Determine where the host computer will be located and set up the computer. 2. Determine where the console devices (mouse, keyboard, monitor) will be located and place them appropriately. -
Page 6: How To Use
How to Use LEDs Description • Solid green indicates ready status. Status • Flashing green indicates the unit is booting up. • Off indicates no power. • Solid green indicates a connection between the Local and Remote units. Link • Off indicates no connection between the Local and Remote units. •... -
Page 7: Compatibility
Compatibility The product is compatible with many graphic cards, Operating Systems, and monitors. There is no guarantee that all devices are compatible with the product, as there are a number of different configurations that may impact the operation of the KVM Extender. The product complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. -
Page 8: Specifications
Specifications Video Signal DVI-D (digital) Local Unit: 1 x 25-pin DVI-D female 1 x USB type B female 1 x RJ45 Ethernet female 1 x DC Power Connectors Remote Unit: 1 x 25-pin DVI-D female 3 x USB type A female 1 x RJ45 Ethernet female 2 x 3.5mm mini-jack Audio female 1 x DC Power... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
