AETEK H70-044-60 Quick Installation Manual

INTRODUCTION
The H70-044-60 L2+ managed switch supports 4x GbE UPoE, 2x GbE RJ45, 2x GbE SFP, and 1x RJ45 console port. It is
IEEE 802.3at/af compliant and delivers the real full-load output of 240W on 4 UPoE ports (60W per port).This industrial
L2+ managed switch also features a wide operating temperature range from -40ºC to 75ºC for harsh environment.
PACKAGE CONTENTS
* 1x PoE switch
* 1x DB9F-RJ45 console cable
IMPORTANT:
1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the converter are not blocked.
Single-mode): 9/125um ,1310nm.
4. DC input (48~57VDC). Follow the printed polarity for V+, V-, and Ground.

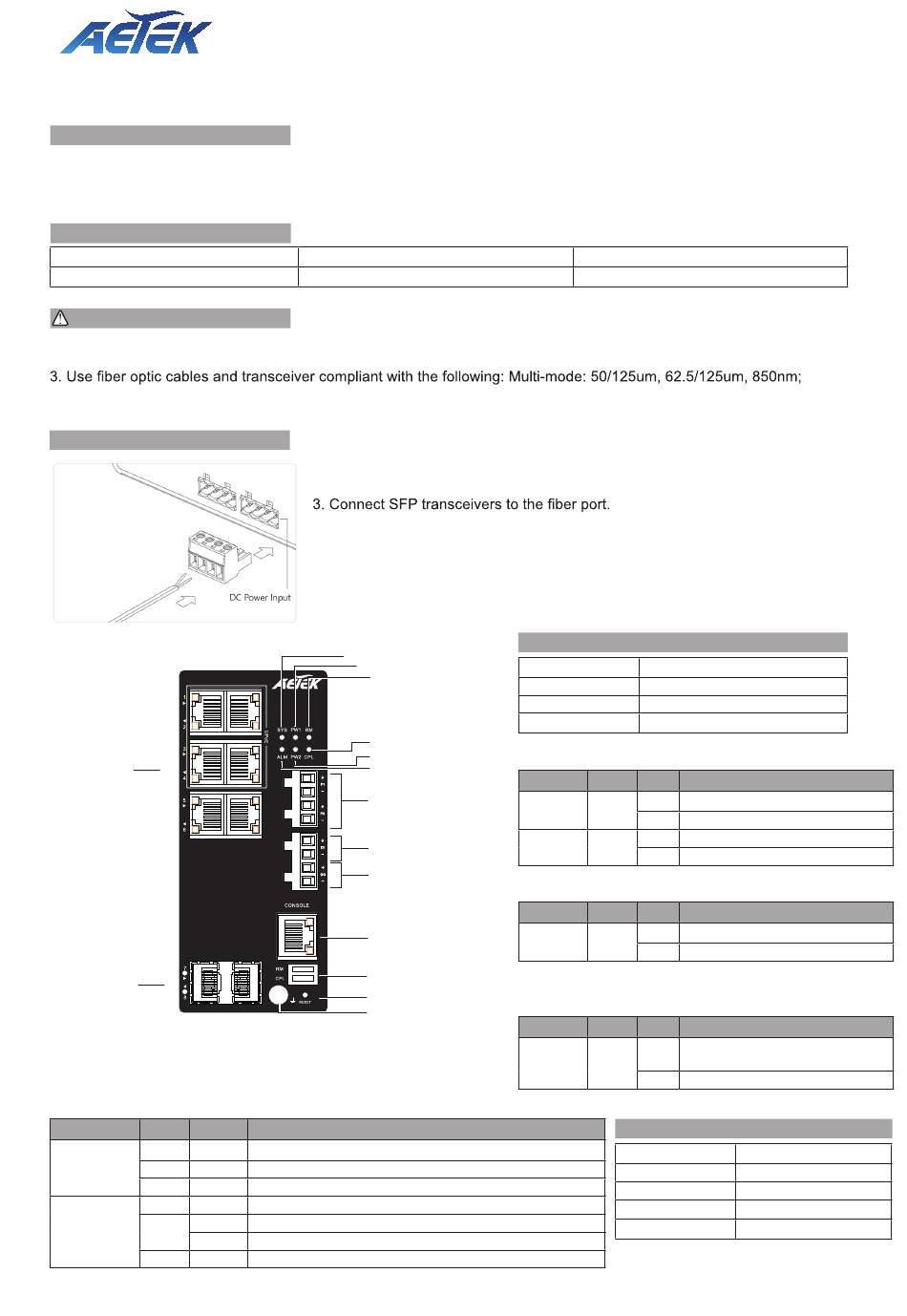

CONNECTION
10/100/1000
RJ45 ports
100/1000
SFP ports
Ring Master and Rapid Chain LEDs
LED Color State
RM Green On
(Ring Master)
Amber On
- Off
CPL Green On
(Rapid Chain)
Amber On
Blinking Error, there is no correspondent Rapid Chain switch found.
- Off

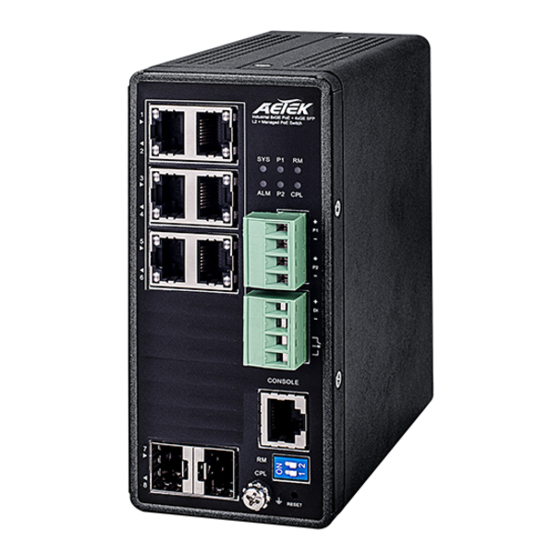

H70-044-60 Industrial L2+ Managed GbE UPoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x DIN rail bracket
1. Pull out the 4-pin terminal block.
2. Connect power wires to V+, and V-.
4. install the 4-pin terminal block.
NOTE: Digital output (relay): 24VDC/1A. Digital input: level 0(Low) -> 0V to 6V,
level 1(High) -> 10V to 24V.
System LED
Power1 LED
Ring Master LED
Industrial 4xGbE UPoE +
4xGbE Manaaged Switch
Rapid Chain LED
Power2 LED
Alarm LED
DC 54V power input
Digital input
Digital output relay
Console port
DIP switch (Ring Settings)
Reset button
Ground screw
Description
Ring Master has been detected.
Ring Member has been detected.
Disabled.
Rapid Chain has been detected (Active path).
Rapid Chain has been detected (Backup path).
Disabled.
* 2x 4-pin terminal block
DEFAULTS
IP Address 192.168.1.1
Subnet Mask 255.255.255.0
User Name admin
Password admin
Power LEDs
LED Color State Description
Power1 Green On Powered on correctly.
Off Not receiving power from power1.
Power2 Green On Powered on correctly.
Off Not receiving power from power1.
System LED
LED Color State Description
System Green On Switch is ready.
Off Switch is not ready.
Alarm LED
LED Color State Description
Alarm Red On Abnormal state, such temperature,
voltage, or DC power, has occurred.
Off System is normal.
Console Port Defaults
Baud rate
Stop bits
Data bits
Parity
Flow control
115200
1
8
N
none
