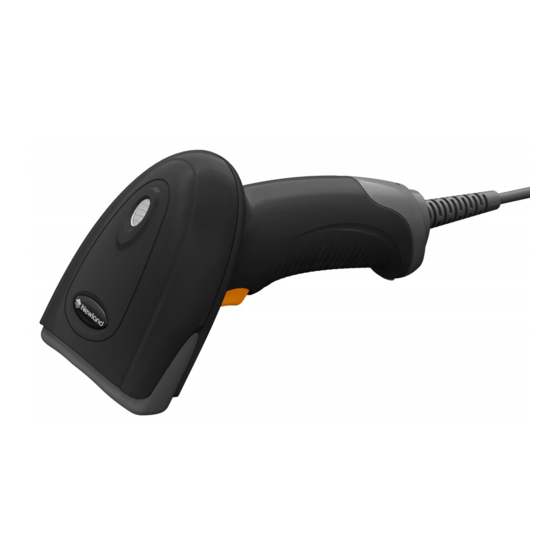

Newland HR11+ Aringa User Manual

1d handheld barcode scanne
Hide thumbs
Table of Contents

Advertisement

Quick Links

HR11+ Aringa
1D Handheld Barcode Scanner
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR11+ Aringa and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newland HR11+ Aringa

Summary of Contents for Newland HR11+ Aringa

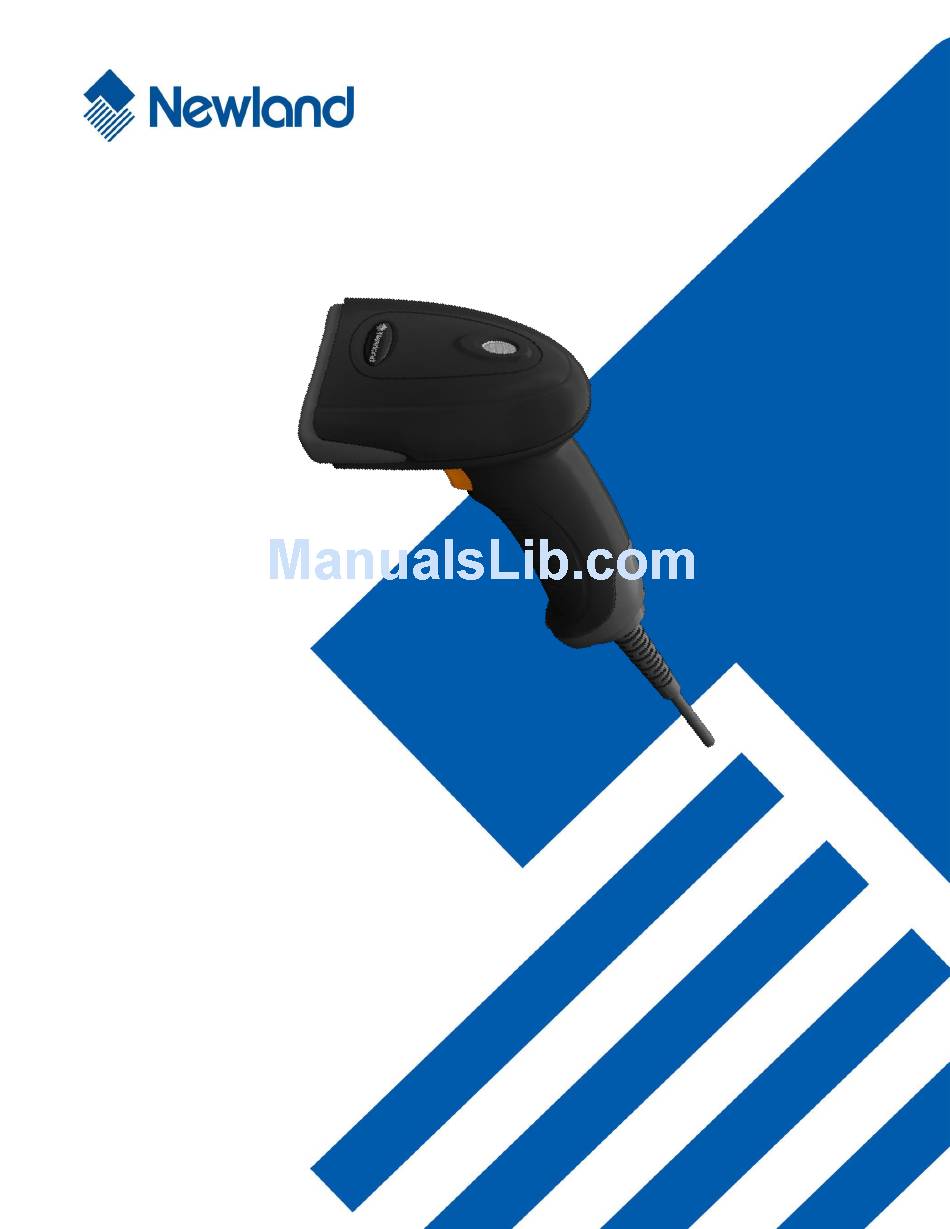

  • Page 1 HR11+ Aringa 1D Handheld Barcode Scanner User Guide...
  • Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice. The information contained herein is subject to change without prior notice.

  • Page 3: Revision History

    Revision History Version Description Date V1.0.0 Initial release. June 5, 2017 1. Changed the default settings of the following parameters to: Timeout between Decodes Febraban Enable Febraban, Expand V1.0.1 June 26, 2017 2. Modified Chapter 7 Data Formatter. Note: Firmware version V1.07.003 or later is required for the changes above.
  • Page 5 Table of Contents Revision History ............................- 3 - Preface ................................1 Introduction ............................1 Chapter Description ..........................1 Document Set ............................2 Chapter 1 Getting Started ..........................3 Introduction ............................3 Unpacking ............................. 3 HR11 Scanner ............................3 Data Port Pinout ............................ 4 Connecting the Scanner to a Host Device ....................
  • Page 6 Use of Programming Barcodes ......................17 Factory Defaults ..........................17 Custom Defaults ..........................18 Operating Mode Options ........................19 Scan Mode ............................20 Manual Mode ..........................20 Decode Session Timeout ......................20 Auto Sleep ..........................21 Batch Mode ........................... 22 Decode Session Timeout ......................
  • Page 7 ACK/NAK Transmit Error Beep ..................... 42 ACK/NAK Retry Count ........................43 ACK/NAK Timeout ........................43 Enable/Disable Character ......................44 Chapter 3 Query Commands ........................45 Chapter 4 Communication Settings ......................46 RS-232 Interface ..........................46 Baud Rate ............................. 47 Parity Check ..........................48 Stop Bit ............................
  • Page 8 Code ID Prefix ............................. 63 Restore All Default Code IDs ......................63 Modify Code ID ..........................63 Custom Suffix ............................67 Enable/Disable Custom Suffix ....................... 67 Set Custom Suffix ......................... 67 Terminating Character Suffix ....................... 68 Enable/Disable Terminating Character Suffix ................68 Set Terminating Character Suffix ....................
  • Page 9 Add-On Code ..........................80 Add-On Code Required ........................ 80 EAN-13 Beginning with 290 Add-On Code Required ..............81 EAN-13 Beginning with 378/379 Add-On Code Required ............. 81 EAN-13 Beginning with 414/419 Add-On Code Required ............. 82 EAN-13 Beginning with 434/439 Add-On Code Required ............. 82 EAN-13 Beginning with 977 Add-On Code Required ..............
  • Page 10 Enable/Disable Febraban......................97 Transmit Delay ..........................97 ITF-6 ..............................99 ITF-14 ............................... 100 Deutsche 14 ............................101 Restore Factory Defaults ......................101 Enable/Disable Deutsche 14 ....................... 101 Deutsche 12 ............................102 Restore Factory Defaults ......................102 Enable/Disable Deutsche 12 ....................... 102 COOP 25 (Japanese Matrix 2 of 5) ....................
  • Page 11 Code 32 Prefix ..........................119 Transmit Code 32 Start/Stop Character ..................120 Transmit Code 32 Check Character .................... 120 Codabar ............................121 Restore Factory Defaults ......................121 Enable/Disable Codabar ......................121 Check Character Verification ....................... 122 Start/Stop Character ........................123 Set Length Range for Codabar ....................
  • Page 12 Enable/Disable Data Formatter ......................141 Non-Match Error Beep ........................142 Multiple Data Formats ........................143 Data Format Selection ........................143 Change Data Format for a Single Scan .................... 144 Clear Data Format ..........................145 Query Data Formats .......................... 145 Formatter Command Type 6 ......................146 Send Commands ........................

  • Page 13: Preface

    Preface Introduction This manual provides detailed instructions for setting up and using the NLS-HR11 Plus hand-held barcode scanner (hereinafter referred to as “the HR11” or “the scanner”). Chapter Description : This chapter gives a general description of the scanner  Chapter 1, Getting Started including wiring instructions and basic operations.

  • Page 14: Document Set

    Document Set The documentation set for the HR11 scanner provides information for specific user needs and includes: Describes how to get the scanner up and running, and Quick Start Guide introduces some basic operations. Describes how to use and set the scanner. User Guide...

  • Page 15: Chapter 1 Getting Started

    HR11 scanner is a 1D barcode scanner with excellent performance, which supports all common 1D symbologies. Based on the technology independently developed by Newland, HR11 scanner is able to deliver rapid image acquisition and accurate decoding; it can provide customers with best services.

  • Page 16: Data Port Pinout

    Data Port Pinout Data Port Data port pinout (factory default): Signal Type Description Not connected Not connected Power+ (+5V) RS-232 Output RS-232 Input Flow control signal Ground USB signal...

  • Page 17: Connecting The Scanner To A Host Device

    Connecting the Scanner to a Host Device The scanner must be connected to a host device in actual application, such as PC, POS or any intelligent terminal with USB or RS-232 port, using a communication cable (USB or RS-232 cable). USB port on the host device RS-232 RS-232 port on the host device...

  • Page 18: Using Usb Cable

    Using USB Cable Connect the scanner to a host device through a USB cable with RJ45 and USB connectors: Plug the RJ45 connector into the data port on the scanner. Plug the USB connector into the USB port on the Host.

  • Page 19: Using Rs-232 Cable

    Using RS-232 Cable Connect the scanner to a host device through an RS-232 cable with RJ45, RS-232 and power connectors: Plug the RJ45 connector into the data port on the scanner. Plug the RS-232 connector into the RS-232 port on the Host. Connect the supplied power adaptor to the power connector of the RS-232 cable.

  • Page 20: Removing Communication Cable

    Removing Communication Cable Get an appropriate needle or a straightened paper clip and then follow the steps below: Disconnect the power adaptor from mains if there is one. Insert the needle into the hole. Pull out the cable slowly from the scanner while pressing the needle in. Remove the needle.

  • Page 21: Power On/Off, Sleep, Reboot

    Power On/Off, Sleep, Reboot Power on the scanner Connect the scanner to a host device. Then the scanner will be turned on and automatically go into the sleep mode. Power off the scanner There are four ways to turn off the scanner: Remove the communication cable from the scanner;...

  • Page 22: Dimensions (Unit: Mm)

    Dimensions (unit: mm) Side View Front View Top View...

  • Page 23: Scanning Instructions

    Scanning Instructions When the scanner is in the Manual scan mode, you can follow the steps below to scan a barcode: Press and hold the trigger. Then the scanner will project a red aiming beam. Aim the red beam across the center of barcode, as shown below. Release the trigger when the red beam goes off.

  • Page 24: Chapter 2 General Settings

    Besides the two methods mentioned above, you can conveniently perform scanner configuration through EasySet too. EasySet is a Windows-based configuration tool particularly designed for Newland products, enabling users to gain access to decoded data and captured images and to configure scanners. For more information about this tool, refer to the EasySet User Guide.

  • Page 25: Programming Barcode/ Programming Command/Function

    ** Enter Setup Programming Barcode/ Programming Command/Function The figure above is an example that shows you the programming barcode and command for the Enter Setup function: 1. The Enter Setup barcode. 2. The Enter Setup command. 3. The description of feature. 4.

  • Page 26: Use Of Programming Command

    ** Enter Setup Use of Programming Command Besides the barcode programming method, the scanner can also be configured by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters. Command Syntax Prefix StorageType Tag SubTag {Data} [,SubTag {Data}] [;Tag SubTag {Data}] […] Suffix Prefix: “~<SOH>0000”...

  • Page 27: Responses

    ** Enter Setup The value of the StoreType field in a query command can be either “ ” (HEX: 40) or “#” (HEX: 23). A query command with the SubTag field omitted means to query all the settings concerning a tag. For example, to query all the current settings about Code 11, you should enter 7E 01 30 30 30 30 40 43 31 31 A 3B 03 (i.e.

  • Page 28: Beep On Bel Character

    ** Enter Setup Beep on BEL Character You may wish to force the scanner to beep upon a command sent from the host. If you turn the feature on with the following command, the scanner will beep every time a <BEL> character is received from the host.

  • Page 29: Use Of Programming Barcodes

    ** Enter Setup Use of Programming Barcodes Scanning the Enter Setup barcode can enable the scanner to enter the setup mode. Then you can scan a number of programming barcodes to configure your scanner. The HR11 Plus is in the setup mode by default. In real application, programming barcodes hardly overlap with non-programming barcodes, so it is unnecessary to exit the setup mode each time you finish the configuration.

  • Page 30: Custom Defaults

    ** Enter Setup Custom Defaults Custom defaults make it possible to save the frequently-used settings on the scanner. Scanning the Save as Custom Defaults barcode can save the current settings as custom defaults. Once custom default settings are stored, they can be recovered at any time by scanning the Restore All Custom Defaults barcode.

  • Page 31: Operating Mode Options

    ** Enter Setup Operating Mode Options Power Off Deep Sleep Mode Light Sleep Mode Reboot Scanner Note: The scanner that has been turned off in this way cannot be awakened. To turn it back on, disconnect it from the host device and reconnect it. To awaken the scanner, press the trigger.

  • Page 32: Scan Mode

    ** Enter Setup Scan Mode Manual Mode Manual Mode (default): A trigger pull activates a decode session. The decode session continues until the barcode is decoded or you release the trigger or the decode session timeout expires (default: 15 seconds; user programmable). ** Manual Mode Decode Session Timeout Decode Session Timeout: This parameter sets the maximum time decode session continues during a...

  • Page 33: Auto Sleep

    ** Enter Setup Auto Sleep Auto Sleep allows the scanner in the Manual mode to automatically enter the light sleep mode if no operation or communication is performed for a time period (user programmable). When the scanner is in the light sleep mode, pressing the trigger or receiving command from the host device can awaken the scanner.

  • Page 34: Batch Mode

    ** Enter Setup Batch Mode A trigger pull activates a round of multiple decode sessions. This round of multiple scans continues until you release the trigger. Rereading the same barcode is not allowed in the same round. Batch Mode Decode Session Timeout Decode Session Timeout: This parameter sets the maximum time decode session continues during a scan attempt.

  • Page 35: Auto Mode

    ** Enter Setup Auto Mode Auto Mode: Pressing the trigger activates a decode session. The decode session continues until the barcode is decoded or the decode session timeout expires (default: 15 seconds; user programmable). The scanner automatically starts one session after another until you press the trigger a second time. Auto Mode Decode Session Timeout Decode Session Timeout: This parameter sets the maximum time decode session continues during a...

  • Page 36: Timeout Between Decodes (Same Barcode)

    ** Enter Setup Timeout between Decodes (Same Barcode) Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. To enable/disable the Timeout between Decodes (Same Barcode), scan the appropriate barcode below. Enable Timeout between Decodes (Same Barcode): Do not allow the scanner to re-read same barcode before the timeout between decodes (same barcode) expires.

  • Page 37: Blink Mode

    ** Enter Setup Blink Mode Blink Mode: The scanner automatically activates a decode session. The decode session continues until the barcode is decoded or the decode session timeout expires (100ms; non-programmable). When a decode session is completed, the scanner waits until the timeout between decodes expires (default: 1s, user programmable) and then starts next session.

  • Page 38: Sense Mode

    ** Enter Setup Sense Mode Sense Mode: The scanner activates a decode session every time when it detects a change in ambient illumination (excluding the situation when change is detected before the timeout between decodes expires). Decode session continues until the barcode is decoded or the decode session timeout expires. In the Sense mode, a trigger pull can also activate a decode session.

  • Page 39: Timeout Between Decodes

    ** Enter Setup Timeout between Decodes Timeout between Decodes: This parameter sets the time period between the end of one decode session and the start of next session. It is programmable in 500ms increments from 0ms to 7,500ms. The default timeout is 0ms. To program this parameter, scan the Timeout between Decodes barcode, the numeric barcodes and the Save barcode.

  • Page 40: Sensitivity

    ** Enter Setup Sensitivity Sensitivity specifies the degree of acuteness of the scanner’s response to changes in ambient illumination. The higher the sensitivity, the lower requirement in illumination change to trigger the scanner. You can select an appropriate degree of sensitivity that fits the ambient environment. ** High Sensitivity Low Sensitivity Medium Sensitivity...

  • Page 41: Timeout Between Decodes (Same Barcode)

    ** Enter Setup Timeout between Decodes (Same Barcode) Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. It is programmable in 100ms increments from 0ms to 12,000ms. When it is set to 12700, the timeout is infinite.

  • Page 42: Continuous Mode

    ** Enter Setup Continuous Mode Continuous Mode: The scanner automatically activates decode sessions one after another. The decode session continues until the barcode is decoded. For a good read, the scanner waits until the timeout between decodes expires and then starts next session. For a bad read, the scanner continues to decode the barcode until it is decoded.

  • Page 43: Timeout Between Decodes (Same Barcode)

    ** Enter Setup Timeout between Decodes (Same Barcode) Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. To enable/disable the Timeout between Decodes (Same Barcode), scan the appropriate barcode below. Enable Timeout between Decodes (Same Barcode): Do not allow the scanner to re-read same barcode before the timeout between decodes (same barcode) expires.

  • Page 44: Command Trigger Mode

    ** Enter Setup Command Trigger Mode Command Trigger Mode: The scanner activates a decode session when receiving the command string of “7E 01 30 30 30 30 40 53 43 4E 43 54 4D 31 3B 03” (~<SOH>0000@SCNCTM1;<ETX>) or scanning the Start Trigger Simulation barcode.

  • Page 45: Decode Session Timeout

    ** Enter Setup Decode Session Timeout Decode Session Timeout: This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1,000ms increments from 1,000ms to 15,000ms. When it is set to 0, the timeout is infinite. The default timeout is 15,000ms. To program this parameter, scan the Decode Session Timeout barcode, the numeric barcodes and the Save barcode.

  • Page 46: Bad Read Message

    ** Enter Setup Bad Read Message Scan the appropriate barcode below to select whether or not to send a bad read message (user-programmable) when a good read does not occur before trigger release, or the decode session timeout expires, or the scanner receives the command string of “7E 01 30 30 30 30 40 53 43 4E 43 54 4D 30 3B 03”...

  • Page 47: Security Setup

    ** Enter Setup Security Setup This parameter specifies the number of times to decode a barcode during a scan attempt. The higher the security level, the lower the error rate and decoding efficiency. Set Security Level to 1 Set Security Level to 3 Set Security Level to 2 ** Set Security Level to 4 Power On Beep...

  • Page 48: Good Read Beep

    ** Enter Setup Good Read Beep ** Good Read Beep ON Good Read Beep OFF Good Read Beep Frequency ** Medium High Good Read Beep Volume ** Loud Medium Exit Setup...

  • Page 49: Good Read Beep Duration

    ** Enter Setup Good Read Beep Duration Medium (80ms) Short (40ms) ** Long (120ms) Exit Setup...

  • Page 50: Good Read Led

    ** Enter Setup Good Read LED ** Good Read LED ON Good Read LED OFF Good Read LED Duration Good Read LED Duration is programmable in 100ms increments from 0ms to 25,500ms. The default duration is 100ms. To program this parameter, scan the Good Read LED Duration barcode, the numeric barcodes and the Save barcode.

  • Page 51: Good Read Indicator Timing

    ** Enter Setup Good Read Indicator Timing This sets the good read indicators (such as beep and LED) to occur either before or after successfully transmitting data. Indicate after Data Transmission ** Indicate before Data Transmission Exit Setup...

  • Page 52: Ack/Nak Options

    ** Enter Setup ACK/NAK Options This enables/disables the ability of the scanner to support the RS-232 ACK/NAK protocol. When enabled, the scanner and/or the host sends an ACK (Default: <ACK>) when it receives data properly, and sends an NAK (Default: <NAK>) when the data is in error. This setting is valid only when the scanner uses RS-232 or USB COM or USB HID-POS communication.

  • Page 53: Ack/Nak Error Handling

    ** Enter Setup ACK/NAK Error Handling You can specify the method the scanner uses to handle receive errors detected while waiting for an ACK character from the host. 3 options are provided: Ignore Errors Detected: After a barcode is sent, the scanner will respond with an ACK if the host sends the Enable or Disable Character;...

  • Page 54: Ack/Nak Character

    ** Enter Setup ACK/NAK Character You can specify an ASCII character or hex value to be used as the ACK/NAK character. ASCII characters or any hex value can be selected. Default ACK character=<ACK> (HEX: 06); default NAK character=<NAK> (HEX: 15). Set ACK Character Set NAK Character Example: Set the ACK character to 0x11...

  • Page 55: Ack/Nak Retry Count

    ** Enter Setup ACK/NAK Retry Count This parameter specifies the number of times the scanner retries a barcode transmission when it awaits an ACK or NAK response from the host. The selection range is from 1 to 254 retries. A selection of 0 disables the count;...

  • Page 56: Enable/Disable Character

    ** Enter Setup Enable/Disable Character You can specify the value of the RS-232 host command used to enable or disable the scanner’s ability to read barcode. ASCII characters or any hex value can be selected. Default Enable character= “E” (HEX: 45);...

  • Page 57: Chapter 3 Query Commands

    ** Enter Setup Chapter 3 Query Commands You can scan one of the barcodes below to inquire the scanner information. The results will be sent to the Host. Query Product Information Query the Decoder Version Query the Firmware Version Query the Hardware Version Query the Manufacturing Date Query the Product Name Exit Setup...

  • Page 58: Chapter 4 Communication Settings

    ** Enter Setup Chapter 4 Communication Settings The scanner provides an RS-232 interface and a USB interface to communicate with the host device. The host device can receive scanned data and send commands to control the scanner or to access/alter the configuration information of the scanner via the interface.

  • Page 59: Baud Rate

    ** Enter Setup Baud Rate Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the host requirements. ** 9600 1200 2400 4800 14400 19200 38400 57600 115200 Exit Setup...

  • Page 60: Parity Check

    ** Enter Setup Parity Check ** None Even Parity Odd Parity Stop Bit ** 1 Stop Bit 2 Stop Bits Data Bit When the number of data bits is set to 7, you can only select either Even Parity or Odd Parity. ** 8 Data Bits 7 Data Bits Exit Setup...

  • Page 61: Flow Control

    ** Enter Setup Flow Control If CTS flow control is enabled, the scanner determines whether to transmit data based on CTS signal level. When CTS signal is at high level which means the serial port’s cache memory of receiving device (such as PC) is full, the scanner stops sending data through serial port until CTS signal is set to low level by receiving device and discards data 100ms later if receiving device still remains unprepared for receiving it.

  • Page 62: Usb Interface

    ** Enter Setup USB Interface USB Suspend This feature allows the scanner to suspend its USB interface to conserve power when host PC goes into sleep or hibernate mode. To wake up the suspended device, disconnect and then connect the USB cable or awaken the host PC.

  • Page 63: Keyboard Layout

    ** Enter Setup Keyboard Layout ** 1 – US (English) 7 – Finland (Swedish) 2 – Belgium (French) 8 - France 3 – Brazil (Portuguese) 9 – German (Austria) 4 – Canada (French) 10 – Greece (Greek) 5 - Czechoslovakia (Czech) 11 –...
  • Page 64 ** Enter Setup 13 - Italy 19 - Russia 14 – Netherlands (Dutch) 20 – Spain (Spanish_International Sort) 15 – Norwegian (Norway) 21 – Swedish (Sweden) 16 – Polish (Poland) 22 – German (Switzerland) 17 – Portuguese (Portugal) 23 - Turkey_F 18 - Romania 24 –...

  • Page 65: Inter-Keystroke Delay

    ** Enter Setup Inter-Keystroke Delay This parameter specifies the delay between emulated keystrokes. It is programmable in 5ms increments from 0ms to 75ms. Custom Delay ** No Delay Short Delay (20ms) Long Delay (40ms) Example: Set the inter-keystroke delay to 5ms Scan the Enter Setup barcode.

  • Page 66: Emulate Alt+Keypad

    ** Enter Setup Emulate ALT+Keypad This feature allows any ASCII character (0x00 - 0xFF) to be sent over the numeric keypad no matter which keyboard type is selected. Since sending a character involves multiple keystroke emulations, this method appears less efficient. The following options are available: Disable: No ASCII character is sent in the ALT+Keypad way.

  • Page 67: Function Key Mapping

    ** Enter Setup Function Key Mapping When Function Key Mapping is enabled, function characters (0x00 - 0x1F) are sent as ASCII sequences over the keypad. For more information, see the “ASCII Function Key Mapping Table” in Appendix. Enable Function Key Mapping ** Disable Function Key Mapping Example: Barcode data 0x16 Enable Function Key Mapping...

  • Page 68: Polling Rate

    ** Enter Setup Polling Rate This parameter specifies the polling rate for a USB keyboard. If the host drops characters, change the polling rate to a bigger value. ** 1ms 10ms Exit Setup...

  • Page 69: Code

    ** Enter Setup Code Page The Code Page programming feature is provided to support more international characters. This setting is valid only when ASCII characters are sent in the ALT+Keypad way. ** Code Page 1252 (Latin I) Code Page 1251 (Cyrillic) Exit Setup...

  • Page 70: Usb Com Port Emulation

    ** Enter Setup USB COM Port Emulation If you connect the scanner to the host device via a USB connection, the USB COM Port Emulation feature allows the host to receive data in the way as a serial port does. A driver is required for this feature. USB COM Port Emulation Exit Setup...

  • Page 71: Usb Hid-Pos

    ** Enter Setup USB HID-POS Introduction The USB HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB report and appears more efficient than keyboard emulation. Features: HID based, no custom driver required. ...

  • Page 72: Ibm Surepos

    IBM SurePOS (Handheld) VID/PID USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. Newland’s vendor ID is 1EAB (Hex). A PID is assigned to each interface. Product Interface...

  • Page 73: Chapter 5 Prefix & Suffix

    ** Enter Setup Chapter 5 Prefix & Suffix Introduction In real applications, barcode data may be found insufficient for your needs. You may wish to include additional information such as barcode type, data acquisition time or delimiter in data being scanned. Adding extra information to printed barcodes does not seem like a sensible solution since that will increase the barcode size and make them inflexible.

  • Page 74: Set Custom Prefix

    ** Enter Setup Set Custom Prefix To set a custom prefix, scan the Set Custom Prefix barcode and the numeric barcodes representing the hexadecimal value(s) of a desired prefix and then scan the Save barcode. Refer to the “ASCII Table” in Appendix for hexadecimal values of characters.

  • Page 75: Code Id Prefix

    ** Enter Setup Code ID Prefix Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two characters (0x01~0xFF). ** Disable Code ID Prefix Enable Code ID Prefix Restore All Default Code IDs For the information of default Code IDs, see the “Code ID Table”...
  • Page 76 ** Enter Setup Modify Code 128 Code ID Modify UCC/EAN-128 Code ID Modify AIM 128 Code ID Modify EAN-8 Code ID Modify EAN-13 Code ID Modify ISSN Code ID Modify ISBN Code ID Modify UPC-E Code ID Modify UPC-A Code ID Modify Interleaved 2 of 5 Code ID Exit Setup...
  • Page 77 ** Enter Setup Modify ITF-6 Code ID Modify ITF-14 Code ID Modify Deutsche 14 Code ID Modify Deutsche 12 Code ID Modify COOP 25 Code ID Modify Matrix 2 of 5 Code ID Modify Industrial 25 Code ID Modify Standard 25 Code ID Modify Code 39 Code ID Modify Codabar Code ID Exit Setup...
  • Page 78 ** Enter Setup Modify Code 93 Code ID Modify Code 11 Code ID Modify Plessey Code ID Modify MSI-Plessey Code ID Modify GS1 Databar Code ID Example: Set PDF417 Code ID to “p” (HEX: 0x70) Scan the Enter Setup barcode. Scan the Modify PDF417 Code ID barcode.

  • Page 79: Custom Suffix

    ** Enter Setup Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to scanned data a user-defined suffix that cannot exceed 11 characters. For example, if barcode data is “123” and custom suffix is “AB”, the host device will receive “123AB”. Disable Custom Suffix Enable Custom Suffix Set Custom Suffix...

  • Page 80: Terminating Character Suffix

    ** Enter Setup Terminating Character Suffix Enable/Disable Terminating Character Suffix A terminating character can be used to mark the end of data. A terminating character suffix can contain 1 or 2 characters. Disable Terminating Character Suffix Enable Terminating Character Suffix Set Terminating Character Suffix The scanner provides a shortcut for setting the terminating character suffix to CR (0x0D) or CRLF (0x0D,0x0A) and enabling it by scanning the appropriate barcode below.

  • Page 81: Introduction

    ** Enter Setup Chapter 6 Symbologies Introduction Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner. Global Settings Enable/Disable All Symbologies If the Disable All Symbologies feature is enabled, the scanner will not be able to read any...

  • Page 82: Code 128

    ** Enter Setup Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 Enable Code 128 Disable Code 128 Exit Setup...

  • Page 83: Set Length Range For Code 128

    ** Enter Setup Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 84: Ucc/Ean-128

    ** Enter Setup UCC/EAN-128 Restore Factory Defaults Restore the Factory Defaults of UCC/EAN-128 Enable/Disable UCC/EAN-128 Enable UCC/EAN-128 Disable UCC/EAN-128 Exit Setup...

  • Page 85: Set Length Range For Ucc/Ean-128

    ** Enter Setup Set Length Range for UCC/EAN-128 The scanner can be configured to only decode UCC/EAN-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes UCC/EAN-128 barcodes with either the minimum or maximum length.

  • Page 86: Restore Factory Defaults

    ** Enter Setup AIM 128 Restore Factory Defaults Restore the Factory Defaults of AIM 128 Enable/Disable AIM 128 Enable AIM 128 ** Disable AIM128 Exit Setup...

  • Page 87: Set Length Range For Aim 128

    ** Enter Setup Set Length Range for AIM 128 The scanner can be configured to only decode AIM 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 88: Ean-8

    ** Enter Setup EAN-8 Restore Factory Defaults Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 ** Enable EAN-8 Disable EAN-8 Transmit Check Character EAN-8 is 8 digits in length with the last one as its check character used to verify the integrity of the data. Transmit EAN-8 Check Character Do Not Transmit EAN-8 Check Character Exit Setup...

  • Page 89: Add-On Code

    ** Enter Setup Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus add-on barcode.

  • Page 90: Add-On Code Required

    ** Enter Setup Add-On Code Required When EAN-8 Add-On Code Required is selected, the scanner will only read EAN-8 barcodes that contain add-on codes. EAN-8 Add-On Code Required ** EAN-8 Add-On Code Not Required Convert EAN-8 to EAN-13 Convert EAN-8 to EAN-13: Convert EAN-8 decoded data to EAN-13 format before transmission. After conversion, the data follows EAN-13 format and is affected by EAN-13 programming selections (e.g., Check Character).

  • Page 91: Ean-13

    ** Enter Setup EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 ** Enable EAN-13 Disable EAN-13 Transmit Check Character EAN-13 is 13 digits in length with the last one as its check character used to verify the integrity of the data.

  • Page 92: Add-On Code

    ** Enter Setup Add-On Code An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus add-on barcode.

  • Page 93: Ean-13 Beginning With 290 Add-On Code Required

    ** Enter Setup EAN-13 Beginning with 290 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “290”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “290” must have a 2-digit or 5-digit add-on code.

  • Page 94: Ean-13 Beginning With 414/419 Add-On Code Required

    ** Enter Setup EAN-13 Beginning with 414/419 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a “414” or “419”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with a “414” or “419” must have a 2-digit or 5-digit add-on code.

  • Page 95: Ean-13 Beginning With 977 Add-On Code Required

    ** Enter Setup EAN-13 Beginning with 977 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “977”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “977” must have a 2-digit or 5-digit add-on code.

  • Page 96: Ean-13 Beginning With 979 Add-On Code Required

    ** Enter Setup EAN-13 Beginning with 979 Add-On Code Required This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with “979”. The following settings can be programmed: Require Add-On Code: All EAN-13 barcodes that begin with “979” must have a 2-digit or 5-digit add-on code.

  • Page 97: Issn

    ** Enter Setup ISSN Restore Factory Defaults Restore the Factory Defaults of ISSN Enable/Disable ISSN Enable ISSN ** Disable ISSN Exit Setup...

  • Page 98: Isbn

    ** Enter Setup ISBN Restore Factory Defaults Restore the Factory Defaults of ISBN Enable/Disable ISBN Enable ISBN ** Disable ISBN Set ISBN Format ** ISBN-13 ISBN-10 Exit Setup...

  • Page 99: Upc-E

    ** Enter Setup UPC-E Restore Factory Defaults Restore the Factory Defaults of UPC-E Enable/Disable UPC-E0 This setting enables or disables the scanner to read UPC-E barcodes that lead with the 0 number system. Enable UPC-E0 Disable UPC-E0 Enable/Disable UPC-E1 This setting enables or disables the scanner to read UPC-E barcodes that lead with the 0 number system. Enable UPC-E1 ** Disable...

  • Page 100: Transmit Check Character

    ** Enter Setup Transmit Check Character UPC-E is 8 digits in length with the last one as its check character used to verify the integrity of the data. Transmit UPC-E Check Character Do Not Transmit UPC-E Check Character Add-On Code A UPC-E barcode can be augmented with a two-digit or five-digit add-on code to form a new one.

  • Page 101: Add-On Code Required

    ** Enter Setup Add-On Code Required When UPC-E Add-On Code Required is selected, the scanner will only read UPC-E barcodes that contain add-on codes. UPC-E Add-On Code Required ** UPC-E Add-On Code Not Required Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E barcode.

  • Page 102: Convert Upc-E To Upc-A

    ** Enter Setup Convert UPC-E to UPC-A Convert UPC-E to UPC-A: Convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Character). Do Not Convert UPC-E to UPC-A: UPC-E decoded data is transmitted as UPC-E data, without conversion.

  • Page 103: Upc-A

    ** Enter Setup UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A Enable/Disable UPC-A Enable UPC-A Disable UPC-A Transmit Check Character UPC-A is 13 digits in length with the last one as its check character used to verify the integrity of the data. Transmit UPC-A Check Character Do Not Transmit UPC-A Check Character Exit Setup...

  • Page 104: Add-On Code

    ** Enter Setup Add-On Code A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new one. Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented with a UPC-A plus add-on barcode.

  • Page 105: Transmit Preamble Character

    ** Enter Setup Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only or transmit system character and country code (“0” for USA). No Preamble ** System Character System Character &...

  • Page 106: Interleaved 2 Of 5

    ** Enter Setup Interleaved 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 ** Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Exit Setup...

  • Page 107: Check Character Verification

    ** Enter Setup Check Character Verification A check character is optional for Interleaved 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Interleaved 2 of 5 barcodes as is. Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check character algorithm.

  • Page 108: Set Length Range For Interleaved 2 Of 5

    ** Enter Setup Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 109: Febraban

    ** Enter Setup Febraban Enable/Disable Febraban Disable Febraban Enable Febraban, Do Not Expand ** Enable Febraban, Expand Transmit Delay This feature is available only when USB HID-KBW is enabled. Transmit Delay per Character applies to both Expanded and Unexpanded Febraban while Transmit Delay per 12 Characters applies to Expanded Febraban only.
  • Page 110 ** Enter Setup Custom Transmit Delay per Character: This parameter is programmable in 5ms increments from 0ms to 75ms. To set it, scan the Custom Transmit Delay per Character barcode, numeric barcode(s) that represent a desired value and the Save barcode. The default value is 70ms. Custom Transmit Delay per 12 Characters: To set this parameter, scan the Custom Transmit Delay per 12 Characters barcode and a numeric barcode (0-7, which represent 0ms, 300ms, 400ms, 500ms, 600ms, 700ms, 800ms and 900ms, respectively).

  • Page 111: Itf-6

    ** Enter Setup ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. ITF-6 priority principle: For the Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check character, the ITF-6 configurations shall take precedence over the Interleaved 2 of 5 settings.

  • Page 112: Itf-14

    ** Enter Setup ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. ITF-14 priority principle: For the Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the check character, the ITF-14 configurations shall take precedence over the Interleaved 2 of 5 settings.

  • Page 113: Deutsche 14

    ** Enter Setup Deutsche 14 Restore Factory Defaults Restore the Factory Defaults of Deutsche 14 Enable/Disable Deutsche 14 Enable Deutsche 14 But Do Not Transmit Check Character ** Disable Deutsche 14 Enable Deutsche 14 and Transmit Check Character Note: It is advised not to enable Deutsche 14 unless necessary, because Deutsche 14, ITF-14 and Interleaved 2 of 5 use the same encoding method and enabling them at the same time can easily cause confusion with each other when decoding.

  • Page 114: Deutsche 12

    ** Enter Setup Deutsche 12 Restore Factory Defaults Restore the Factory Defaults of Deutsche 12 Enable/Disable Deutsche 12 Enable Deutsche 12 But Do Not Transmit Check Character ** Disable Deutsche 12 Enable Deutsche 14 and Transmit Check Character Note: It is advised not to enable Deutsche 12 unless necessary, because Deutsche 12, ITF-12 and Interleaved 2 of 5 use the same encoding method and enabling them at the same time can easily cause confusion with each other when decoding.

  • Page 115: Coop 25 (Japanese Matrix 2 Of 5)

    ** Enter Setup COOP 25 (Japanese Matrix 2 of 5) Restore Factory Defaults Restore the Factory Defaults of COOP 25 Enable/Disable COOP 25 Enable COOP 25 ** Disable COOP 25 Note: If the scanner fails to identify COOP 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable COOP 25 barcode.

  • Page 116: Check Character Verification

    ** Enter Setup Check Character Verification A check character is optional for COOP 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits COOP 25 barcodes as is. Do Not Transmit Check Character After Verification: The scanner checks the integrity of all COOP 25 barcodes to verify that the data complies with the check character algorithm.

  • Page 117: Set Length Range For Coop 25

    ** Enter Setup Set Length Range for COOP 25 The scanner can be configured to only decode COOP 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 118: Matrix 2 Of 5 (European Matrix 2 Of 5)

    ** Enter Setup Matrix 2 of 5 (European Matrix 2 of 5) Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 ** Enable Matrix 2 of 5 Disable Matrix 2 of 5 Note: If the scanner fails to identify Matrix 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Matrix 2 of 5 barcode.

  • Page 119: Check Character Verification

    ** Enter Setup Check Character Verification A check character is optional for COOP 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits COOP 25 barcodes as is. Do Not Transmit Check Character After Verification: The scanner checks the integrity of all COOP 25 barcodes to verify that the data complies with the check character algorithm.

  • Page 120: Set Length Range For Matrix 2 Of 5

    ** Enter Setup Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 121: Industrial 25

    ** Enter Setup Industrial 25 Restore Factory Defaults Restore the Factory Defaults of Industrial Enable/Disable Industrial 25 ** Enable Industrial 25 Disable Industrial 25 Note: If the scanner fails to identify Industrial 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Industrial 25 barcode.

  • Page 122: Check Character Verification

    ** Enter Setup Check Character Verification A check character is optional for Industrial 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Industrial 25 barcodes as is. Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify that the data complies with the check character algorithm.

  • Page 123: Set Length Range For Industrial 25

    ** Enter Setup Set Length Range for Industrial 25 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 124: Standard 25

    ** Enter Setup Standard 25 Restore Factory Defaults Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 Enable Standard 25 Disable Standard 25 Note: If the scanner fails to identify Standard 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Standard 25 barcode.

  • Page 125: Check Character Verification

    ** Enter Setup Check Character Verification A check character is optional for Standard 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Standard 25 barcodes as is. Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify that the data complies with the check character algorithm.

  • Page 126: Set Length Range For Standard 25

    ** Enter Setup Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 127: Restore Factory Defaults

    ** Enter Setup Code 39 Restore Factory Defaults Restore the Factory Defaults of Code 39 Enable/Disable Code 39 ** Enable Code 39 Disable Code 39 Note: If the scanner fails to identify Code 39 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 39 barcode.

  • Page 128: Check Character Verification

    ** Enter Setup Check Character Verification A check character is optional for Code 39 and can be added as the last character. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Code 39 barcodes as is. Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Code 39 barcodes to verify that the data complies with the check character algorithm.

  • Page 129: Transmit Start/Stop Character

    ** Enter Setup Transmit Start/Stop Character Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. Transmit Start/Stop Character ** Do not Transmit Start/Stop Character Enable/Disable Code 39 Full ASCII The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode...

  • Page 130: Set Length Range For Code 39

    ** Enter Setup Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 131: Enable/Disable Code 32 (Italian Pharma Code)

    ** Enter Setup Enable/Disable Code 32 (Italian Pharma Code) Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable Code 32. Code 39 must be enabled and Code 39 check character verification must be disabled for this parameter to function.

  • Page 132: Transmit Code 32 Start/Stop Character

    ** Enter Setup Transmit Code 32 Start/Stop Character Code 32 must be enabled for this parameter to function. Transmit Code 32 Start/Stop Character ** Do Not Transmit Code 32 Start/Stop Character Transmit Code 32 Check Character Code 32 must be enabled for this parameter to function. Transmit Code 32 Check Character ** Do Not Transmit Code 32 Check Character Exit Setup...

  • Page 133: Codabar

    ** Enter Setup Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar ** Enable Codabar Disable Codabar Note: If the scanner fails to identify Codabar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Codabar barcode. Exit Setup...

  • Page 134: Check Character Verification

    ** Enter Setup Check Character Verification A check character is optional for Codabar and can be added as the last character. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Codabar barcodes as is. Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Codabar barcodes to verify that the data complies with the check character algorithm.

  • Page 135: Start/Stop Character

    ** Enter Setup Start/Stop Character Do Not Transmit Start/Stop Character ** Transmit Start/Stop Character ** ABCD/ABCD as the Start/Stop Character ABCD/TN*E as the Start/Stop Character abcd/abcd as the Start/Stop Character abcd/tn*e as the Start/Stop Character Exit Setup...

  • Page 136: Set Length Range For Codabar

    ** Enter Setup Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 137: Restore Factory Defaults

    ** Enter Setup Code 93 Restore Factory Defaults Restore the Factory Defaults of Code 93 Enable/Disable Code 93 ** Enable Code 93 Disable Code 93 Note: If the scanner fails to identify Code 93 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 93 barcode.

  • Page 138: Check Character Verification

    ** Enter Setup Check Character Verification Check characters are optional for Code 93 and can be added as the last two characters, which are calculated values used to verify the integrity of the data. By default, the scanner does not transmit check characters after verification.

  • Page 139: Set Length Range For Code 93

    ** Enter Setup Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 140: Restore Factory Defaults

    ** Enter Setup Code 11 Restore Factory Defaults Restore the Factory Defaults of Code 11 Enable/Disable Code 11 Enable Code 11 ** Disable Code 11 Note: If the scanner fails to identify Code 11 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 11 barcode.

  • Page 141: Check Character Verification

    ** Enter Setup Check Character Verification Check characters are optional for Code 11 and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits Code 11 barcodes as is. Disable One Check Character, MOD11...

  • Page 142: Set Length Range For Code 11

    ** Enter Setup Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 143: Plessey

    ** Enter Setup Plessey Restore Factory Defaults Restore the Factory Defaults of Plessey Enable/Disable Plessey Enable Plessey ** Disable Plessey Note: If the scanner fails to identify Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Plessey barcode. Exit Setup...

  • Page 144: Check Character Verification

    ** Enter Setup Check Character Verification Check characters are optional for Plessey and can be added as the last two characters, which are calculated values used to verify the integrity of the data. Disable: The scanner transmits Plessey barcodes as is. Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the data complies with the check character algorithm.

  • Page 145: Set Length Range For Plessey

    ** Enter Setup Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

  • Page 146: Msi-Plessey

    ** Enter Setup MSI-Plessey Restore Factory Defaults Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey Enable MSI-Plessey ** Disable MSI-Plessey Note: If the scanner fails to identify MSI-Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable MSI-Plessey barcode. Exit Setup...

  • Page 147: Check Character Verification

    ** Enter Setup Check Character Verification Check characters are optional for MSI-Plessey and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits MSI-Plessey barcodes as is. Disable One Check Character, MOD10...

  • Page 148: Set Length Range For Msi-Plessey

    ** Enter Setup Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths. If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey barcodes with either the minimum or maximum length.

  • Page 149: Gs1 Databar

    ** Enter Setup GS1 Databar Restore Factory Defaults Restore the Factory Defaults of GS1 Databar Enable/Disable GS1 Databar ** Enable GS1 Databar Disable GS1 Databar Note: If the scanner fails to identify GS1 Databar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Databar barcode.

  • Page 150: Introduction

    ** Enter Setup Chapter 7 Data Formatter Introduction You may use the Data Formatter to modify the scanner’s output. For example, you can use the Data Formatter to insert characters at certain points in barcode data or to suppress/ replace/ send certain characters in barcode data as it is scanned.
  • Page 151 ** Enter Setup Step 3: Select data format. Scan a numeric barcode 0 or 1 or 2 or 3 to set this to Format_0 or Format_1 or Format_2 or Format_3. Step 4: Select formatter command type. Specify what type of formatter commands will be used. Scan a numeric barcode 6 to select formatter command type 6.

  • Page 152: Programming With Serial Commands

    ** Enter Setup Programming with Serial Commands A data format can also be created by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters. The syntax consists of the following elements: Prefix: “~<SOH>0000” (HEX: 7E 01 30 30 30 30), 6 characters. Storage type: “...

  • Page 153: Enable/Disable Data Formatter

    ** Enter Setup Enable/Disable Data Formatter When Data Formatter is disabled, the barcode data is outputted to the host as read, including prefixes and suffixes. ** Disable Data Formatter You may wish to require the data to conform to a data format you have created. The following settings can be applied to your data format: Enable Data Formatter, Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted along with prefixes and suffixes (if prefix and...

  • Page 154: Non-Match Error Beep

    ** Enter Setup Enable Data Formatter, Required, Keep Prefix/Suffix Enable Data Formatter, Required, Drop Prefix/Suffix Enable Data Formatter, Not Required, Keep Prefix/Suffix Enable Data Formatter, Not Required, Drop Prefix/Suffix Non-Match Error Beep If Non-Match Error Beep is turned ON, the scanner generates an error beep when a barcode is encountered that does not match your required data format.

  • Page 155: Multiple Data Formats

    ** Enter Setup Multiple Data Formats After the Data Formatter is enabled, you can set the scanner to use one or multiple data formats by scanning the appropriate barcode below. Multiple Data Formats Off: Only one data format (default: Format_0) is put into use. To learn how to switch to another data format, see the “Data Format Selection”...

  • Page 156: Change Data Format For A Single Scan

    ** Enter Setup Change Data Format for a Single Scan You can switch between data formats for a single scan. The next barcode is scanned using the data format selected here, then reverts to the format you have selected above. This setting is valid only when the Multiple Data Formats feature is turned off.

  • Page 157: Clear Data Format

    ** Enter Setup Clear Data Format There are two methods to remove data format from your scanner: Delete one data format: Scan the Clear One barcode, a numeric barcode (0-3) and the Save barcode. For example, to delete Format_2, you should scan the Clear One barcode, the 2 barcode and the Save barcode Delete all data formats: Scan the Clear All barcode.

  • Page 158: Formatter Command Type 6

    ** Enter Setup Formatter Command Type 6 When working with the Data Formatter, a virtual cursor is moved along your input data string. The following commands are used to both move this cursor to different positions, and to select, replace, and insert data into the final output.
  • Page 159 ** Enter Setup F3 Send all characters up to a particular character Syntax=F3ssxx (ss: The particular character’s hex value; xx: The insert character’s hex value) Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the particular character “ss,”...
  • Page 160 ** Enter Setup E9 and F4 Example: Send all but the last characters, followed by 2 tabs Send all characters except for the last 8 from the barcode above, followed by 2 tabs. Command string: E908F40902 E9 is the “Send all but the last characters” command 08 is the number of characters at the end to ignore F4 is the “Insert a character multiple times”...
  • Page 161 ** Enter Setup B3 and B4 Example: Insert the symbology name and length Send the symbology name and length before the barcode data from the barcode above. Break up these insertions with spaces. End with a carriage return. Command string: B3F42001B4F42001F10D B3 is the “Insert symbology name”...
  • Page 162 ** Enter Setup B5 Insert key strokes Syntax=B5nnssxx (nn: The number of keys pressed (without key modifiers); ss: the key modifier from the table below; xx: the key number from the “Unicode Key Maps” in Appendix.) Insert a key stroke or combination of key strokes. Key strokes are dependent on your keyboard (see the “Unicode Key Maps”...

  • Page 163: Move Commands

    ** Enter Setup Move Commands F5 Move the cursor forward a number of characters Syntax=F5nn (nn: The numeric value (00-99) for the number of characters the cursor should be moved ahead) Move the cursor ahead “nn” characters from current cursor position. F5 Example: Move the cursor forward and send the data Move the cursor forward 3 characters, then send the rest of the barcode data from the barcode above.

  • Page 164: Search Commands

    ** Enter Setup EA Move the cursor to the end Syntax＝EA Move the cursor to the last character in the input message. Search Commands F8 Search forward for a character Syntax＝F8xx (xx: The search character’s hex value) Search the input message forward for “xx” character from the current cursor position, leaving the cursor pointing to the “xx”...
  • Page 165 ** Enter Setup B0 Search forward for a string Syntax=B0nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string) Search forward for “S” string from the current cursor position, leaving cursor pointing to “S” string. For example, B0000454657374 will search forward for the first occurrence of the 4-character string “Test.”...
  • Page 166 ** Enter Setup E6 Search forward for a non-matching character Syntax=E6xx (xx: The search character’s hex value) Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor pointing to the non-“xx” character. E6 Example: Remove zeros at the beginning of barcode data This example shows a barcode that has been zero filled.

  • Page 167: Miscellaneous Commands

    ** Enter Setup Miscellaneous Commands FB Suppress characters Syntax＝FBnnxxyy..zz (nn: The numeric value (00-15) for the number of suppressed characters; xxyy..zz: The hex value of the characters to be suppressed) Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced by other commands.
  • Page 168 ** Enter Setup E4 Replace characters Syntax＝E4nnxx …zz (nn: The total count of the number of characters (characters to be replaced plus replacement characters; xx : The characters to be replaced, xx : The replacement characters, continuing through zz and zz Replace up to 15 characters in the output message, without moving the cursor.
  • Page 169 ** Enter Setup BA Replace a string with another Syntax＝BAnnNN nn: The count of replacements to be made, if nn=00 or nn>=the number of occurrences of a string to be replaced, then replace all occurrences of that string. : The length of the string to be replaced, NN >0.
  • Page 170 ** Enter Setup 32 is the hex value for 2 (character in the string to be replaced) 33 is the hex value for 3 (character in the string to be replaced) 03 is the length of the replacement string 41 is the hex value for A (character in the replacement string) 42 is the hex value for B (character in the replacement string) 43 is the hex value for C (character in the replacement string) F1 is the “Send all characters”...
  • Page 171 ** Enter Setup EF Insert a delay Syntax＝EFnnnn (nnnn: The delay in 5ms increments, up to 9999) Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. This command can only be used with USB HID-KBW. EF Example: Insert a delay of 1s between the 5 and 6 character...

  • Page 172: Factory Defaults Table

    Appendix Factory Defaults Table Parameter Factory Default Remark General Settings Barcode Programming Enabled Programming Barcode Data Do not send Default Scan Mode Manual Mode 1,000~15,000ms Decode Session Timeout 15,000ms 0: Infinite Manual Mode Auto Sleep Enabled 500ms 0~6,000ms Time Period from Idle to Sleep 1,000~15,000ms Batch Mode Decode Session Timeout...
  • Page 173 Parameter Factory Default Remark Bad Read Message Max. 2 chars None Security Level 4 Power On Beep Good Read Beep Good Read Beep Frequency Medium Good Read Beep Volume Loud Good Read Beep Duration Long (120ms) 0~25,500ms Good Read LED Good Read LED Duration Short (100ms) 0~25,500ms...
  • Page 174 Parameter Factory Default Remark Function Key Mapping Disabled USB HID-KBW Emulate Numeric Keypad Disabled USB HID-KBW Polling Rate USB HID-KBW Code Page Code Page 1252 (Latin I) USB HID-KBW Prefix & Suffix Prefix Sequence Code ID+Custom+AIM ID AIM ID Prefix Disabled Max.
  • Page 175 Parameter Factory Default Remark 5-Digit Add-On Code Disabled Add-On Code Not required Convert EAN-8 to EAN-13 Disabled EAN-13 EAN-13 Enabled Check Character Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required EAN-13 Beginning with 290 Add-On Code Required Do Not Require Add-On Code EAN-13 Beginning with 378/379 Add-On Code Required Do Not Require Add-On Code...
  • Page 176 Parameter Factory Default Remark 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required Transmit Preamble Character System Character Interleaved 2 of 5 Interleaved 2 of 5 Enabled Check Character Verification Enabled Check Character Do not transmit Maximum Length Minimum Length No less than 5 Febraban...
  • Page 177 Parameter Factory Default Remark Minimum Length No less than 3 Matrix 2 of 5(European Matrix 2 of 5) Matrix 2 of 5 Enabled Check Character Verification Disabled Check Character Do not transmit Maximum Length Minimum Length No less than 3 Industrial 25 Industrial 25 Check Character Verification...
  • Page 178 Parameter Factory Default Remark Maximum Length No lesss than 4 (including Minimum Length start/stop characters and check character) Codabar Codabar Enabled Check Character Verification Disabled Check Character Do not transmit ABCD/ABCD Start/Stop Character Transmit Maximum Length Minimum Length No less than 1 Code 93 Code 93 Enabled...
  • Page 179 Parameter Factory Default Remark Check Character Do not transmit Maximum Length Minimum Length No less than 4 MSI-Plessey MSI-Plessey Disabled Check Character Do not transmit Check Character Verification 1 Check Character, MOD10 Maximum Length Minimum Length No less than 3 GS1 Databar GS1 Databar Enabled...

  • Page 180: Aim Id Table

    AIM ID Table Symbology AIM ID Possible AIM ID Modifiers (m) Code 128 UCC/EAN-128 AIM 128 EAN-8 EAN-13 EAN-13 with Add-On ISSN ISBN UPC-E UPC-E with Add-On UPC-A UPC-A with Add-On Interleaved 2 of 5, Febraban 0, 1, 3 ITF-6 1, 3 ITF-14 1, 3...

  • Page 181: Code Id Table

    Code ID Table Symbology Code ID Code 128 UCC/EAN-128 AIM 128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5, Febraban ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25 (Japanese Matrix 2 of 5) Matrix 2 of 5 (European Matrix 2 of 5) Industrial 25 Standard 25 Code 39, Code 32...

  • Page 182: Ascii Table

    ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3) (Device Control 4)
  • Page 183 Char (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Left/ Opening Parenthesis) (Right/ Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus/ Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) < (Less Than) (Equal Sign)
  • Page 184 Char > (Greater Than) (Question Mark) (AT Symbol) (Left/ Opening Bracket) (Back Slash) (Right/ Closing Bracket)
  • Page 185 Char (Caret/ Circumflex) (Underscore) (Grave Accent) (Left/ Opening Brace) (Vertical Bar) (Right/ Closing Brace) (Tilde) (Delete)

  • Page 186: Ascii Function Key Mapping Table

    ASCII Function Key Mapping Table ASCII Value ASCII Function No Function Key Mapping Function Key Mapping (HEX) (Null char.) Null Ctrl+2 Keypad Enter Ctrl+A (Start of Header) (Start of Text) Caps Lock Ctrl+B Null Ctrl+C (End of Text) Null Ctrl+D (End of Transmission) (Enquiry) Null...
  • Page 187 ASCII Function Key Mapping Table (Continued) The function key mappings of the last five characters in the previous table differ from one keyboard layout to another. Country/ Function Key Mapping Keyboard Layout United States Ctrl+[ Ctrl+\ Ctrl+] Ctrl+6 Ctrl+- Belgium Ctrl+[ Ctrl+<...

  • Page 188: Symbology Id Number

    Symbology ID Number Symbology ID Number Code 128 UCC/EAN-128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5, Febraban ITF-14 ITF-6 Matrix 2 of 5 Code 39, Code 32 Codabar Code 93 AIM-128 COOP 25 ISSN ISBN Industrial 25 Standard 25 Plessey Code 11 MSI-Plessey...

  • Page 189: Unicode Key Maps

    Unicode Key Maps 104 Key U.S. Style Keyboard...

  • Page 190: Digit Barcodes

    Digit Barcodes...

  • Page 191: Save/Cancel Barcodes

    Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.
  • Page 192 Delete All Digits: All digits “123” will be removed.  Cancel: The maximum length configuration will be cancelled. And the scanner is still in the setup  mode. Save Cancel Delete the Last Digit Delete All Digits...
