Summary of Contents for Caple C971G

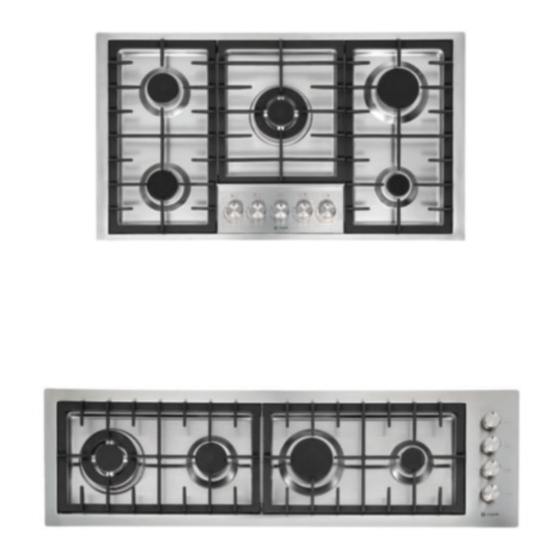

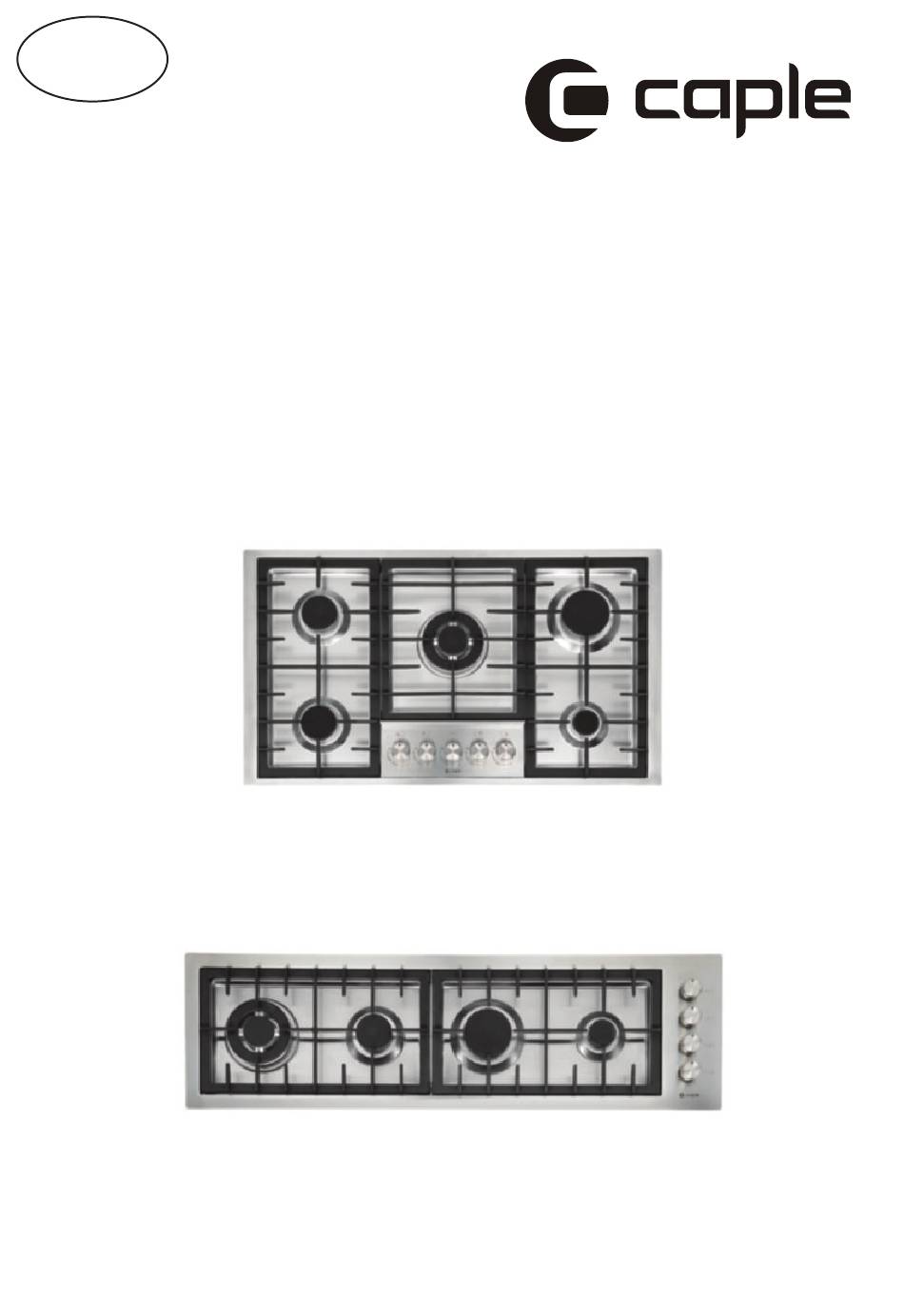

- Page 1 Instruction manual for gas hobs Model code: C971G Model code: C1071G Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
-
Page 2: General Notice
Dear Customer, We thank you and congratulate you on granting us your preference, by purchasin one of our products. We are sure that this new appliance, manufactured with quality materials, will meet your requirements in the best possible way. The use of this new equipment is easy. However, we invite you to read this booklet carefully, before installing and using the appliance. -
Page 3: Instructions For The User
INSTRUCTIONS FOR THE USER It is necessary that all the operations regarding the installation, adjustment and adaptation to the type of gas available are carried out by qualified personnel, in conformity with the regulations in force. The specific instructions are described in the booklet section intended for the installer. -
Page 4: Instructions For The Installer
C screws of the fastening hooks MODEL L (mm) P (mm) (fig.6/A). C971G Installation room C1071G 1080 This appliance is not provided with a device for exhausting the products of combustion. - Page 5 INSTRUCTIONS FOR THE INSTALLER Gas connection Adjusting the burners Make sure that the appliance is adjusted for The lowest flame point must always be properly the gas type available (see the label under the adjusted and the flame must remain on even if appliance).
- Page 6 CLOSE MAXIMUM MINIMUM...
-
Page 7: Technical Characteristic Tables
MODEL: C971G 1 Rapid burner 3000 W 2 Semi-rapid burner 1750 W 3 Auxiliary burner 1000 W 4 Triple ring burner 3800 W 8 Control knob for burner TECHNICAL CHARACTERISTIC TABLES TYPE BY NOMINAL NORMAL NOMINAL I N J E C T O R... - Page 8 MODEL: C1071G 1 Rapid burner 3000 W 2 Semi-rapid burner 1750 W 3 Auxiliary burner 1000 W 4 Triple ring burner 3500 W 8 Control knob for burner TECHNICAL CHARACTERISTIC TABLES TYPE BY NOMINAL NORMAL NOMINAL I N J E C T O R BURNERS PASS HEAT INPUT...
- Page 12 This product complies with EU Directive 2002/96/EC. The crossed-out dustbin symbol reported on the appliance indicates that the appliance must be disposed of separately from other domestic refuse at the end of its useful life. It must therefore be delivered to a waste recycling centre specifi cally for electric and electronic equipment or returned to the retailer at the moment of purchase of a new equivalent appliance.
