Summary of Contents for Caple C901I

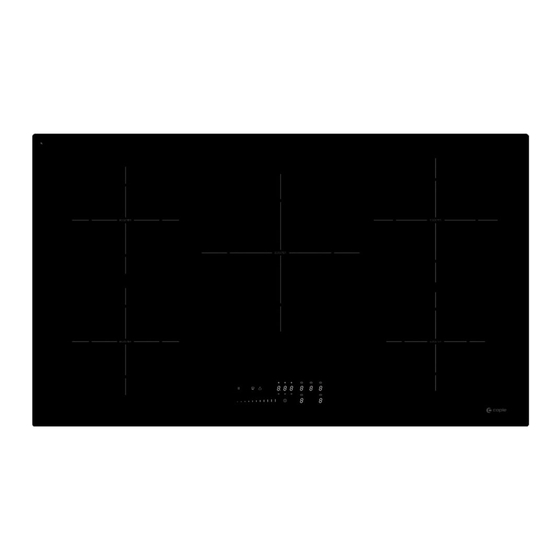

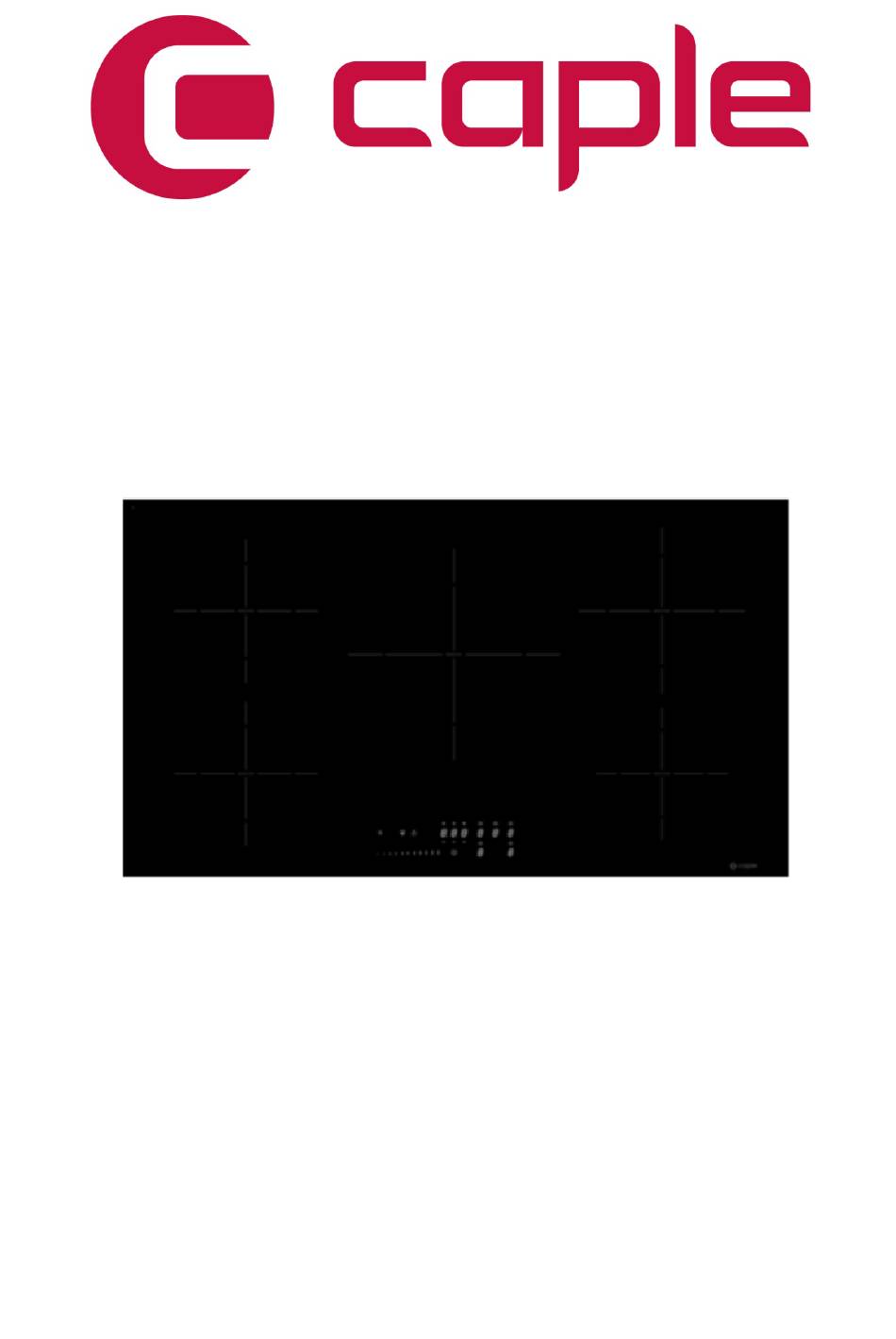

- Page 1 C901I Caple Sense 90cm Touch Control Induction Hob Service Manual...
- Page 2 Caple C901I Induction Hob INDUCTION HOB G5 – TC SLIM SLIDER 1. To detect the wrong breakdowns : 1-1 Connection to the electric network: Control the tightening of the screws of the connection box Control the section of the cables used (see manual of use) ...
- Page 3 Caple C901I Induction Hob 1-2 Installation : Control the installation of the gasket under the glass. If the glass is glued with silicone and in case of an after sales service: leave the glass in place and dismount the steel case under the work plan.
- Page 4 Caple C901I Induction Hob In case of overheating of the heating zones, an automatic and progressive reduction of the power takes place. 2. To determine the breakdown according to the indications of the control panel. 2-1 Normal Display (according to the models)
- Page 5 Caple C901I Induction Hob 2-3 Fast starting : When the hob is connected to the electric network, the displays’ segments scroll clockwise. After that, press the key [0/I] (On/Off), « 0 » appears. If no handling is made within 20 seconds, everything switches off.
- Page 6 Caple C901I Induction Hob PROCEDURE OF CONFIGURATION (E4) - TC SMART SLIDER A. Disconnect the hob from the electrical network. B. Connect the network and take into account that the configuration setting has to be made in a maximum time of 2 minutes (If the time goes over, the procedure must be begun again from stage A).
-
Page 7: Error Codes
Caple C901I Induction Hob ERROR CODES Legend: Visual Control TC = Touch Control panel Cable LIN = White Cable 0.25 mm (ex : connection between TC and Filter Board PCB). No appropriated measure IHE = Induction Heating Element Measure with multimetre... - Page 8 Caple C901I Induction Hob Error Code Description Potential Failure Measure What to do… Temperature sensor indicates overheat of induction coil A cool down is necessary Error is Cooking zone has overheated disappearing when cooling down IHE over temperature (maybe pot boiled without Wrong algorithm calculated food...)
- Page 9 Caple C901I Induction Hob Error Code Description Potential Failure Measure What to do… Frequency problem Check the frequency and voltage Network failure Overvoltage Replace the IHE Compatibility problems Unknown error Replace IHE or TC between IHE and TC Fan or control electronics...
- Page 10 Caple C901I Induction Hob Error Code Description Potential Failure Measure What to do… As soon as the hob is installed, please check if it works properly. If you cannot turn on the appliance, please double check the electrical connections on both sides of the power cord.
- Page 11 Caple C901I Induction Hob Error Code Description Potential Failure Measure What to do… Key evaluation defect, Touch Control switches off after Short circuit or interruption Er22 Replace TC 3,5- around key evaluation 7,5s. Er 03 + continuously Continuous key activation, Liquid or cookware on glass “sound”...
-
Page 12: Wiring Diagram
WIRING DIAGRAM Caple C901I Induction Hob X2.1 X1.4 IHE : Induction Heating Element TC : Touch Control CB : Connection Box...
