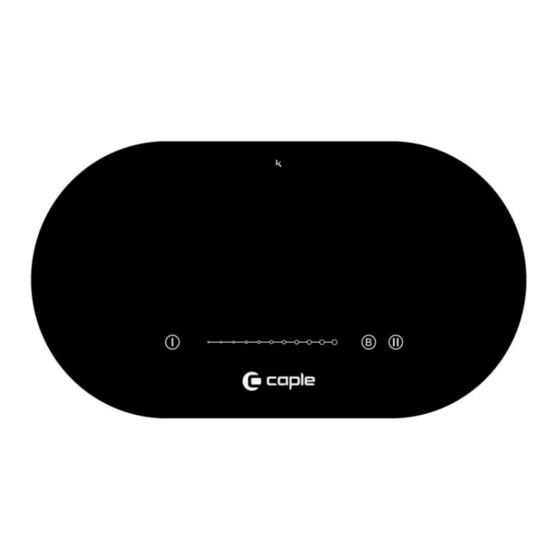

Instruction manual for induction hob
Model code: C950I
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C950I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caple C950I

Summary of Contents for Caple C950I

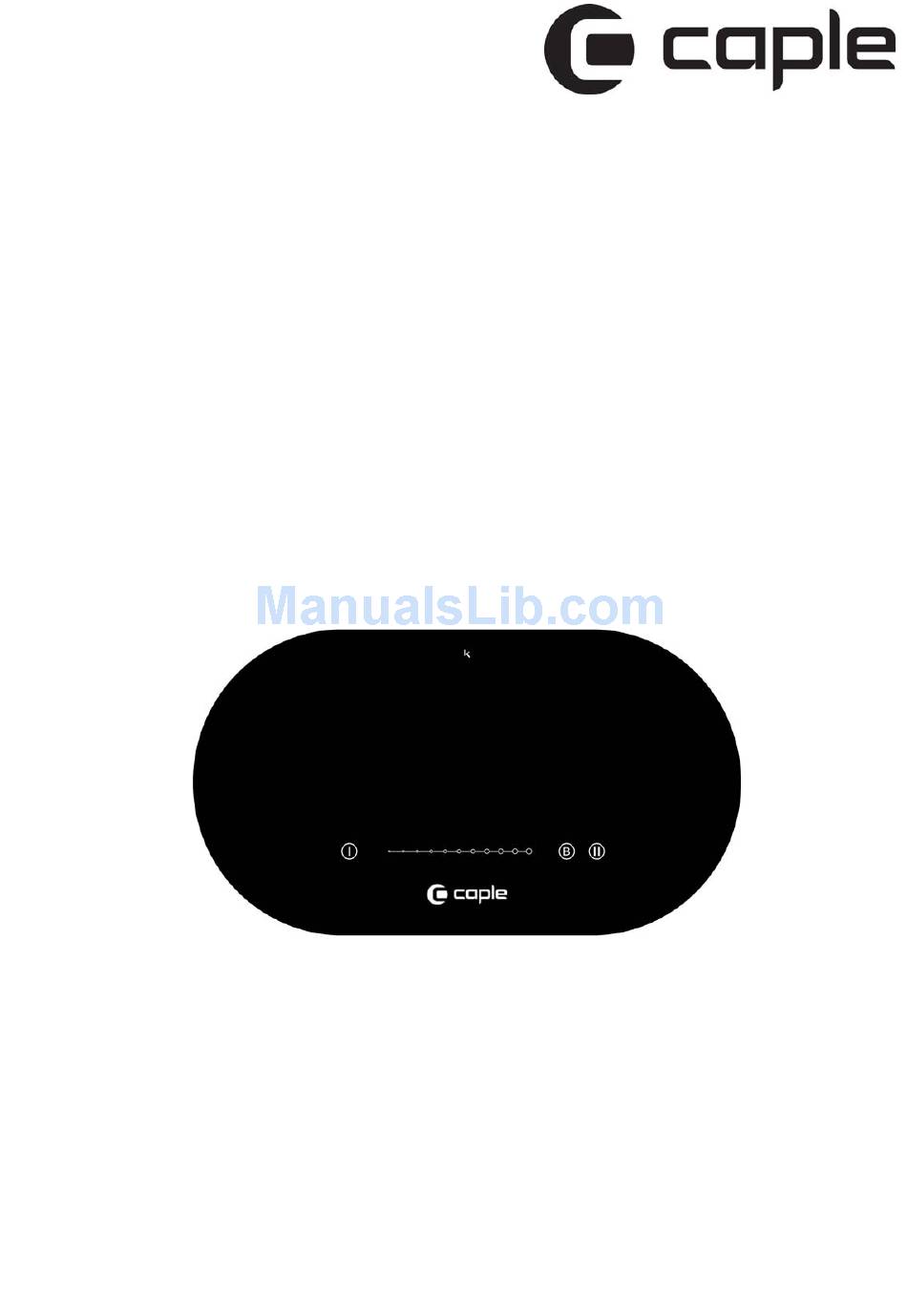

  • Page 1 Instruction manual for induction hob Model code: C950I Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...

  • Page 3: Table Of Contents

    Summary Safety ..........................4 Precautions before using ....................4 Using the appliance ......................5 Precautions not to damage the appliance ................ 6 Precautions in case of appliance failure ................6 Other protections ......................7 Description of the appliance ................... 8 Technical data .........................

  • Page 4: Safety

    Safety Precautions before using  Unpack all the materials.  The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by installation or connection errors.  To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.

  • Page 5: Using The Appliance

    Using the appliance  Switch the heating zones off after using.  Keep an eye on the cooking especially when using grease or oils, which may quickly ignite.  Be careful not to burn yourself while or after using the appliance. ...

  • Page 6: Precautions Not To Damage The Appliance

    Precautions not to damage the appliance  Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.  Sand or other abrasive materials may damage ceramic glass.  Avoid dropping objects, even little ones, on the hob glass. ...
  • Page 7 Other warnings  Make sure that the pot or pan is always centred on the cooking zone. The bottom of the pan must cover as much of the cooking zone as possible.  For users with a pacemaker, the magnetic field could influence its operation.

  • Page 8: Description Of The Appliance

    Booster Power * Power detection 2 zones: 300mm 2300 W 3000 W 120 mm C950I 7400 w 2 zones: 270mm 1100 W 1400 W 90 mm * The given power may change according to the dimensions and material of the pan.

  • Page 9: Ventilation

    Ventilation The cooling system is fully automatic. The cooling fan starts with a low speed when the heat brought out by the electronic system reach a certain level. The ventilation starts at high speed when the hob is intensively used. The cooling fan reduces speed and stops automatically when the electronic circuit is cooled enough.

  • Page 10: Starting-Up

    Starting-up  Start / switch off the hob: Action Control panel Display To start press key [ [ 0 ] To stop press key [ nothing or [ H ]  Start / switch off a heating zone: Action Control panel Display Zone selection press display [ 0 ] selected...

  • Page 11: Booster Function

    Booster function The booster function [ B ] grants a boost of power to the selected heating zone. If this function is activated the heating zones work for 10 minutes with an ultra-high power. The booster is used for example to heat up rapidly big quantities of water, for cooking noodles etc. ...

  • Page 12: Automatic Cooking

     Egg timer function : Example for 29 minutes : Action Control panel Display Activate the hob press display [ zone control lights are on Select« Timer » press display [ CL ] [ 00 ] Set the units slide on the “slider “ to [ 9 ] [ 0 fixed ] [ 9 flashing] Validate the units press display [ 09 ]...

  • Page 13: Recall Function

    Recall Function After switching off the hob, it is possible to recall the last settings:  cooking stages of all cooking zones (power)  minutes and seconds of programmed cooking zone-related timers  Heat up function The recall procedure is following: ...

  • Page 14: Cooking Advice

    Cooking advice Pan quality Recommended materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with a ferromagnetic bottom. Materials not suitable: aluminium and stainless-steel without a ferromagnetic bottom, copper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible induction. To check if pans are compatible: ...

  • Page 15: Examples Of Power Settings

     The bottom diameter of the pan is too small. The symbol [ C ] or [ E ] displays  Contact Caple Service by telephoning 0117 938 7420 or emailing service@caple.co.uk The control panel displays [ L ]: Refer to the chapter control panel locking.

  • Page 16: Environment Protection

    The control panel displays [ E3 ] ou [ E7 ] :  The pan is not suitable for induction cooking, change the pan. If one of the symbols above persists, contact Caple Service by telephone 0117 938 7420 or by email service@caple.co.uk.

  • Page 17: Installation Instructions

    Installation instructions The installation comes under the exclusive responsibility of specialists. The installer is held to respect the legislation and the standards enforce in his home country. How to apply the gasket The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. The installation has to be done carefully, in conformity of the following drawing.
  • Page 18 CE Declarations of Conformity This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC).
  • Page 20 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 19566/0...
  • Page 21 Installation guide for induction hob Model code: C950I Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
  • Page 22 Summary Description of the appliance ...................... 3 Appliances and installation dimensions ..................3 Installation of the multizones ....................3 Installation ..........................4 Ventilation ..........................4 Installation instructions ......................5 Connecting the different elements ................... 6 Connecting the cooking zones ....................6 Configeration procedure ......................

  • Page 23: Description Of The Appliance

    57mm 57mm 35mm Power 1100W 2300W Booster power 1400W 3000W The dimensions of technical box C950I-004 are: 270x210x48mm Please refer to the worktop manufacturer for the minimum spacing required between each zone cut out to maintain the required supporting strength.

  • Page 24: Installation Of The Multizones

    Installation of the multizones Installation  Unpack all the components.  The installation and connection of the appliance must be done by approved specialists. The manufacturer cannot be held responsible for damage caused by the installation or any connection errors. ...

  • Page 25: Installation Instructions

     NOTE : Please refer to the worktop manufacturer for the minimum spacing required between each zone cut out to maintain the required supporting strength.  If any of the above is unclear, please contact Caple Service for advice on the installaiton before begining the proceedure.

  • Page 26: Connecting The Different Elements

    Connecting the different elements The installation of this appliance and the connection to the electrical network should be made by an electrician perfectly aware, and in respect of the normative regulations Connecting the cooking zones Each connector of the cooking zones, is located by a sticker with the classification from 5 to 8 corresponds to: ...

  • Page 27: Configeration Procedure

    Never put several pots together on the zones during the setup-process. What to do in case of a problem The symbol [ E4] appears :  Reconfigure the table  If the symbol remains, please contact Caple service on 0117 938 7420 or by email service@caple.co.uk...

  • Page 28: Electrical Connection

    Electrical connection  The installation of this appliance and the connection to the electrical network should be en- trusted only to an electrician who will comply to the normative regulations and who respects them scrupulously.  Protection against parts under tension must be ensured after the installation. ...
  • Page 32 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 19565/0...
