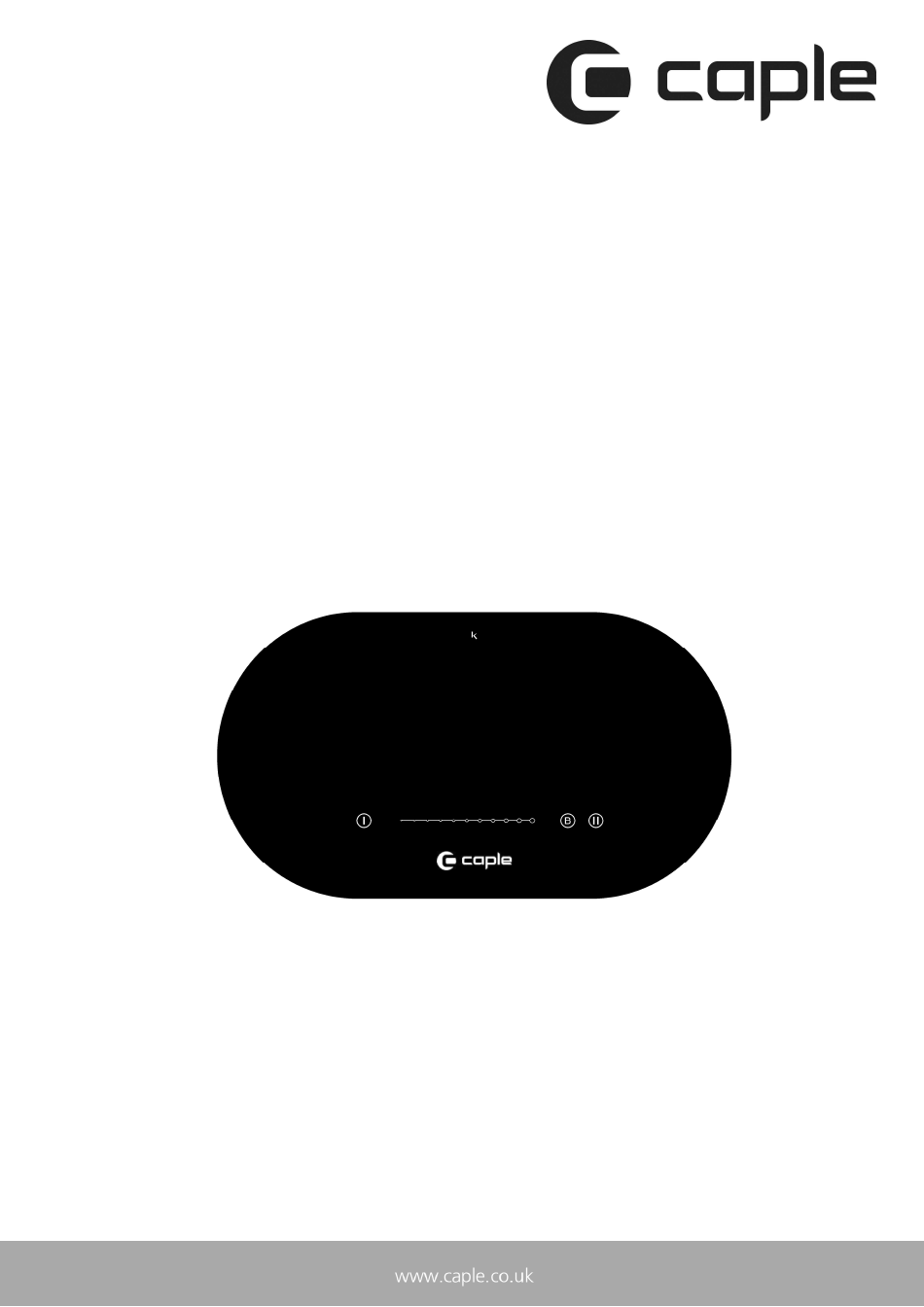

- Page 1 Instruction manual for induction hob Model code: C950I Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
- Page 2 Dear customers, Congratulations on your purchase of a Caple induction hob. In order to make the best use of your appliance, please carefully read the following use and care manual and keep it for reference.
-
Page 3: Table Of Contents
SUMMARY ............................4 SAFETY ....................4 RECAUTIONS BEFORE USING ......................5 SING THE APPLIANCE ..............6 RECAUTIONS NOT TO DAMAGE THE APPLIANCE ............... 7 RECAUTIONS IN CASE OF APPLIANCE FAILURE ......................7 THER PROTECTIONS ....................... 8 ENVIRONMENTAL PROTECTION ....................8 CE DECLARATIONS OF CONFORMITY ........................... -
Page 4: Safety
SAFETY Precautions before using • Unpack the hob and all associated components, taking care not to lose or mishandle any parts. • The appliance must be installed by a suitably qualified professional and connected to the electricity supply by a qualified electrician who will comply with the local regulations. -
Page 5: Using The Appliance
Using the appliance • Always switch cooking zones off after use. • Take particular care when cooking with oils or fats that may ignite. • Cooking pans and ustensils and the hob itself become hot during use. Caution, risk of injury to people and pets both during and after use. -
Page 6: Precautions Not To Damage The Appliance
Precautions not to damage the appliance • Use of damaged pans or those with raw cast iron bottoms may damage the hob ceramic glass. • Abrasive materials such as scouring cleaners and grits may damage the ceramic glass. • Avoid dropping objects onto the ceramic glass. •... -
Page 7: Precautions In Case Of Appliance Failure
Precautions in case of appliance failure • If a fault is noticed, switch off the appliance and turn off the electricity supply. • There are no user-serviceable parts inside the appliance. Don’t open the appliance by yourself. All repairs must be performed by a suitably qualified service engineer or similar. -
Page 8: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. Spare parts are only... -
Page 9: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Technical characteristics Type C950I Total power 7400 W Energy consumption for the hob EC 178.3 Wh/kg Heating zone Ø 300 mm Minimum detection Ø 100 mm Nominal power* 2300 W Booster power* 3000 W Standardised cookware category** Energy consumption EC 180.7 Wh/kg... -
Page 10: Use Of The Appliance
USE OF THE APPLIANCE Display Display Designation Function Zero The heating zone is activated. 1…9 Power level Selection of the cooking level. Pan detection No pan or inadequate pan. Heat accelerator Automatic cooking. Error message Electronic failure. Residual heat The heating zone is hot. Booster The boosted power is activated. -
Page 11: Power Selection Zone "Slider" And Timer Setting Zone
Power selection zone “SLIDER” and timer setting zone To select the power with the slider, slide your finger on the “SLIDER” zone. You can also select the power by placing your finger directly on the chosen level. Power selection zone “slider” and timer setting zone Slider Direct access... -
Page 12: Booster Function
Booster function The booster function [ P ] grants a boost of power to the selected heating zone. If this function is activated the heating zones work for 10 minutes with an ultra-high power. The booster is used for example, to rapidly heat up big quantities of water. •... -
Page 13: Automatic Cooking
• Egg timer function: Egg timer is an independent function. It stops as soon as a heating zone starts up. If the egg timer is on and the hob is switched off, the timer continues until time runs out. Example for 29 minutes: Action Control panel Display... -
Page 14: Recall Function
Recall Function After switching off the hob ( ), it is possible to recall the last settings. • Cooking stages of all cooking zones (power) • Minutes and seconds of programmed cooking zone-related timers • Heat up function The recall procedure is following: •... -
Page 15: Cooking Advice
COOKING ADVICE Choosing the Right Cookware Adapted materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom. Non-adapted materials: aluminium and stainless-steel without ferromagnetic bottom, copper, brass, glass, ceramic, porcelain. Look for the induction symbol on the packaging or on the bottom of the pan. To check if pans are compatible: •... -
Page 16: Examples Of Power Settings
• The bottom diameter of the pan is too small. The symbol [ C ] or [ E ] displays: • Contact Caple Service by telephoning 0117 938 7420 or emailing service@caple.co.uk The control panel displays [ L ]: • Refer to the chapter control panel locking. - Page 17 The control panel displays [ E3 ] ou [ E7 ]: • The pan is not suitable for induction cooking, change the pan. If one of the symbols above persists, contact Caple Service. T - 0117 938 7420 E - service@caple.co.uk.
-
Page 18: Installation Instructions
INSTALLATION INSTRUCTIONS The installation comes under the exclusive responsibility of specialists. The installer is held to respect the legislation and the standards enforced in their country. How to stick the gasket: The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. The installation has to be done carefully, in conformity of the following drawing. - Page 19 Ventilation requirements To ensure adequate ventilation of your induction hob, please ensure the installation requirements shown in this diagram are followed. A 5mm gap at the front of the unit must be left, and a minimum 10mm gap must be cut out at the back of the cabinet to allow air to circulate.
- Page 20 Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk 19566-2 Please keep this instruction manual for future reference...
