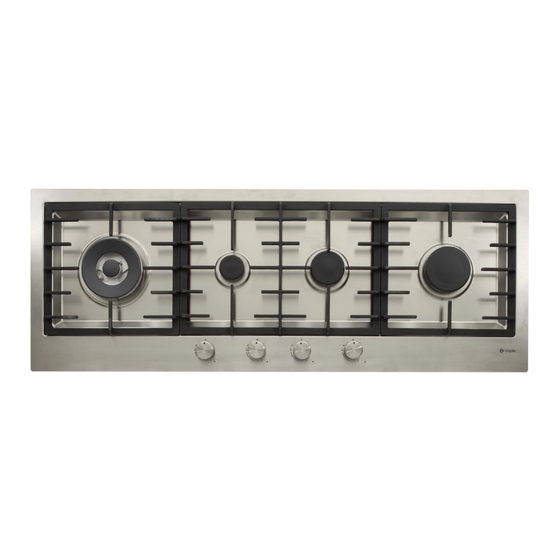

Instruction manual for gas hobs
Model code: C1072G, C972G
Contact Caple on 0844 800 3830 or for spare parts www.caple.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the C1072G and is the answer not in the manual?

Questions and answers

Summary of Contents for Caple C1072G

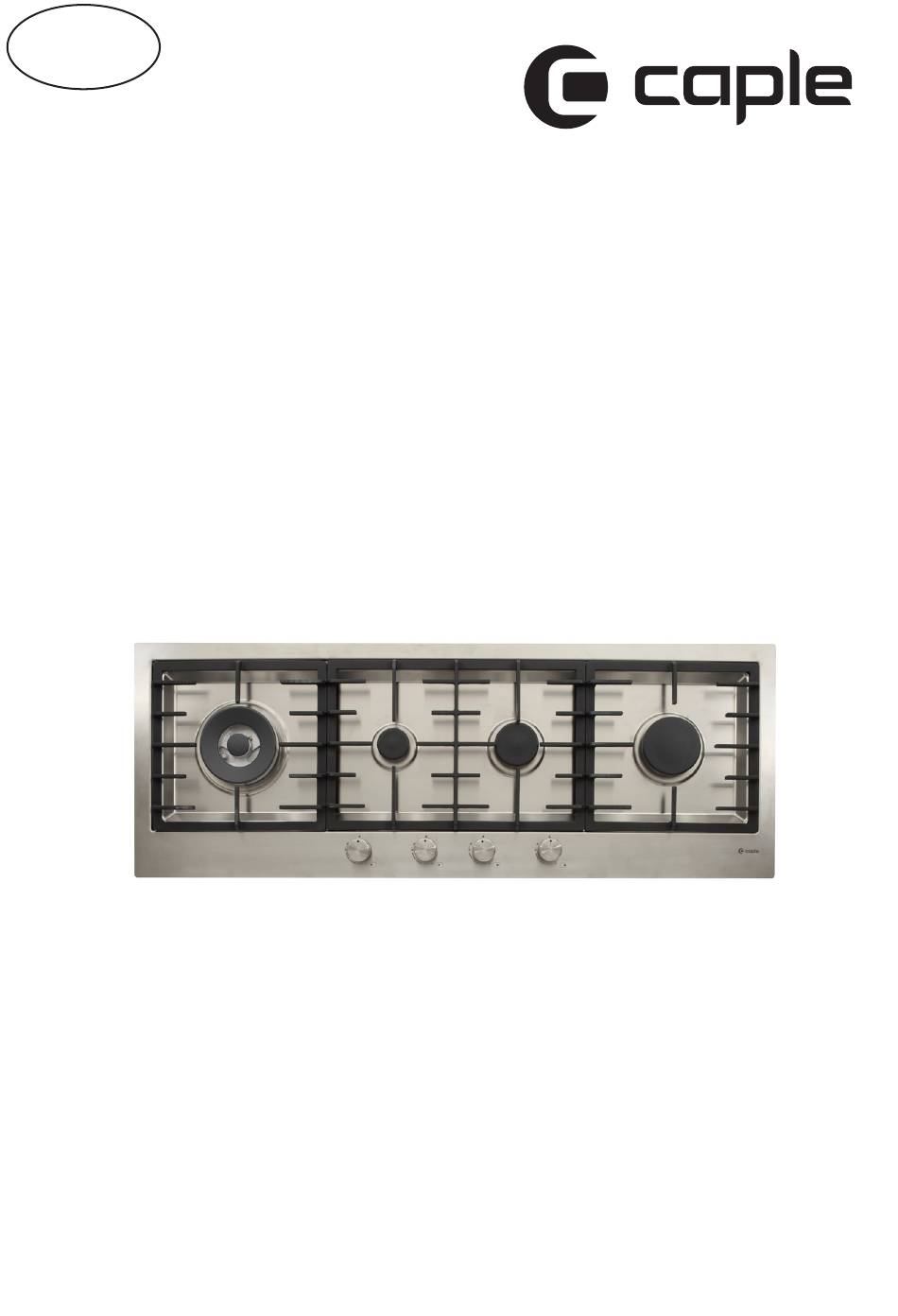

  • Page 1 Instruction manual for gas hobs Model code: C1072G, C972G Contact Caple on 0844 800 3830 or for spare parts www.caple.co.uk...
  • Page 2: General Notice

    The use of this new equipment is easy. However, we suggest you to read this booklet carefully, before installing and using the appliance. This booklet gives the best information on the installation, use and maintenance, as well as useful advice. Caple CAPLE GENERAL NOTICE Please read this instruction booklet carefully, before installing and using the equipment.
  • Page 3: Instructions For The User

    (see In case of hardening or malfunctions in the gas fig.1). taps, please contact Caple Service. - If the flame should blow out accidentally, the safety valve will automatically stop the gas supply,...
  • Page 4: Instructions For The Installer

    INSTRUCTIONS FOR THE INSTALLER IMPORTANT NOTICE: THE OPERATIONS INDICATED BELOW MUST BE FOLLOWED BY QUALIFIED PERSONNEL EXCLUSIVELY, IN CONFORMITY WITH THE REGULATIONS IN FORCE. THE MANUFACTURING FIRM REFUSES ALL RESPONSIBILITY FOR DAMAGES TO PEOPLE, ANIMALS OR THINGS, RESULTING FROM THE FAILURE TO COMPLY WITH SUCH PROVISIONS. INSTALLATION Fastening the top Every cook-top is equipped with a special washer.
  • Page 5 INSTRUCTIONS FOR THE INSTALLER Gas connection Adjusting the burners Make sure that the appliance is adjusted for The lowest flame point must always be properly the gas type available (see the label under the adjusted and the flame must remain on even if appliance).
  • Page 6 Closed Maximum Minimum...
  • Page 7 C972G C1072G 1 Rapid burner 3000 W 2 Semi-rapid burner 1750 W 3 Auxiliary burner 1000 W 4 Triple ring burner 3800 W 6 Triple ring burner 4000 W 8 Control knob for burner...
  • Page 8: Technical Characteristic Tables

    TECHNICAL CHARACTERISTIC TABLES NORMAL NOMINAL TAPE BY NOMINAL INJECTOR BURNERS PRESSU- HEAT INPUT PASS RATE DIAMETER DIAMETER N° mbar 1/100 mm 1/100 mm Max. Min. DESCRIPTION G30 / G31 28-30 / 37 3000 RAPID 115Y Reg. 3000 G30 / G31 28-30 / 37 1750 SEMI-RAPID...
  • Page 9 INSTALLATION MODEL C972G...
  • Page 10 INSTALLATION MODEL C1072G...
  • Page 12 The manufacturing firm refuses all responsibility for any possible imprecision in this booklet, due to misprints or clerical errors. It reserves the right to make all the changes that it will consider necessary in its own products, without effecting the essential characteristics of functionality and safety. Caple Fourth Way Avonmouth...

This manual is also suitable for:

C972g
