BATTERY PACKS
• BaUery pack replacement
Before replacing the battery pack, push and hold the power
switch to turn the power OFF.
.. To remove the battery pack from the transceiver:
Push and hold the battery pack release button forward (in
the direction of the transceiver's front panel) then slide the
battery off the transceiver.
.. To attach the battery pack to the transceiver:
Align the 4 holes in the battery pack with the 4 prongs on
the exposed transceiver chassis, then slide the battery
pack until it snaps into place.

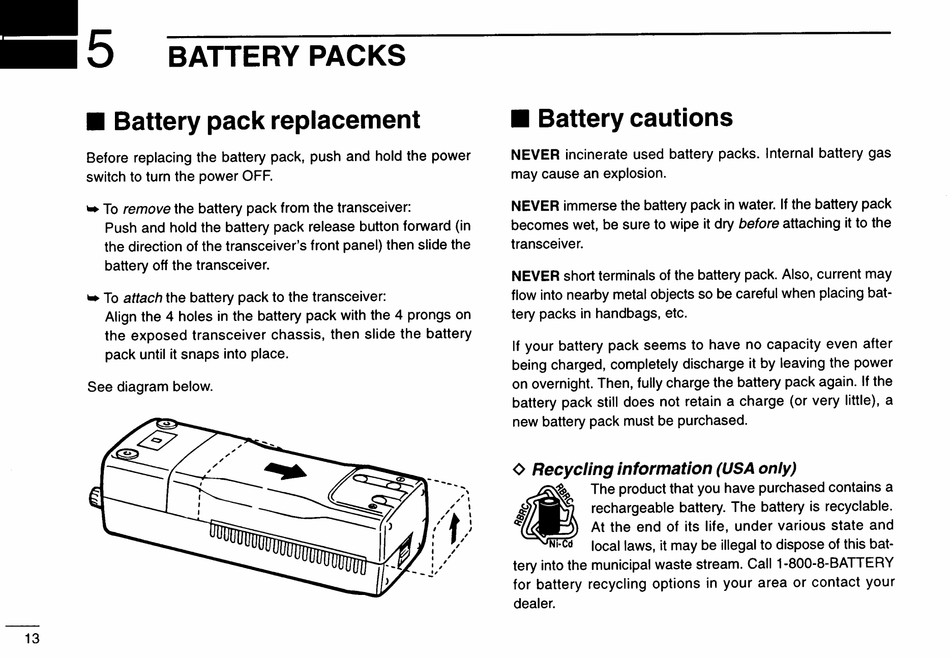

See diagram below.
13
• BaUery cautions
NEVER incinerate used battery packs. Internal battery gas
may cause an explosion.
NEVER immerse the battery pack in water. If the battery pack
becomes wet, be sure to wipe it dry before attaching it to the
transceiver.
NEVER short terminals of the battery pack. Also, current may
flow into nearby metal objects so be careful when placing bat-
tery packs in handbags, etc.
If your battery pack seems to have no capacity even after
being charged, completely discharge it by leaving the power
on overnight. Then, fully charge the battery pack again. If the
battery pack still does not retain a charge (or very little), a
new battery pack must be purchased.
<>
Recycling information
(USA only)
• ~
The product that you have purchased contains a
~ ~
rechargeable battery. The battery is recyclable.
9)
~
At the end of its life, under various state and
NI- d
local laws, it may be illegal to dispose of this bat-
tery into the municipal waste stream. Call 1-800-8-BATTERY
for battery recycling options in your area or contact your
dealer.
