3

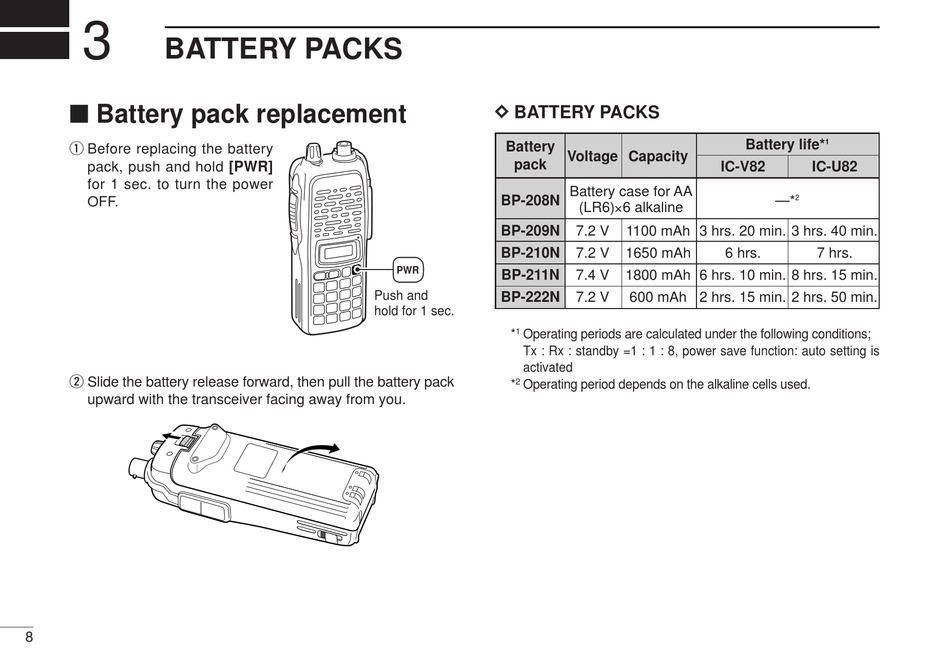

BATTERY PACKS

■ Battery pack replacement

q Before replacing the battery
pack, push and hold [PWR]
for 1 sec. to turn the power
OFF.
w Slide the battery release forward, then pull the battery pack
upward with the transceiver facing away from you.
8
D D BATTERY PACKS
Battery
pack
BP-208N
BP-209N
BP-210N
PWR
BP-211N
Push and
BP-222N
hold for 1 sec.
1
* Operating periods are calculated under the following conditions;
Tx : Rx : standby =1 : 1 : 8, power save function: auto setting is
activated
2
* Operating period depends on the alkaline cells used.
Battery life*
Voltage Capacity
IC-V82
Battery case for AA
(LR6)×6 alkaline
7.2 V 1100 mAh 3 hrs. 20 min. 3 hrs. 40 min.
7.2 V 1650 mAh 6 hrs.
7.4 V 1800 mAh 6 hrs. 10 min. 8 hrs. 15 min.
7.2 V 600 mAh 2 hrs. 15 min. 2 hrs. 50 min.
1
IC-U82
—* 2
7 hrs.
