GeoVision GV-IP Series User Manual page 21

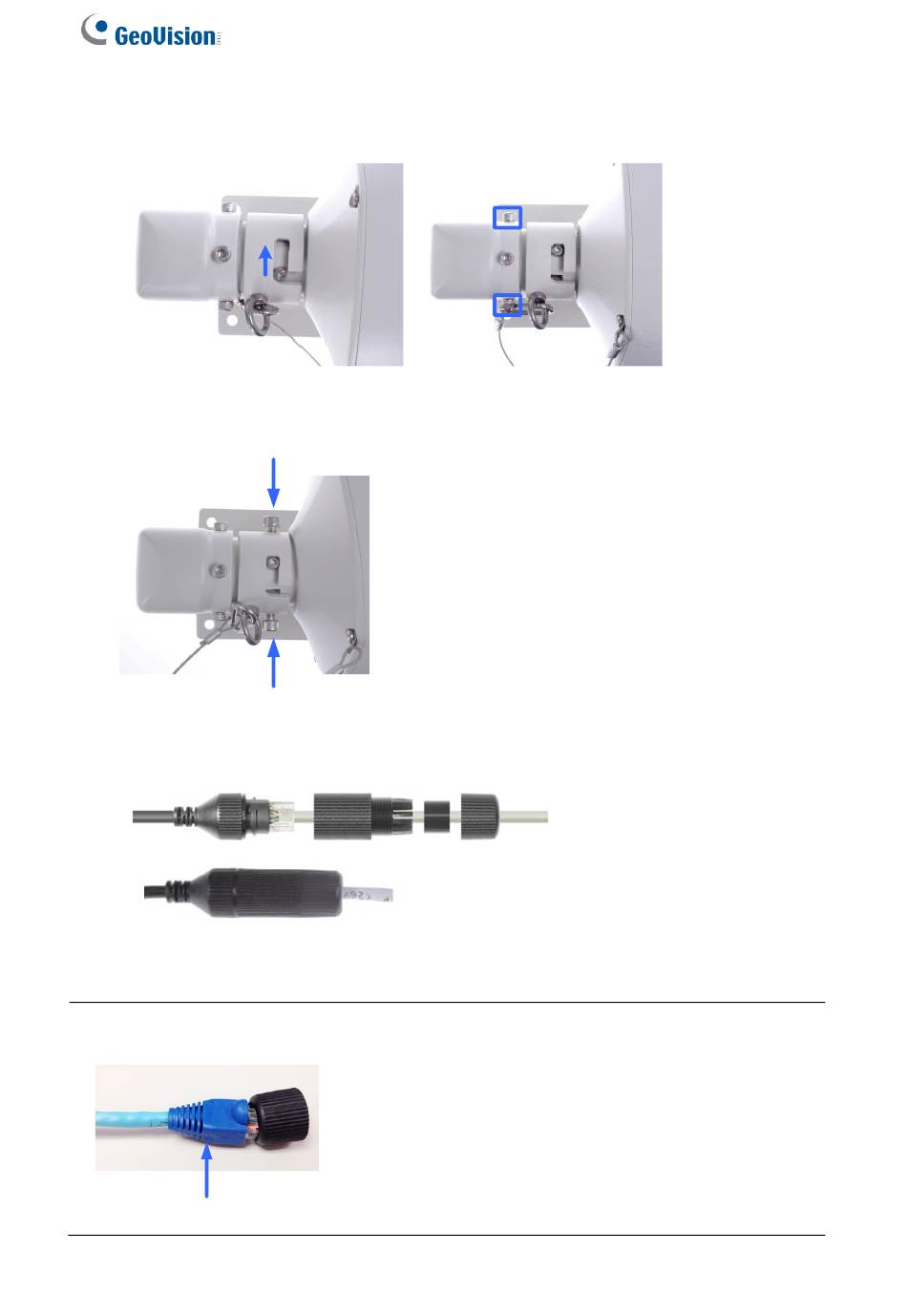

7. Attach the camera to the pendant tube, rotate the camera until it is locked into
position, and secure the indicated screws.
8. Insert the pendant mount screws and tighten with the supplied M4 hex key.
9. Thread the Ethernet cable through the waterproof rubber set as shown below.
Note: The size of RJ-45 connector must be within 14 mm to go through the waterproof
rubber set.
Unfit size of RJ45 Connector
10
Figure 1-11
Figure 1-12
Figure 1-13
