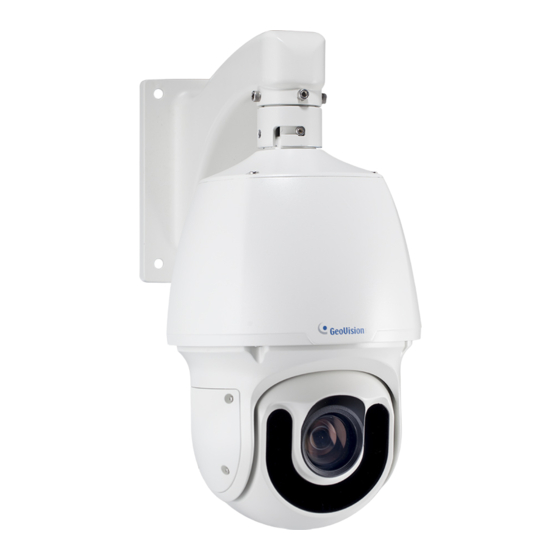

GeoVision GV-SD2722-IR User Manual
  1. Manuals
  2. Brands
  3. GeoVision Manuals
  4. IP Camera
  5. GV-SD2722-IR
  6. User manual

GeoVision GV-SD2722-IR User Manual

Hide thumbs Also See for GV-SD2722-IR:
Table of Contents

Advertisement

Quick Links

GV-IP Speed Dome
GV-SD2322-IR
GV-SD2722-IR
GV-SD3732-IR
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
User's Manual
ISD2722IRV101-UM-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-SD2722-IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-SD2722-IR

Summary of Contents for GeoVision GV-SD2722-IR

  • Page 1 GV-IP Speed Dome User's Manual GV-SD2322-IR GV-SD2722-IR GV-SD3732-IR Before attempting to connect or operate this product, ISD2722IRV101-UM-A please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3 Preface Welcome to the GV-IP Speed Dome User’s Manual. This Manual is designed for the following models and firmware versions: Model Model Number Firmware Version GV-SD2322-IR V1.0 IP Speed Dome GV-SD2722-IR / GV-SD3732-IR V1.01...

  • Page 4: Table Of Contents

    Contents Naming Definition..............v Note for Connecting to GV-VMS / DVR / NVR .......vi Note for Recording ..............vii Note for Installing Camera Outdoor ........viii Chapter 1 Introduction ............1 1.1 Key Features ......................2 1.2 Packing List ......................4 1.3 System Requirements.................... 5 1.4 Optional Accessories .....................
  • Page 5 4.1.2 Local Settings..................36 4.2 Network ........................38 4.2.1 TCP/IP / Network..................38 4.2.2 Port......................40 4.2.3 FTP......................41 4.2.4 E-mail ......................43 4.2.5 DDNS ......................45 4.2.6 Port Mapping ...................47 4.2.7 802.1x .....................48 4.3 Video & Audio .......................49 4.3.1 Video ......................49 4.3.2 Audio ......................51 4.3.3 Capture / Snapshot...................52 4.3.4 ROI ......................53 4.3.5 Media Stream ...................54 4.4 PTZ........................56...
  • Page 6 4.8.2 Recording Download ................84 4.9 Security.........................85 4.9.1 User......................85 4.9.2 Network Security..................85 4.10 System........................87 4.10.1 Time .......................87 4.10.2 Maintenance ...................89 4.10.3 Security....................91 4.10.4 Ports and Device ..................93 Chapter 5 Recording and Playback ........94 5.1 Recording ......................94 5.2 Playback from the Memory Card................95 Chapter 6 Advanced Applications ........97 6.1 Upgrading System Firmware.................97 6.1.1 Using the Web Interface ................98...

  • Page 7: Naming Definition

    Naming Definition GV-DVR / NVR GeoVision Analog and Digital Video Recording Software. The GV-DVR also refers to GV-Multicam System or GV-Hybrid DVR. GV-VMS GeoVision Video Management System for IP cameras.

  • Page 8: Note For Connecting To Gv-Vms / Dvr / Nvr

    Note for Connecting to GV-VMS / DVR / NVR The GV-IP Speed Dome is designed to work with and record on GV-VMS / DVR / NVR, a video management system. Once the camera is connected to the GV-VMS / DVR / NVR, the resolution set on the GV- VMS / DVR / NVR will override the resolution set on the camera’s Web interface.

  • Page 9: Note For Recording

    Note for Recording By default, the images are recorded to the memory card inserted in the GV-IP Speed Dome. Mind the following when using a memory card for recording:  Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan.

  • Page 10: Note For Installing Camera Outdoor

    Note for Installing Camera Outdoor When installing the camera outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables. Any power, audio and I/O cables are waterproofed using waterproof silicon rubber or the like.

  • Page 11: Chapter 1 Introduction

    This camera can simultaneously deliver three video streams in resolutions up to 1920 x 1080 at 30 fps (GV-SD2322-IR), 1920 x 1080 at 60 fps (GV-SD2722-IR), or 2048 x 1536 at 30 fps and 1920 x 1080 at 60 fps (GV-SD3732-IR). In low-light environments, night vision is enhanced with its high-power LEDs, which allow up to 150 m (492 ft) or 200 m (656 ft, GV-SD2722-IR) effective IR distance.

  • Page 12: Key Features

     Intelligent IR  IR distance up to 150 m (492 ft) IR distance up to 200 m (656 ft) (for GV-SD2722-IR only)  Day and night function (with removable IR-cut filter)  Two sensor inputs and one alarm output ...
  • Page 13 Introduction  PTZ movement (Preset, Auto Pan and Patrol)  PTZ patrol by schedule  Smart settings (Cross line, Intrusion, Auto tracking) (for GV-SD2722-IR / SD3732-IR only)  Intelligent Mark (for GV-SD2722-IR / SD3732-IR only)  Auto focus  3D noise reduction ...

  • Page 14: Packing List

    1.2 Packing List   IR IP Speed Dome 24V AC Power Adapter   M4 Hex Key Waterproof Rubber Set  Waterproof Guidelines  Download Guide  Warranty Card...

  • Page 15: System Requirements

    Introduction 1.3 System Requirements Intel Core i5-4670, 3.40 GHz Memory DDR3 8 GB RAM On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later required) Web Browsers Internet Explorer 11.0 or above   Google Chrome Mozilla Firefox ...

  • Page 16: Optional Accessories

    1.4 Optional Accessories Optional accessories can expand the capabilities and versatility of your GV-IP Speed Dome. Contact your dealer for more information. Model Number Name Details GV-Mount104 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x 13.1”) Weight: 1.8 kg (3.97 lb) Straight Tube and GV-Mount105...
  • Page 17 Introduction GV-Mount300-1 Convex Corner Dimensions: 238.6 x 395.2 x 210 mm Adapter Kit (9.4’’ x 15.5” x 8.2”) Weight: 4.27 kg (9.41 lb) GV-Mount310-1 Concave Corner Dimensions: 111.2 x 369.9 x 210 mm Adapter Kit (4.37’’ x 14.5” x 8.2”) Weight: 2.96 kg (6.53 lb) Pole Mount Bracket Dimensions:...

  • Page 18: Physical Description

    1.5 Physical Description Figure 1-1 Name Function Resets all configurations to default factory settings. See Default Button 6.2 Restoring to Factory Default Settings. Inserts a micro SD card (SDHC/SDXC, Class 10) to store Micro SD Card Slot recording data.

  • Page 19: Accessory Installation (Wall Pendant Mount)

     GV-Mount210 (purchased required)  Wall screws x 4 (user-prepared) Figure 1-2 Note: GV-SD2722-IR / SD3732-IR supports a series of Intelligent functions, which work best when the installation abides by specific requirements. See 4.6.1 Recommended Scenario for details. Unscrew the back cover of the camera.
  • Page 20 Insert the micro SD card into the slot, and secure the back cover of the camera. Figure 1-4 Note: Be sure to format the memory card on the camera’s Web interface. See 4.7.1 Storage for details. Place the pendant tube on the wall, and mark the position of the screw holes. Figure 1-5 Drill holes on the wall, and secure the pendant tube to the wall with 4 self-prepared screws.
  • Page 21 Introduction Thread the data cable through the pendant tube. Figure 1-7 Attach the camera to the pendant tube, rotate the camera until it is locked into position, and secure the indicated screws. Figure 1-8 Insert the pendant mount screws and tighten with the supplied M4 hex key. Figure 1-9...
  • Page 22 Thread the Ethernet cable through the waterproof rubber set as shown below. Figure 1-10 Note: The size of RJ-45 connector must be within 14 mm to go through the waterproof rubber set. Unfit size of RJ45 Connector...

  • Page 23: Connecting The Camera

    Introduction 1.7 Connecting the Camera The camera comes with a data cable that allows you to connect the camera to the power adapter, microphone, speaker, and I/O devices. Figure 1-11 Connect the supplied power adapter to the 3-pin terminal block. Either of the red or black cables can be used for anode (+) and the cathode (-).
  • Page 24 Alarm In - Orange / White Alarm Out + Yellow RS-485 – (only for GV-SD2722-IR / SD3732-IR) Yellow / Black RS-485 + (only for GV-SD2722-IR / SD3732-IR) Power cable The power loss in watts on the cable for different lengths and different core diameters is listed below.

  • Page 25: Chapter 2 Accessing The Camera

    Accessing the Camera Chapter 2 Accessing the Camera Once installed, the IP Speed Dome is accessible on a network. Follow these steps to configure the network settings and access your surveillance images. 2.1 Installing on a Network These instructions describe the basic connections to install the camera on the network. 1.

  • Page 26: Checking The Dynamic Ip Address

    Find the camera with its Mac Address, click on its IP address and select Web Page. Figure 2-1 In the login page, type the default ID and password admin and click Apply to login. Note: Multilingual Web interface is only supported by GV-SD2722-IR / SD3732-IR.

  • Page 27: Assigning An Ip Address

    Accessing the Camera 2.1.2 Assigning an IP Address To assign a new static IP address, log in the Web interface to access the network setting page. Note: If your router does not support DHCP, the default IP address will be 192.168.0.10. In this case, it is highly recommended that you modify the IP address to avoid IP address conflict with other GV-IP devices on the same LAN.

  • Page 28: Accessing Live View

    2.2 Accessing Live View After logging in to the speed dome, you will see the Home page as shown below: Figure 2-3...

  • Page 29: The Live View Window

    Accessing the Camera 2.2.1 The Live View Window For GV-SD2322-IR Figure 2-4 No. Name Function Set the display ratio of the image.  Scale: display images by 16:9. Proportional  Stretch: display images by window size.  Original: display images in its original size. Select a live video stream: main stream, sub stream or third Live Stream stream.
  • Page 30 Adjust the microphone volume on the PC during audio Microphone communication between the PC and the camera. Snapshot Take a snapshot of the current image displayed on the PC. Local Recording Start or stop local recording. Audio Start or stop audio communication between the PC and Communication the camera.

  • Page 31: Accessing The Camera

    Accessing the Camera For GV-SD2722-IR / SD3732-IR Figure 2-5 No. Name Function Image Open the image setting page. -- See 4.5.1 Image. Two-way Audio Start or stop two-way audio. Start or stop area focus. By activating this function, you can set the camera focus based on a defined area of the live view.

  • Page 32: Digital Zoom

    2.2.1.1 Digital Zoom To use the digital zoom function, follow these steps: 1. Click (No. 11, Figure 2-4) on the toolbar. 2. Click and drag on the live view from top to down to specify an area. 3. To restore the original image size, click in the enlarged area, or drag from the bottom up. 4.

  • Page 33: Chapter 3 Ptz Control Panel

    Chapter 3 PTZ Control Panel In this chapter, you will be guided through the various functions of PTZ Control Panel. The PTZ Control Panel is accessed from the live view interface of the camera. 3.1 Assessing the PTZ Control Panel Figure 3-1 No.

  • Page 34: Setting Presets

    3.1.1 Setting Presets You can create and delete preset points by clicking Preset on the control panel of Live View. Adding a Preset 1. Once Preset (No.7, Figure 3-1) is selected in the control panel, adjust the dome view to the desired direction, zoom and focus.
  • Page 35 PTZ Control Panel Deleting a Preset On the control panel, click for a preset and confirm the delete. Figure 3-4...

  • Page 36: Setting Patrol

    3.1.2 Setting Patrol A patrol route is the track by which the camera follows when moving from a preset to the next. The length of time that the camera stays at each preset is configurable. Multiple patrol routes are allowed for the camera. Patrol actions include going to a preset and staying at the preset for a certain amount of time before going to the next.
  • Page 37 PTZ Control Panel Note: 1. It is recommended that the first action type is Go to Preset. 2. If Keep Rotating is selected, the camera will rotate at the set speed and zoom in the set direction or position for a certain amount of time. Recording a Patrol Route You can record the dome movements of the camera as a patrol route.
  • Page 38 Starting a Patrol Route After you have added a patrol route, you can start patrolling by clicking on the control panel. Figure 3-8...
  • Page 39 PTZ Control Panel Editing a Patrol Route On the control panel, click to modify the ID, name and dome movement of an existing patrol route.   Figure 3-9 Delete a Patrol Route On the control panel, click for a patrol route and confirm the delete. Figure 3-10...
  • Page 40 Making a Patrol Plan You can set up the camera to perform different patrol routes at different time periods throughout the week by making a patrol plan. 1. On the control panel, click the Patrol Plan button to set the correct patrol time and route.

  • Page 41: Setting Home Position

    PTZ Control Panel 3.2 Setting Home Position PTZ camera will return to home position if no operation is made within a specified period. 1. On the Setup page, select PTZ in the left menu and select Home Position to access the settings.

  • Page 42: Chapter 4 Administrator Mode

    Chapter 4 Administrator Mode The Administrator can access and configure GV-IP Speed Domes through the network. Click Setup at the top of the Web interface to access the following nine configuration tabs: Common, Network, Video & Audio, PTZ, Image, Intelligent, Events, Storage, Security and System.
  • Page 43 Administrator Mode List of Options See the table below for the settings available on the Web interface. Find the topic of interest by referring to the section number prefixed to each option. The configuration tabs and settings may vary with different models. 4.1.1 Navigation / Basic Info 4.1 Common 4.1.2 Local Settings...
  • Page 44 4.10.1 Time 4.10.2 Maintenance 4.10 System 4.10.3 Security 4.10.4 Ports & Device...

  • Page 45: Common

    Administrator Mode 4.1 Common Under the Common tab, the Administrator can find the general settings for the camera, as well as shortcuts to the following setting pages.  TCP/IP / Ethernet: See 4.2.1 TCP/IP / Network for details.  Time: See 4.10.1 Time for details. ...

  • Page 46: Local Settings

    Line and Intrusion function on Live View. You must set up detection lines / areas first for this function to work. To set up detection lines / areas, see 4.6.2 Cross Line and 4.6.3 Intrusion, respectively. This function is only applicable to GV-SD2722-IR / SD3732-IR.
  • Page 47  Snapshot Folder: Click Browse to set a folder to store the captured snapshots at your local computer. To assign the snapshot-storing location for GV-SD2722-IR / SD3732-IR, go to Storage in the left menu and select FTP.

  • Page 48: Network

    4.2 Network The network section allows you to configure the network settings, modify ports, configure FTP server, and set up e-mail for notification. 4.2.1 TCP/IP / Network Figure 4-4  IP Obtain Mode / Obtain IP Address: Select Static IP, PPPoE or DHCP according to your network environment.
  • Page 49 IP addresses, first use the DDNS function to obtain a domain name linking to the camera’s changing IP address. Note this function is only applicable to GV-SD2722-IR / SD3732-IR.  DHCP: The network environment has a DHCP server which will automatically assign a dynamic IP address to the camera.

  • Page 50: Port

    4.2.2 DNS Type the camera’s Preferred DNS Server and Alternate DNS Server. For GV-SD2322-IR, you can find the same setting in TCP / IP of the left menu. Figure 4-5 4.2.2 Port You can modify the default HTTP port, HTTPS port and RTSP port if necessary. Figure 4-6...

  • Page 51: Ftp

    Administrator Mode 4.2.3 FTP After the configuration of FTP, you will be able to upload snapshots from the camera to the specified FTP server. Figure 4-7 1. Type the Server IP address. 2. Change the Port No. of the FTP server if needed. 3.
  • Page 52 Step 5, 6 and 7 are applicable only to GV-SD2722-IR / SD3732-IR: 5. select Overwrite Storage to overwrite the oldest images when the storage is full. You can set the number of images in Overwrite At (Image). When the defined image threshold is reached, the oldest images will be overwritten.

  • Page 53: E-Mail

    Administrator Mode 4.2.4 E-mail After the configuration of E-mail, you will be able to send messages to the specified E-mail address when alarms are triggered. Figure 4-8 [Sender] 1. Type the Name and Address of the sender. 2. Type the SMTP Server. 3.
  • Page 54 [Recipient] Type the name and e-mail address of the recipient. For GV-SD2722-IR / SD3732-IR, click the button next to the address of a Recipient to Test for the validity of the e-mail address. Note: To send snapshots to the specified E-mail address, make sure to enable Capture /...

  • Page 55: Ddns

    DHCP Server or ISP (in xDSL connection) has changed. Before enabling the DDNS function, the Administrator should apply for a Host Name from the DDNS service provider’s website. There are 2 providers listed in the camera: GeoVision GVDIP, GeoVision DDNS Server and DynDNS.org.
  • Page 56 Geovision DDNS service. Figure 4-10 4. In the Geovision DDNS Server page, type a desired Hostname and Password. Re-type Password and type the verification letters shown in the image. Click Send. 5. In the Web interface of your camera, type Username. The username is the hostname registered in DDNS Server.

  • Page 57: Port Mapping

    Administrator Mode 4.2.6 Port Mapping Note this function is only applicable to GV-SD2722-IR / SD3732-IR. This function can automatically forward and open certain ports on your router, allowing connection to your camera from the Internet. Figure 4-12 1. Enable Port Mapping, and select Mapping Type.
  • Page 58 4.2.7 802.1x Note this function is only applicable to GV-SD2722-IR / SD3732-IR. IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to devices connecting to a LAN or WLAN. Figure 4-13 1. Enable IEEE 802.1x.

  • Page 59: Video & Audio

    The following options are available for the main, sub and third streams.  Video Compression: Set the codec type to H.264 or MJPEG (for GV-SD2322-IR), or to H.265, H.264 or MJPEG (for GV-SD2722-IR / SD3732-IR).  Resolution: You may select the different resolutions for each stream.
  • Page 60  Image Quality: When VBR is selected for the encoding mode, you can move the slider to adjust quality level for images. Moving the slider toward Bit Rate decreases the bit rate and may affect image quality. Moving the slider toward Quality increases the bit rate and improves image quality.

  • Page 61: Audio

    Input Gain: Set the audio signal amplification for sampling. The greater the gain, the greater amplification Audio Compression: Select an audio codec.  The functions below are only applicable to GV-SD2722-IR / SD3732-IR.  Noise Suppression: Select On to reduce the noise of the audio. ...

  • Page 62: Capture / Snapshot

    Choose the Image Quality. Choose the Number (of snapshot) to Capture upon alarm trigger. Only for GV-SD2722-IR / SD3732-IR, select Timed Mode / Schedule Mode or Continued Mode / Repeat Mode to set up the Scheduled Snapshot. If you select Timed mode / Schedule Mode, click + to specify a time to take a snapshot.

  • Page 63: Roi

    Administrator Mode 4.3.4 ROI When Region of Interest (ROI) is enabled, the system ensures image quality for ROI first if the bit rate is insufficient. Note this function is only applicable to GV-SD2722-IR / SD3732-IR. Figure 4-17 Click to enable and add ROI.

  • Page 64: Media Stream

    4.3.5 Media Stream Note this function is only applicable to GV-SD2722-IR / SD3732-IR. Media Stream By configuring media stream, you can set the camera to transmit code streams by UDP or TCP protocol to a specified IP address and port number. The settings can be saved and take effect after the camera is restarted.
  • Page 65 Administrator Mode RTSP Multicast Address After an RTSP multicast address is configured, the third-party player can request the RTSP multicast media stream from the camera through the RTP protocol. Figure 4-19 1. Type the Multicast Address (224.0.0.0 to 239.255.255.255) and Port number (0 to 65535).

  • Page 66: Ptz

    For detailed instructions, refer to 3.2 Setting Home Position. 4.4.2 Remote Control Note this function is only applicable to GV-SD2722-IR / SD3732-IR. You can connect a third-party PTZ remote control program to your GV-IP Speed Dome once this function is enabled.

  • Page 67: Patrol

    Administrator Mode 4.4.3 Patrol Note this function is only applicable to GV-SD2722-IR / SD3732-IR. You can set the camera to take a snapshot and upload the image to the FTP server when the camera goes to the preset during the patrol route.

  • Page 68: Image

    4.5 Image This section introduces the Image Settings, On-screen Display, and Privacy Mask. 4.5.1 Image This page allows you to adjust image settings such as brightness, exposure, IR illumination and white balance. Figure 4-22 [Scene] Current: Indicates the scene that is being used. ...
  • Page 69 Administrator Mode Figure 4-23 [Image Enhancement]  Brightness: Adjust the degree of brightness of the image.  Saturation: Adjust the amount of a hue contained in a color.  Contrast: Set the degree of difference between the blackest pixel and the whitest pixel. ...
  • Page 70 Figure 4-24 [Exposure]  Exposure Mode: Select the correct exposure mode to achieve the desired exposure effect. The default setting is Outdoor with a frequency of 50 Hz.  Shutter (s): The length of time that allows light to enter into the lens. You can set a shutter speed when Exposure Mode is set to Manual (Custom) or Shutter Priority.
  • Page 71 Administrator Mode  Slow Shutter: Improve image brightness in low light conditions. For GV-SD2322-IR, you can only set this parameter when Exposure Mode is not set to Shutter Priority and when Image Stabilizer is disabled. Slowest Shutter: Set the slowest shutter speed that the camera can use during ...
  • Page 72 Figure 4-25 [Smart Illumination]  Smart Illumination: Select Enable to adjust the IR illumination settings.  Control Mode:  Global Mode: (The function is only applicable to GV-SD2322-IR.) Adjust IR illumination and exposure to achieve balanced image effects. Some areas might be overexposed if you select this option.
  • Page 73 Administrator Mode Figure 4-26 [Focus]  Focus Mode:  Auto Focus: Focuses automatically according to the current light condition.  Manual Focus: Manually adjust camera focus as required.  One-Click Focus: The camera is triggered to focus once when rotating, zooming or going to a preset.
  • Page 74  Auto: Adjust the red and blue offset automatically according to the light condition (the color tends to be blue).  Outdoor: (The function is only applicable to GV-SD2722-IR / SD3732-IR). It is recommended for outdoor scenes with a wide range of color temperature variation.

  • Page 75: Osd

    Administrator Mode 4.5.2 OSD On Screen Display (OSD) is the text displayed on the screen with video images and may include time and other customized contents. For GV-SD2322-IR Figure 4-29 1. Click under Position to select an Area #, and then click Overlay OSD Content to select the content to display on screen.
  • Page 76 OSD is set successfully. You may set multiple lines of contents for each area and use to adjust the sequence of display. For GV-SD2722-IR / SD3732-IR   Figure 4-31 1. Enable a No. to select an area #, and then click Overlay OSD Content to select the content to display on screen.

  • Page 77: Privacy Mask

    Administrator Mode 4.5.3 Privacy Mask On certain occasions, you may need to set a mask area to block out parts of the camera image to protect privacy, for example, the keyboard of an ATM machine. When PTZ changes its position or zooms, the Privacy Mask will be adjusted accordingly to protect the area all along.

  • Page 78: Intelligent

    4.6 Intelligent Note this function is only applicable to GV-SD2722-IR / SD3732-IR. The Intelligent functions allow the camera to track moving people in a predefined area and trigger warnings when the person trespasses a detection threshold, or attempts to breach into a detection zone you set up.

  • Page 79: Cross Line

    Administrator Mode 4.6.2 Cross Line Cross line detection generates an alarm when a person walks past the detection threshold in the direction you defined. Up to 4 detection lines can be added. Note that when adding multiple detection lines, make sure they do NOT intersect as it may effect detection results. Figure 4-33 1.

  • Page 80: Intrusion

    4.6.3 Intrusion With Intrusion Detection, an alarm is generated when a person trespasses the boundaries of the detection area. Up to 4 detection areas can be added. Note that is recommended NOT to overlap the detection areas when adding multiple detection areas. Figure 4-34 1.

  • Page 81: Auto Tracking

    Administrator Mode 4.6.4 Auto Tracking Auto Tracking allows you to track moving object(s) for as long as 300 seconds. Figure 4-35 1. Enable Auto Tracking. 2. Type the amount of time for the camera to keep tracking moving objects in the Tracking Timeout(s) field.

  • Page 82: Advanced Settings

    4.6.5 Advanced Settings This section allows you choose between Normal Mode, which detects for moving targets continuously, and Filter Repeat Motion Mode, which ignores repeated motions. Figure 4-36...

  • Page 83: Events

    Administrator Mode 4.7 Events You can set the camera to generate an alarm upon motion detection, temperature alarm, audio alarm, and input trigger. 4.7.1 Motion Detection Motion detection is used to generate an alarm whenever movement occurs in the specified area.
  • Page 84 Beneath History, motion detection results are shown in real time. The red lines represent motion detection alarms. The longer a line, the greater the extent of motion. [Alarm Parameters] Suppress alarm: After an alarm is triggered, the same alarm will not be reported within ...
  • Page 85 Administrator Mode [Enable Plan] Select this option to set the start and end times during which motion detection alarm is enabled. You can directly drag the mouse to draw a plan or click Edit to edit time periods in the table. You can set up to four periods for each day, and the time periods cannot overlap. The camera reports alarms during the specified period(s) only.

  • Page 86: Tampering Alarm

    4.7.2 Tampering Alarm Note this function is only applicable to GV-SD2722-IR / 3732-IR. Tampering alarm is used to detect when the camera is being physically tampered with. An alarm can be generated when the camera is moved, covered up, or out of focus.

  • Page 87: Audio Detection

    Administrator Mode 4.7.3 Audio Detection The camera can detect for abnormal audio volume. When the rise or fall of volume exceeds the set limit, or when the input volume reaches the threshold, the camera reports an alarm and triggers the set actions. Make sure an audio input device is correctly connected to the camera and audio input is enabled.
  • Page 88  Difference: the difference between two volumes. When the rise or fall of volume exceeds the difference, an alarm is reported. 4. Select the actions to be triggered by an audio alarm and set a schedule plan if needed. Refer to 4.6.1 Motion Detection for detailed instructions 5.

  • Page 89: Alarm Input

    Administrator Mode 4.7.4 Alarm Input The camera can receive alarm information from an input device. Figure 4-41 1. Select Alarm Input 1 or Alarm Input 2 from the drop-down list. 2. Type an Alarm Name, and set an alarm ID. 3.

  • Page 90: Alarm Output

    4.7.5 Alarm Output After alarm output is triggered by a motion detection alarm, temperature alarm or input alarm, the camera can trigger an output device. Figure 4-42 Type and Alarm Name for the output device. Set the status to Normally Open / N.O (default setting). Set the alarm duration.

  • Page 91: Capture

    Administrator Mode 4.7.6 Capture Note this function is only for GV-SD2322-IR. Using the Capture function, when an alarm is triggered, the camera will automatically upload the captured snapshots to the FTP server or send snapshots to the specified email address. For more detailed instructions, refer to 4.3.3 Capture under Video &...

  • Page 92: Storage

    4.8 Storage This section allows you to configure memory card settings and download recorded videos. 4.8.1 Storage After inserting a memory card into the camera, you need to format the memory card using the Format button on this page. Figure 4-44 The following storage settings are available.
  • Page 93  Common Snapshot: The storage capacity used to store captured snapshots. [Video Storage Info] (The function is only for GV-SD2722-IR / SD3732-IR.)  Storage Policy: Choose the Storage Policy from one of the three options.

  • Page 94: Recording Download

    4.8.2 Recording Download You can search and download the recorded videos stored in the memory card. Select a time period to search for video, and click Search. The search results are shown. Figure 4-45 To download the videos, select the files and click Download. To open the folder for storing recordings, click Open.

  • Page 95: Security

    Administrator Mode 4.9 Security Note these functions are only for GV-SD2722-IR / SD3732-IR. This section allows you to create user accounts and set the network security settings. 4.9.1 User There are two types of accounts: Administrator and Common User. For more detailed instructions, refer to 4.10.3 Security.
  • Page 96 4. Click Save. Access Policy Note this function is applicable only to GV-SD2722-IR / SD3732-IR. You can login with a weaker password by adjusting the password strength. When this option is disabled, the camera prompts you to set up a stronger password if you attempt to login with a weaker password.

  • Page 97: System

    Time to synchronize with the time of your PC. Select a Time Zone. Click Save. To synchronize with a network time server (For GV-SD2722-IR / SD3732-IR only): Enable NTP. Type the IP address of the network time server next to NTP Server IP.
  • Page 98 To adjust the camera’s time for daylight saving time: Click the DST tab at the top. Figure 4-50 Select Enable DST / ON. Set a Start Time and End Time for the daylight saving time. Select a time period for DST Bias. Click Save.

  • Page 99: Maintenance

    Administrator Mode 4.10.2 Maintenance This section allows you to upgrade firmware, restart the camera, and backup/import camera configurations. Figure 4-51 [Firmware Upgrade / Software Upgrade]. For detailed instructions, refer to 6.1 Upgrading System Firmware and 6.1.1 Using the Web Interface. [Device Restart] Click Restart to restart the device after you confirm the operation.
  • Page 100 For example, if the minimum focus distance is 3 m, then the objects within 3 m from lens will be out of focus. For GV-SD2722-IR / SD3732-IR, you can adjust zoom ratio to see the clear image when zooming in according to the maximum zoom ratio.

  • Page 101: Security

    Administrator Mode 4.10.3 Security Three tabs are available under the Security page: User, HTTPS, and RTSP Authentication. User There are two types of accounts: Administrator and Common User.  Administrator: The default name of the administrator is admin, which cannot be modified.
  • Page 102 RTSP Authentication RTSP (Real Time Streaming Protocol) is an application layer protocol for transmitting audio and video. Set the authentication mode for RTSP streaming. Figure 4-55...

  • Page 103: Ports And Device

    Administrator Mode 4.10.4 Ports and Device Note this function is only applicable to GV-SD2722-IR / SD3732-IR. Use the RS485 serial port to transmit data to the third-party device. Figure 4-56 1. Select Trans-Channel / OSD / Local PTZ Control / Trans-Channel via ONVIF from the Port Mode drop-down list.

  • Page 104: Chapter 5 Recording And Playback

    Chapter 5 Recording and Playback The camera can record video and audio directly to the memory card. Note: See Note for Recording at the beginning of the manual. 5.1 Recording To configure the recording function, refer to the following sections ...

  • Page 105: Playback From The Memory Card

    Recording and Playback 5.2 Playback from the Memory Card You can play back the files recorded at the memory card of the camera from the Web interface. Click Playback at the top. This page appears. Figure 5-1 On the right, select a date and click Query. Figure 5-2...
  • Page 106 Double-click a search result to play back the recorded file. You can adjust the audio volume at the bottom-right corner if needed. Figure 5-3 The following functions are available:  Snapshot : Click to capture a snapshot of the recorded video. ...

  • Page 107: Chapter 6 Advanced Applications

    Chapter 6 Advanced Applications This chapter introduces more advanced applications. 6.1 Upgrading System Firmware GeoVision periodically releases updated firmware on the company website. The new firmware can be loaded into the camera using the Web interface or the GV-IP Device Utility.

  • Page 108: Using The Web Interface

    6.1.1 Using the Web Interface Log into the Web interface and follow the steps below to update the firmware. 1. At the top, click Setup. In the left menu, select System and select Maintenance. This page appears. Figure 6-1 3. Click the Browse button to locate the firmware file (.zip) saved at your local computer. 4.

  • Page 109: Using The Gv-Ip Device Utility

    Advanced Applications 6.1.2 Using the GV-IP Device Utility You can upgrade the camera firmware using the GV-IP Device Utility. Note the computer used to upgrade firmware must be under the same network of the camera. 1. Download GV-IP Device Utility from the company website. Then follow the onscreen instructions to install the program.

  • Page 110: Restoring To Factory Default Settings

    6.2 Restoring to Factory Default Settings If for any reason the camera is not responding correctly, you can restore the camera back to its factory default settings using the Web interface or the Default Button. 6.2.1 Using the Web Interface To restore to default settings using the Web interface: 1.

  • Page 111: Directly On The Camera

    Advanced Applications 6.2.2 Directly on the Camera 1. Unscrew the back cover of the camera. Figure 6-5 2. Press and hold the default button for about 30 seconds. Figure 6-6 3. When the camera rotates twice, the process of loading default is completed and the camera robots automatically.

  • Page 112: Chapter 7 Vms / Dvr / Nvr Configurations

    Compatible GV-DVR / NVR Compatible GV-VMS GV-SD2322-IR V8.7.0.0 or later V15.10.1.0 with patch files or later V17.1.0.100 or later GV-SD2722-IR V8.7.4.0 with patch files or later GV-SD3732-IR V8.7.1.0 with patch files or later V15.11.1.0 with patch files or later ...

  • Page 113: Setting Up Ip Cameras On Gv-Dvr / Nvr

    VMS / DVR / NVR Configurations 7.1 Setting up IP Cameras on GV-DVR / NVR To set up the camera on the GV- DVR / NVR, follow these steps: On the main screen, click the Configure button, select System Configure, select Camera Install and click IP Camera Install.
  • Page 114 Click OK. This dialog box appears. Figure 7-3 Click OK. The camera is added to the connection list. Click the listed camera and select Display position to map the camera to a channel on the GV-DVR / NVR. Figure 7-4 The Statue column should display “Connected”.

  • Page 115: Customizing The Basic Settings On Gv-Dvr / Nvr

    VMS / DVR / NVR Configurations 7.1.1 Customizing the Basic Settings on GV-DVR / NVR After the camera is connected and assigned with a display position, you can configure the camera’s settings such as frame rate, codec type and resolution. Right-click the desired camera to see the following list of options: Figure 7-5 ...

  • Page 116: Setting Up Ip Cameras On Gv-Vms

    7.2 Setting Up IP Cameras on GV-VMS Follow the steps below to manually connect your camera to GV-VMS. 1. To access the IP Device Setup page, click Home , select Toolbar , click Configure and select Camera Install. Figure 7-6 2.
  • Page 117 VMS / DVR / NVR Configurations 4. Click OK. This dialog box appears. Figure 7-8 5. Click OK to add the camera to the list. 6. To connect the added camera, click the box besides the ID column. Upon successful connection, the Status icon shows green, with the video resolution and bit rate being displayed in the corresponding columns.

  • Page 118: Appendix

    Appendix A. RTSP Multicast Protocol Support The camera can support RTSP multicast protocol for both video and audio streaming. You can use the following RTSP multicast command to access the camera image: Stream 1:rtsp://<IP of the camera>/multicast/video1 Stream 2:rtsp://<IP of the camera>/multicast/video2 For example, rtsp://192.168.4.115/multicast/video1...

This manual is also suitable for:

Gv-sd3732-irGv-sd2322-ir

Table of Contents
