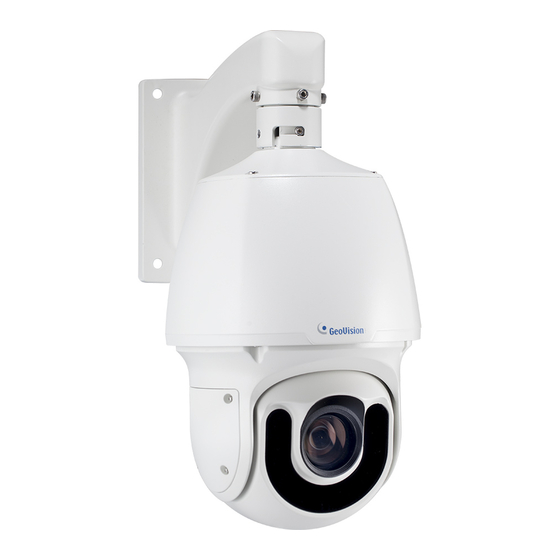

GV-SD2322-IR
GV-SD2722-IR
GV-SD3732-IR
GV-SD4825-IR
GV-SD4834-IR
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Quick Start Guide
GV-IP Speed Dome
ISD2722IR-QG-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-SD2322-IR and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-SD2322-IR

Summary of Contents for GeoVision GV-SD2322-IR

  • Page 1 Quick Start Guide GV-IP Speed Dome GV-SD2322-IR GV-SD2722-IR GV-SD3732-IR GV-SD4825-IR GV-SD4834-IR Before attempting to connect or operate this product, ISD2722IR-QG-C please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    Contents Note for Connecting to GV-VMS / DVR / NVR ........ii Note for Recording ................iii Note for Installing Camera Outdoor ............ iv 1. Introduction ..................1 1.1 Packing List ......................1 1.2 Optional Accessories ..................... 2 1.3 Overview ........................ 2 2.

  • Page 4: Note For Connecting To Gv-Vms / Dvr / Nvr

    Note for Connecting to GV-VMS / DVR / NVR The GV-IP Speed Dome is designed to work with GV-VMS / DVR / NVR, a video management system. Note the following when the camera is connected to GV-VMS / DVR / NVR: Once the camera is connected to the GV-VMS / DVR / NVR, the resolution set on the GV-VMS / DVR / NVR will override the resolution set on the camera’s Web interface.

  • Page 5: Note For Recording

    Note for Recording Mind the following when using a memory card for recording: ⚫ Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan.

  • Page 6: Note For Installing Camera Outdoor

    Note for Installing Camera Outdoor When installing the camera outdoor, be sure that: The camera is set up above the junction box to prevent water from entering the camera along the cables. Any power, audio and I/O cables are waterproofed using waterproof silicon rubber or the like.

  • Page 7: Introduction

    For a detailed user manual, see the GV-IP Speed Dome User’s Manual on the company website. 1.1 Packing List • • IR IP Speed Dome 24V AC Power Adapter (only for GV-SD2322-IR / SD2722-IR / SD3732-IR) • • M4 Hex Key Waterproof Rubber Set • Waterproof Guidelines •...

  • Page 8: Optional Accessories

    GV-Mount Accessories The GV-Mount Accessories provide a comprehensive lineup of accessories for installation on ceiling, wall and pole. For details, see GV-Mount Accessories Installation Guide. 1.3 Overview GV-SD2322-IR / SD2722-IR / SD3732-IR GV-SD4825-IR GV-SD4834-IR Name Function Resets all configurations to default factory settings. See 7.

  • Page 9: Installation

    Note for Face Detection, and Note for People Counting, and Smart Settings in Chapter 4, GV-IP Speed Dome User’s Manual for details. Unscrew the back cover of the camera. For GV-SD2322-IR / SD2722-IR / For GV-SD4825-IR For GV-SD4834-IR SD3732-IR / SD4834-IR...
  • Page 10 Insert the micro SD card into the slot, and secure the back cover of the camera. GV-SD2322-IR / SD2722-IR / SD3732-IR GV-SD4825-IR GV-SD4834-IR Note: Be sure to format the memory card on the camera’s Web interface (Setup > Storage > Storage).
  • Page 11 Installation Place the pendant tube on the wall, and mark the position of the screw holes. Drill holes on the wall, and secure the pendant tube to the wall with 4 self-prepared screws. Attach the safety lock of the camera to the pendant tube. Thread the data cable through the pendant tube.
  • Page 12 Attach the camera to the pendant tube, rotate the camera until it is locked into position, and secure the indicated screws. Insert the pendant mount screws and tighten with the supplied M4 hex key. Thread the Ethernet cable through the waterproof rubber set as shown below. Note: The size of RJ-45 connector must be within 14 mm to go through the waterproof rubber set.

  • Page 13: Connecting The Camera

    Video Out (BNC) Audio In Alarm In Audio Out Alarm Out RS-485 (not available for GV-SD2322-IR) Ethernet Power (not applicable for GV-SD4825-IR) Power adapter (only applicable for GV-SD4825-IR) Connect the supplied power adapter to the 3-pin terminal block, or connect the Ethernet cable to the PoE port.
  • Page 14 Wire Definition GV-SD2322-IR / SD2722-IR / SD3732-IR No. Wire Definition Brown Audio In Brown / White Green Audio Out Green / White Gray Alarm In 1 Purple Alarm In 2 Black Orange Alarm In - Orange / White Alarm Out + RS-485 –...
  • Page 15 Connecting the Camera RS-485 – Yellow Yellow / Black RS-485 + Yellow & Green (GV-SD4834-IR) Black AC 24V / DC 24V- (GV-SD4834-IR) AC 24V / DC 24V+ (GV-SD4834-IR)

  • Page 16: Accessing The Camera

    4. Accessing the Camera 4.1 System Requirements Once installed, your camera is accessible over the network. Make sure your PC has good network connection, and meet the following requirement: Intel Core i5-4670, 3.40 GHz Memory DDR3 8 GB RAM On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later required) ⚫...

  • Page 17: Looking Up The Dynamic Ip Address

    Accessing the Camera 4.2 Looking Up the Dynamic IP Address By default, when the camera is connected to LAN with a DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address. Note: The computer you use to configure the IP address must be under the same LAN with your camera.

  • Page 18: Configuring The Ip Address

    4.3 Configuring the IP Address If the camera is connected to LAN without a DHCP server, the default IP address will be 192.168.0.10. Follow the steps below to modify the IP address to avoid IP conflict with other GV-IP devices on the same LAN. 1.

  • Page 19: The Web Interface

    The Web Interface 5. The Web Interface Once you log in the Web interface, you will see the live view as shown below. For GV-SD2322-IR No. Name Function Set the display ratio of the image. • Scale: display images by 16:9.
  • Page 20 Adjust the audio output volume on the PC. Volume Adjust the microphone volume on the PC during audio Microphone communication between the PC and the camera. Snapshot Take a snapshot of the current image displayed on the PC. Local Recording Start or stop local recording.
  • Page 21 The Web Interface For GV-SD2722-IR / SD3732-IR No. Name Function Image Open the image setting page. -- See 4.5.1 Image in the User’s Manual. Two-way Audio Start or stop two-way audio. Start or stop area focus. By activating this function, you can set the camera focus based on a defined area of the live view.
  • Page 22 Start or stop face snapshot. By activating this function, the camera takes face snapshots, and Face Snapshot displays them on the right of the live view window. Before (only applicable to activating this function, you must enable Face Detection - See GV-SD4825-IR / 4.6.7 Face Detection in the User’s Manual.

  • Page 23: Ptz Control Panel

    The Web Interface 5.1 PTZ Control Panel You can find the PTZ control panel to the right of the live view. No. Item Function Auto Pan Start or stop auto panning of the camera. PTZ Control Panel Control the direction of the camera and release the control. PTZ Speed Adjust the moving speed of the PTZ camera.
  • Page 24 Adding a Preset Point 1. Once Preset is selected in the control panel, adjust the dome view to the desired direction, zoom and focus. 2. Click the Add button to add it as a preset. 3. Enter a number and name for the preset and click OK.
  • Page 25 The Web Interface Adding a Patrol Route 1. On the control panel, click the Add button to add a patrol route. Figure 3-5 2. On the Add Patrol page, type the desired route ID and name. 3. Click Add to add a patrol action. Use the buttons to adjust the sequence of the actions and click OK.

  • Page 26: Upgrading System Firmware

    6. Upgrading System Firmware GeoVision periodically releases the updated firmware on the website. To load the new firmware into the camera, follow the instructions below. 1. At the top of the Web interface, click Setup. 2. In the left menu, select System and select Maintenance. This page appears.

  • Page 27: Restoring To Factory Default

    Restoring to Factory Default 7. Restoring to Factory Default If for any reason the camera is not responding correctly, you can restore the camera back to its factory default settings using the Web interface or the Default Button. 7.1 Using the Web Interface To restore to default settings using the Web interface: 1.

  • Page 28: Directly On The Camera

    GV-SD4825-IR GV-SD4834-IR SD3732-IR / SD4834-IR Press and hold the default button for about 30 seconds. GV-SD2322-IR / SD2722-IR / SD3732-IR GV-SD4825-IR GV-SD4834-IR 3. When the camera rotates twice, the process of loading default is completed and the camera robots automatically.
