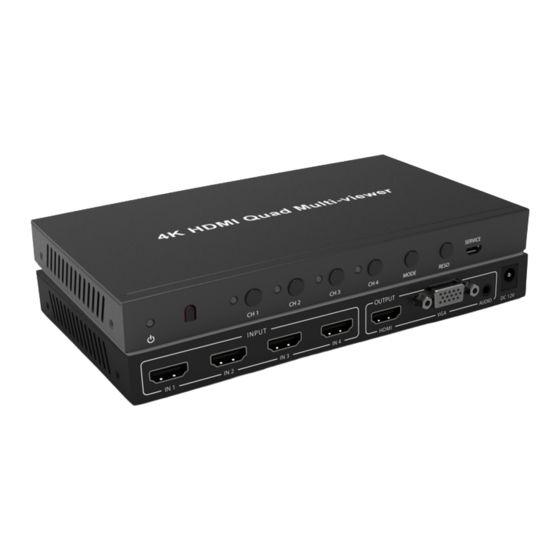

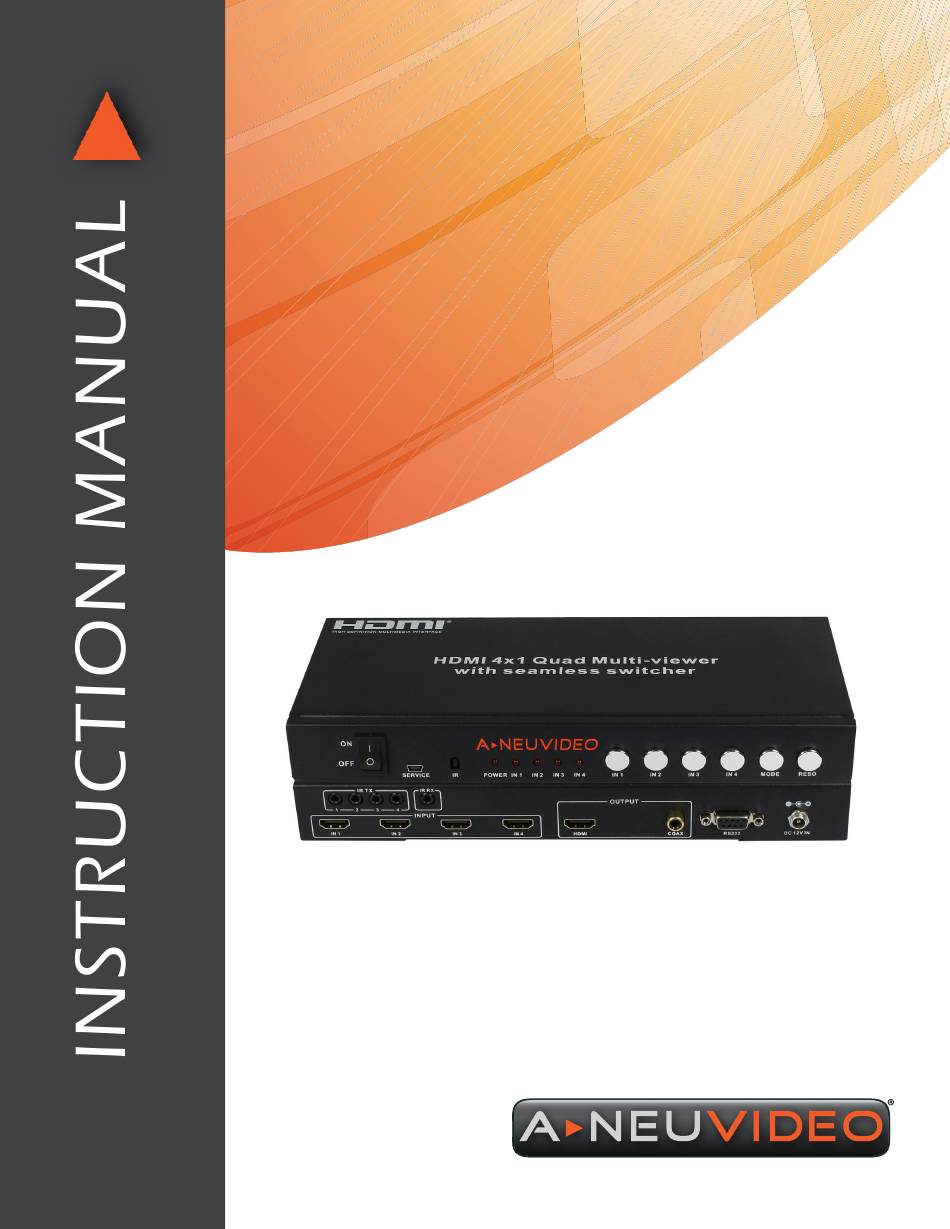

- Page 1 ANI-QUAD-LITE-4K 4x1 HDMI Quad Multi-Viewer w/ Seamless Switcher A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
NEUVIDEO TABLE OF CONTENTS CONTENTS INTRODUCTION & PACKAGE CONTENTS .......1 SAFETY PRECAUTIONS FEATURES & SPECIFICATIONS ..........2 Please read all instructions before attempting to unpack, install or OPERATION & FUNCTIONS ............3 operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this REMOTE CONTROL .............. -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI 1.3a, HDCP 1.2 compliant • Supports multiplexed HDMI to (4) Inputs and (1) Output • Supports up to 1080p High Definition resolution • Supports 4x1 Quad Multi-viewer and seamless switch • Supports Scaler Up and Down function •... -
Page 5: Operation & Functions
NEUVIDEO OPERATION & FUNCTIONS FRONT PANEL ON/OFF: Power ON/OFF switch SERVICE: For factory use only Remote control receiver window POWER LED: This red LED illuminates when the device is connected to the power supply IN1, 2, 3, 4 LED: These red LED illuminates when the Output has selected the corresponding Input INPUT BUTTON: Press this button to select the Input source MODE BUTTON:... -
Page 6: Remote Control
NEUVIDEO Remote Control Remote Control INPUT SELECT BUTTONS: The quad multi-viewer will select the corresponding Input source and the front panel LED will indicate the selected Input source status. MODE SELECT BUTTONS: The quad multi-viewer will select the corresponding mode RESOLUTION BUTTONS: The HDMI will Output different resolutions, 1080p, 1080i, 720p, 1024x768, 1360x768. - Page 7 NEUVIDEO Connect & Operate Connect & Operate 1. Connect the signal sources such as Blu-Ray Player, Play Station 3, audio/video receiver, satellite receivers and computers equipped with HDMI Output interfaces, with a short high-speed HDMI cable to the HDMI switcher Inputs. 2.
-
Page 8: Connect & Operate / Pc Gui Interface
NEUVIDEO CONNECT & OPERATE Wideband IR (30KHz---60KHz) introduction IR BLASTER (TX): To control the source: Plug the IR Blaster into IR TX port of the transmitter unit. Place the blaster in front of the IR eye of the source. IR RECEIVER (RX): To control the source: Plug the IR Receiver into IR RX port of the receiver unit. -
Page 9: Connection Diagram
NEUVIDEO Connection Diagram DIAGRAM OPTIONAL RACK MOUNT BRACKET... -
Page 10: Rs-232 Serial Interface/Commands
NEUVIDEO RS-232 SERIAL INTERFACE /CommandS RS-232 SERIAL INTERFACE for connection to a PC or 3rd Party Controller 1. Transmission rate: 115200bps 2. Data format: 8 data bits, No parity, 1 start bit and 1 stop bit 3. Flowing control: None Also know as 115200,8,n,1 RS-232 Configuration RS-232 cable is a straight thru cable and not null-modem... - Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
