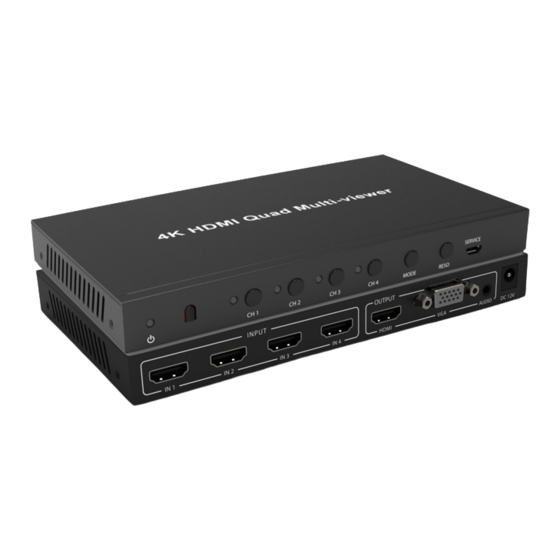

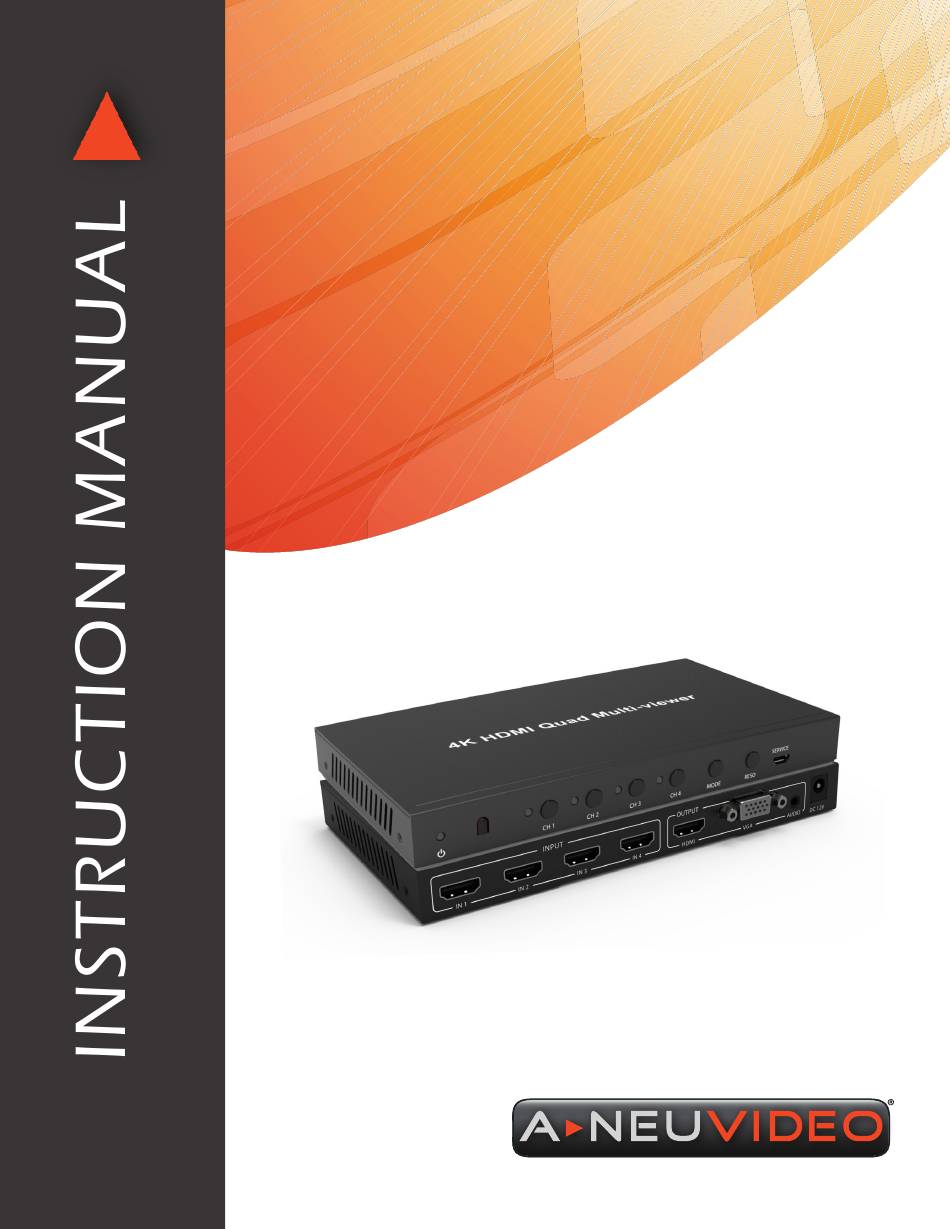

- Page 1 ANI-QUAD-LITE-4K 4x1 HDMI Quad Multi-Viewer w/ Seamless Switcher A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
We assume no responsibility for any inaccuracies that may be • ANI-QUAD-LITE-4K HDMI 4x1 Quad Multi-viewer contained in this document. We make no commitment to update or to keep current the information contained in this document. -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI 1.4b, HDCP 1.4 compliant • Automatic Input resolution recognition. (480p~4K30Hz, 800x600~4K30Hz) • Output resolution can be selected by front-panel button and remote control. • HDMI supports resolution the maximum up to 4K30Hz. (3840x2160@30Hz, 1920x1080@50/60Hz, 1280x720@50/60Hz, 1920x1200@60Hz, 1024x768@60Hz) •... -
Page 5: Operation & Functions
NEUVIDEO OPERATION & FUNCTIONS FRONT PANEL POWER LED: The LED will illuminate green when the unit is working, red when the unit is in standby mode. IR receiver window. It accepts the remote control signal of this device only. CH1/CH2/CH3/CH4 BUTTON: Selects input channel (Please see “Display Modes”... -
Page 6: Remote Control
NEUVIDEO Remote Control Remote Control POWER BUTTON: Press this button to cycle between ON and STAND-BY. OSD BUTTON: Press this button to cycle thru the OSD display. (Border, No Border, Input Resolution). RES BUTTON: Press this button to cycle thru output resolutions. MODE BUTTONS: Press these buttons to select the output display mode. -
Page 7: Display Modes
NEUVIDEO Displa y Modes Displa y Modes The quad multi-viewer has 5 display modes. Please see the below detail description. MODE 1: The quad multi-viewer will display separately four HDMI inputs. Press the CH1/CH2/CH3/CH4 buttons on-panel or using IR remote control the Source 1/2/3/4 buttons to selecting input source, corresponding on-panel light is on. MODE 2: The quad multi-viewer divides four HD inputs with same size and display on a screen. -
Page 8: Application Example
NEUVIDEO Application Example Application Example... - Page 9 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 10 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
