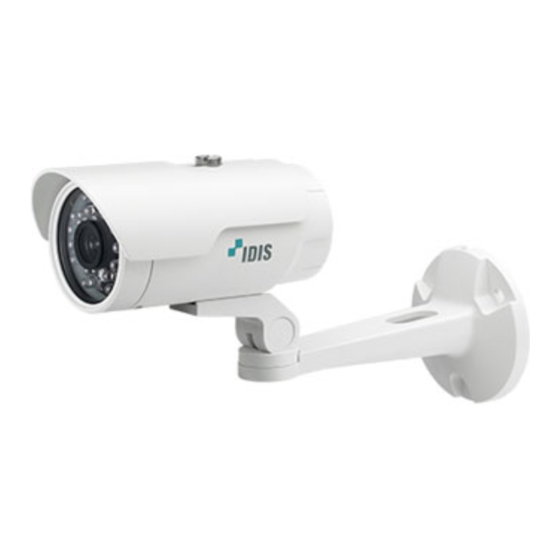

Idis DC-E1112WR Operation Manual

Hide thumbs Also See for DC-E1112WR:
Table of Contents

Advertisement

Quick Links

Download this manual
Network
Camera
Operation Manual
DC-E1112WR / DC-E1212WR
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-E1112WR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Idis DC-E1112WR

Summary of Contents for Idis DC-E1112WR

  • Page 1 Network Camera Operation Manual DC-E1112WR / DC-E1212WR Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Table of Contents Part 1 - Remote Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Camera Protocol.
  • Page 6 Part 2 - IDIS Web . . . . . . . . . . . . . . . . . .

  • Page 7: Part 1 - Remote Setup

    - The DirectIP™ NVR also allows you to control all camera settings directly from the NVR, without the need for a computer. Launch the IDIS Discovery program and from the list, For more information on configuring camera settings select a camera whose protocol you wish to change.

  • Page 8: Remote Setup

    Part 1 - Remote Setup Remote Setup Quick Setup Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon. Select Remote Setup from the Setup menu to load the Remote Setup screen.

  • Page 9: System

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program.

  • Page 10: Date/Time

    Part 1 - Remote Setup • Setup Date/Time - Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 12. - Import Setup: Open a setup file and apply its settings to the camera.

  • Page 11: User/Group

    Part 1 - Remote Setup User/Group • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Network

    Part 1 - Remote Setup Network IP Address Change the network settings, enable FEN and security • Type: Select the type of network you are using. If features, and control network bandwidth use. this option has been changed, Remote Setup will terminate after applying the current settings.

  • Page 13: Fen

    Part 1 - Remote Setup • DNS Server: Enter the DNS server’s IP address. By using the DNS server, you will be able to use domain names instead of IP addresses when configuring the Select Use FEN to enable the FEN feature. FEN, time, or SMTP server.

  • Page 14: Port/Qos

    By enabling IDIS Web and RTSP ports, field and check the entered name's availability. you will be able to use the IDIS Web program or In addition, you will be prompted with an error a media player that supports RTSP (Real-Time message if you do not enter a FEN name or enter Streaming Protocol) service to connect to the camera.
  • Page 15 – Via Mobile Device: Launch the web browser and then enter http://IP Address:IDIS Web Port Number/ (If Use HTTPS has been enabled, enter https instead of http). Camera's IDIS Web port number and RTSP port number must be configured correctly in order to establish a connection this way.

  • Page 16: Bandwidth Control

    Part 1 - Remote Setup Bandwidth Control Security Regulates the camera’s network bandwidth use based on network traffic fluctuations. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. Select Network Bandwidth limit and then specify - Add: Add new IP addresses to Allow List or Deny the maximum bandwidth.

  • Page 17: Ieee 802.1X

    Part 1 - Remote Setup • SSL: Select this option to enable SSL (Secure Sockets IEEE 802.1X Layer). Enabling this option applies SSL protocol protection on data transmitted out. However, Select the IEEE 802.1X option to enable IEEE 802.1X programs and systems that do not support SSL will network connection authentication.

  • Page 18: Video

    Part 1 - Remote Setup Video Camera Image Sensor Configure Image Sensor settings. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Mirroring: Select Horizontal Reverse or Vertical Reverse to flip the image horizontally or vertically. • Pivot: Select a direction to rotate images 90 degrees clockwise or counterclockwise.
  • Page 19 It does not cause overall image blurring which might occur when using noise filter, but it may cause • Preset: Use preconfigured white balance settings. afterimage (lag) ( DC-E1112WR only). - Auto: Allow the system to adjust the white balance automatically. The system will assess the lighting conditions and adjust the white balance automatically.
  • Page 20 Part 1 - Remote Setup • Anti-Flicker: If the lights in the area where the Exposure camera is located use alternating current, specify Configure Exposure settings. the frequency of the lights to minimize flickering. Matching the frequencies can reduce flickering. (NTSC: 60Hz, PAL: 50Hz) •...
  • Page 21 Part 1 - Remote Setup • IR Cut Filter: When the IR cut filter is enabled, the Day & Night camera blocks infrared light. Images can be displayed Configure Day & Night settings. clearly in various lighting conditions by blocking infrared light in bright light conditions and allowing infrared light in low light conditions.

  • Page 22: Streaming

    On to allow the system to adjust the brightness level quaternary streams may not be available depending automatically. Do not select to adjust the brightness on higher stream settings (refer to the table below). level manually. (0% to 100%) Higher the value, DC-E1112WR brighter the LED. Primary Secondary Tertiary...
  • Page 23 Part 1 - Remote Setup • Resolution: Choose a resolution setting for video Select On and then specify the streaming area’s streaming. The resolution varies depending on the resolution. camera model. The current stream resolution cannot be higher than the higher stream resolution. •...

  • Page 24: Webcasting

    Part 1 - Remote Setup Webcasting Use the webcasting service to view live images from the Select the MAT option to use the MAT (Motion Adaptive camera on a web site. Transmission) feature during video transmission and recording. • HTML Code: Copy and paste the html code shown on the screen within the code of the web page you want •...

  • Page 25: Privacy Masking

    Part 1 - Remote Setup • Frame Rate: Designate the frame rate to be used Privacy Masking between the end of the Inactivity Period and the next motion detection. When the slow shutter mode is Select Privacy Masking to set up a privacy mask over enabled under Video >...

  • Page 26: Event Action

    Part 1 - Remote Setup Event Action Email Select Email to send out emails. Designate event detection alert actions. • SMTP Server/Port: Enter the SMTP server’s IP address (or domain name) and port number you received from the network administrator. If a DNS server has been set up during network configuration, you can enter a domain name instead of an IP address.

  • Page 27: Remote Callback

    Select FTP Upload to upload .jpg image of the event remote system. detected to an FTP server. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.
  • Page 28 Part 1 - Remote Setup - Upload 1 image per: Activated only when Upload Type has been set to Event. Designate the upload speed. Select Upload for and specify a duration. Images will be uploaded for the specified duration at the specified upload speed. Select Upload while event status is active to upload images at the specified speed only while event status is active.

  • Page 29: Event

    Part 1 - Remote Setup Event Motion Detection Select Motion Detection to configure motion detection Configure event detection settings. event settings. With motion detection event enabled, motion detections within the designated area will be assumed as events. • Sensitivity: Select daytime and nighttime motion detection sensitivity levels.

  • Page 30: Trip-Zone

    • Trip-Zone: Click Setup and define the trip zone using system to send the message to. blocks. (Select)/ (Unselect): Enable/disable trip zone. • Not supported from the IDIS Web program. (Single Block): Select/unselect trip zone blocks • The camera must be registered to the remote individually.

  • Page 31: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 32: System Event

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 33: Part 2 - Idis Web

    Part 2 - IDIS Web IDIS Web is a program that allows you to view video from remote locations over the Internet and can be accessed on a Internet Explorer. Microsoft System requirements for running IDIS Web are as follows: •...
  • Page 34 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • Launching a new version of IDIS Web for the first time can cause Internet Explorer to load information from the previous version. In this case, navigate to Tools → Internet Options → General, delete temporary Internet files, and then restart IDIS Web.

  • Page 35: Web Live Mode

    2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 36 Part 2 - IDIS Web Indicates the camera's number. This function is not supported. Used to adjust live video quality. This function is not supported. Event status window at the bottom of the screen displays a list of events detected at remote locales.

  • Page 37: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Event Action Email Remote Callback FTP Upload Event Motion Detection...

  • Page 38: Index

    Part 3 - Appendix Index ONVIF Protocol Admin/Watch/Recording/Search Ports Quality Bitrate Control Resolution RTSP Port Camera Name Compression Date/Time Time Sync DSCP Use FEN FEN Name Use HTTPS FEN Server User/Group Frame Rate Use UPnP IDIS Web Port IPFiltering Network Bandwidth Limit V1.2...
  • Page 40 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
