  • Page 1 DC-E Series Installation Manual DC-T4811WRX DC-T4515WRX Powered by...
  • Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result in appliance is operated.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 – Introduction ......... 6 Product Features .

  • Page 6: Part 1 - Introduction

    In addition, the embedded web server (IDIS Web) lets you remotely view live video using a web • Slow shutter support for improved low-lighting video browser. In addition, you can use the IDIS Solution Suite capture performance Compact to manage network cameras and view/record •...

  • Page 7: Accessories

    Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. RJ45 moduler jack, RJ45 waterproof rubber ring, RJ45 Network Camera connector protect cover, cable waterproof rubber ring, RJ45 connector back cover...

  • Page 8: Overview

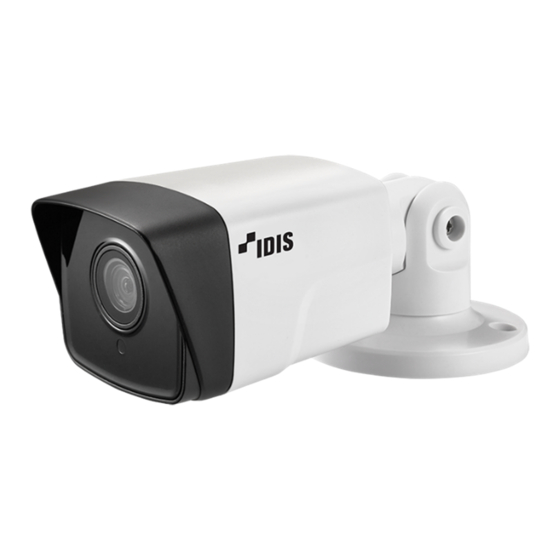

    Part 1 – Introduction Overview Product color and design may vary depending on the model. Body • Lens Fixed lens is installed. • IR LED A sensor in the bottom middle monitors lighting levels and activates the IR LED during low-lighting conditions.

  • Page 9: Cable

    For more information on network connection setup, refer to the IDIS Discovery operation manual. • Audio In Connect an audio source to this port. (line in) •...

  • Page 10: Inserting A Sd Memory Card

    Part 1 – Introduction Installation Cover the lens cover and tighten the screws clockwise. Installation of this product does not require the use of special tools. For more information on other devices comprising the overall system, refer to their respective installation manuals.

  • Page 11: Installation

    Part 1 – Introduction Insert the network cable into the waterproof cap, rubber bushing, and waterproof cap body in order. Lock the waterproof cap into the waterproof cap body. Not pulling the cable back may cause water to seep in and damage the product.
  • Page 12 Part 1 – Introduction Dimension Adjust the camera angle by bending the stand. After fully assembling the joint screws, unscrew it 2 ~ 2.5 turns again and move the cover of the joints of the left 3 places slightly. (The screws should not be 195.8mm completely released to prevent it from falling.) After adjusting the direction of the camera, turn the screw...

  • Page 13: Part 2 - Camera Connection

    Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Sensor In Power Alarm Out Network Camera Monitor Out...

  • Page 14: With Non Directip™ Nvr-Based Layout

    Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact.

  • Page 15: Part 3 - Appendix

    ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions10 or below.

  • Page 16: Specifications

    Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution DC-T4811WRX 3840 x 2160 DC-T4515WRX 3072 x 1728 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length DC-T4811WRX f=3.3mm DC-T4515WRX f=4.0mm Aperture F2.0...
  • Page 17 Part 3 - Appendix Supported DC-T4811WRX 3840x2160, 1920x1080, 1280x720, 640x360 Resolution DC-T4515WRX 3072x1728, 1920x1080, 1280x720, 640x360 Multi-Video Streaming Quadruple Ethernet RJ45(10/100BASE-T) Audio In/Out Line-in 1ea / Line-out 1ea Alarm In 1 TTL, NC/NO Programmable, 4.3V(NC) or 0.3V(NO) threshold, 5V DC Alarm Out 1 TTL open collector, Max.
  • Page 18 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
