DC-E
Series
Installation Manual
DC-E3212WRX-6.0mm
DC-E3212WRX-3.3mm
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Idis DC-E Series

Summary of Contents for Idis DC-E Series

  • Page 1 DC-E Series Installation Manual DC-E3212WRX-6.0mm DC-E3212WRX-3.3mm Powered by...
  • Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result in appliance is operated.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 – Introduction ......... 6 Product Features .

  • Page 6: Part 1 - Introduction

    In addition, the embedded web server (IDIS Web) lets you remotely view live video using a web • Slow shutter support for improved low-lighting video browser. In addition, you can use the IDIS Solution Suite capture performance Compact to manage network cameras and view/record •...

  • Page 7: Accessories

    Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Waterproof Cable (1 ea.), Protect Connector (1 ea.) Screws (3 ea.) Sun Shield Sun Shield Screw (1 ea.)

  • Page 8: Overview

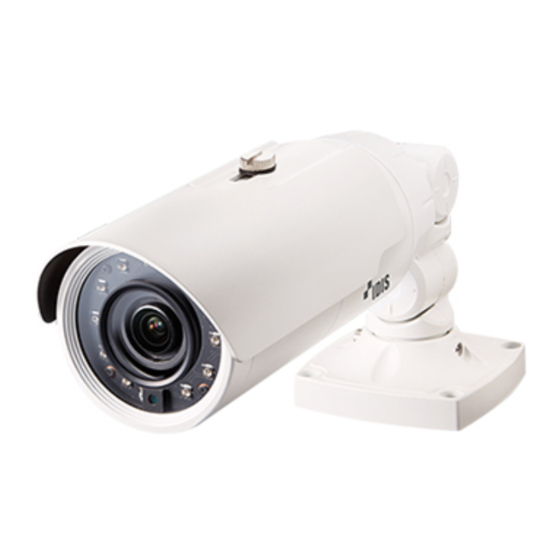

    Part 1 – Introduction Overview Product color and design may vary depending on the model. Body • IR LED A sensor in the bottom middle monitors lighting levels and activates the IR LED during low-lighting conditions. • Body The cables are connected through the body. •...

  • Page 9: Cable

    It's also possible to do a factory reset by pressing and releasing the reset switch while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more information on resetting the camera remotely, refer to the IDIS Discovery operation manual.

  • Page 10: Waterproof Cable Installation

    Part 1 – Introduction Installation Waterproof Cable Installation • Check the wall or ceiling to see if it needs to be reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight. •...

  • Page 11: Part 2 - Camera Connection

    Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Power Network Camera Monitor Out Power Network Remote Monitoring DirectIP™ NVR makes it easy to use cameras without extra network configurations.

  • Page 12: With Non Directip™ Nvr-Based Layout

    Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact.

  • Page 13: Part 3 - Appendix

    ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below.

  • Page 14: Specifications

    Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/3" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=6.0mm/f=3.3mm Aperture F1.8/F2.0 Angular Field of View 52.8º(H), 28.4º(V), 62.0º(D) (6.0mm) 100.3º(H), 53.9º(V), 118.5º(D) (3.3mm) Min.
  • Page 15 Part 3 - Appendix Network Video Compression H.265(MP), H.264(MP), M-JPEG Bitrate Control CBR / VBR Max. Frame Rate 30fps : 1920 x 1080(WDR) Supported DirectIP 1920x1080, 1280x720, 704x480, 640x360, 352x240 Resolution Non DirectIP 1920x1080, 1280x720, 704x480, 640x360, 352x240 Multi-Video DirectIP Quadruple Streaming Non DirectIP...
  • Page 16 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
