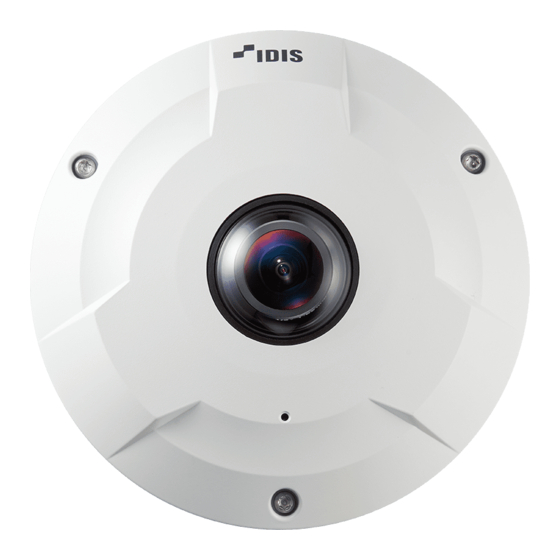

Idis DC-Y1513 Installation Manual
Hide thumbs Also See for DC-Y1513:

Advertisement

Network
Camera
Installation Manual
DC-Y1513
DC-Y1513W
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-Y1513 and is the answer not in the manual?

Questions and answers

Summary of Contents for Idis DC-Y1513

  • Page 1 Network Camera Installation Manual DC-Y1513 DC-Y1513W Powered by...
  • Page 2: Safety Symbols

    Before reading this manual This is a basic installation manual for use of an IDIS netework camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3: Safety Precautions

    Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4: Fcc Compliance Statement

    IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
  • Page 5: Table Of Contents

    Table of Contents Part 1 – Introduction ......... 6 Product Features .
  • Page 6: Part 1 - Introduction

    • Easy network access via UPnP (Universal Plug and You can use the IDIS Discovery program to change Play) function and embedded mDNS (Multicast DNS) network camera settings or the IDIS Solution Suite...
  • Page 7: Accessories

    Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera Open Source Guide Quick Guide Allen Wrench Screws (3 ea.)
  • Page 8: Overview

    Part 1 – Introduction Overview • Factory Reset Button Restores the camera's default factory settings. For more information, refer to the Factory Reset on page Product color and design may vary depending on the model. • Safety Wire Prevents the top cover from falling on to the floor when detached from the camera.
  • Page 9: I/O Device Port

    For more information on network connection setup, alarm in port and the GND (ground) connector. refer to the IDIS Discovery operation manual. Alarm in range is 0V to 5V. In order to detect alarm input from an electrical switch, the signal must be •...
  • Page 10: Factory Reset

    IDIS Discovery program from a remote devices at locations other than as originally location. A factory reset will reboot the system. For intended, or use such devices to record audio.)
  • Page 11: Installation

    It prevents the • Do not touch the surface of the lens. You must be top cover from falling on to the floor when extra careful when installing the DC-Y1513 model detached from the camera. because its lens protrudes.
  • Page 12 If you install the camera on a wall, check the detached from the camera. direction of the camera body to prevent image from being turned upside down. • After securing the body, remove the peel off DC-Y1513 model film from the lens. ( only) It should be placed downward.
  • Page 13: Dimensions

    Secure the top cover to the body by turning the Camera - DC-Y1513W Model screws clockwise with the Allen wrench. After securing the top cover, remove the peel off film from the dome port. ( DC-Y1513W model only) Ø155mm(6.1") Ø155mm(6.1") Camera - DC-Y1513 Model Ø155mm(6.1") Ø155mm(6.1") Insulator...
  • Page 14: Part 2 - Camera Connection

    Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out...
  • Page 15: With Non Directip™ Nvr-Based Layout

    Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact.
  • Page 16: Part 3 - Appendix

    ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below.
  • Page 17: Specifications

    Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/1.8" CMOS Max. Resolution 2560 x 2048 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=1.45mm Aperture F2.2 Iris Control Fixed Iris Angular Field of View H: 180°...
  • Page 18 Max. 7.4 W Approval FCC, CE External DC-Y1513W 155 mm x 48.3 mm (6.10" x 1.90" ) Dimensions (Ø x H) DC-Y1513 155 mm x 43 mm (6.10" x 1.69" ) Weight DC-Y1513W 0.59 kg (1.31 lb) (Main Unit) DC-Y1513 0.58 kg (1.28 lb)
  • Page 20 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
