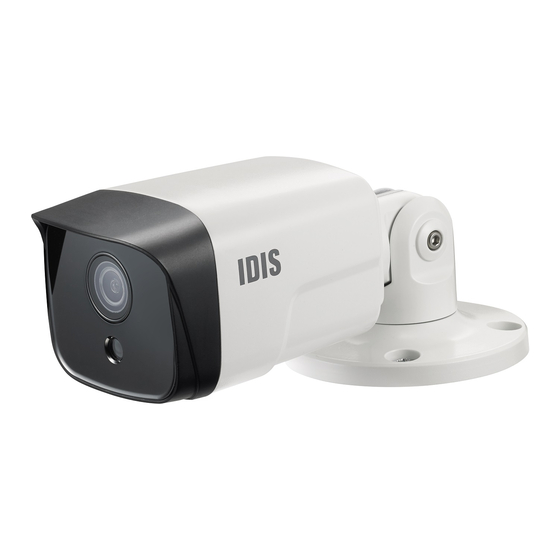

- Page 1 DC-E Series Installation Manual DC-E4513WRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result in appliance is operated.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Web) lets you remotely view live video using a web browser. In addition, you can use the IDIS Solution Suite • Slow shutter support for improved low-lighting video Compact to manage network cameras and view/record capture performance video. -
Page 7: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. RJ45 moduler jack, RJ45 waterproof rubber ring, RJ45 Network Camera connector protect cover, cable waterproof rubber ring, RJ45 connector back cover... -
Page 8: Overview
Part 1 – Introduction Overview Product color and design may vary depending on the model. Body • Lens Fixed lens is installed. • IR LED A sensor in the bottom middle monitors lighting levels and activates the IR LED during low-lighting conditions. -
Page 9: Cable
For more information on network connection setup, refer to the IDIS Discovery operation manual. • Audio In Connect an audio source to this port. (line in) •... -
Page 10: Inserting A Sd Memory Card
Part 1 – Introduction Inserting a SD Memory Card Make sure that the cover is joined properly when screwing it; otherwise, the IP67 level is not guaranteed. Loosen the screws counterclockwise and remove the cover. Waterproof Cable Installation RJ45 waterproof rubber ring RJ45 modular jack RJ45 waterproof rubber ring RJ45 modular jack... -
Page 11: Installation
Part 1 – Introduction Not pulling the cable back may cause water to seep in and damage the product. Installation • Check the wall or ceiling to see if it needs to be reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight. -
Page 12: Dimensions
Part 1 – Introduction Connect external devices, network and power f=4.0mm, 6.0mm adapter. 197mm Apply power. Dimensions f=2.8mm 195.8mm 17mm 85.8mm 80mm 31.2mm 75mm 17mm 85.8mm 80mm 30mm... -
Page 13: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Sensor In Power Alarm Out Network Camera Monitor Out... -
Page 14: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 15: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions10 or below. -
Page 16: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution 2592 x 1944 Scanning Mode Progressive Scan Lens type Fixed-focal Focal Length f=2.8mm / f=4.0mm / f=6.0mm Aperture F2.0 / F2.15 / F1.6 Angular Field of View 130°(D) 104.8°... - Page 17 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bitrate Control CBR / VBR Max. Frame Rate 30ips: 2592x1944 Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law Supported Resolution 2592x1944, 1920x1440, 1280x960, 640x480 2592x1456, 1920x1080, 1280x720, 640x360 Multi-Video Streaming Quadruple Ethernet RJ45(10/100BASE-T)
- Page 18 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
