Summary of Contents for Idis DC-E4213WRX

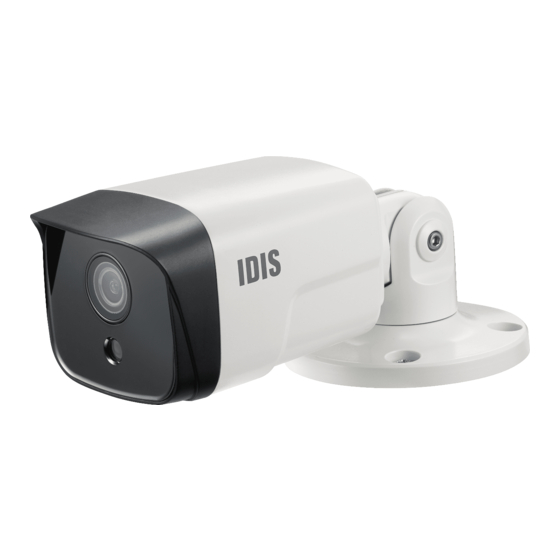

- Page 1 Network Camera Quick Guide DC-E4213WRX Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading All the safety and operating instructions should be read before the Do not overload wall outlets and extension cords as this can result appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. - Page 4 Allen Wrench Bushings (4ea.) Quick Guide Please download software (IDIS Discovery, IDIS Center, IDIS Solution Suite Compact) and product manual from this link : https://www.idisglobal.com/support/csdownload - IDIS Website (www.idisglobal.com) > Support > Technical Resources - Search IDIS Discovery, IDIS Center, IDIS Solution Suite Compact.
-
Page 5: Camera Installation
Cable Push the SD memory card until it disengages from the slot, and then pull it out. micro SD Logo is a trademark of SD-3C, LLC. Close the cover and tighten the screws clockwise. Network Port Audio In/Out Alarm In/Out Camera Installation Make sure that the cover is joined properly Inserting a SD Memory Card... -
Page 6: Waterproof Cable Installation
Waterproof Cable Installation RJ45 waterproof rubber ring RJ45 modular jack RJ45 waterproof rubber ring RJ45 modular jack RJ45 waterproof rubber ring RJ45 modular jack RJ45 connector protect cover cable waterproof rubber ring (The waterproof rubber ring is fastened to the connector protect cover.) RJ45 connector protect cover Connect the plug terminal to the RJ45 jack. -
Page 7: Installation
Installation Screw the mounting bracket to the wall or ceiling by using screws(4) and bushings(4) provided with the camera. Adjust the camera angle by bending the stand. After fully assembling the joint screws, unscrew it 2 ~ 2.5 turns again and move the cover of the joints of the left 3 places slightly. -
Page 8: Specifications
Specifications Vandal Resistance Out-door Ready IP67, IK10 External Dimensions (Ø x H) 90mm X 195.8mm (3.54” x 7.7”) (f=2.8mm) 90mm X 197mm (3.54” x 7.75”) (f=4.0mm, 6.0mm) Weight (Main Unit) 0.66 kg (1.44lb) Working Temperature -20°C ~ +55°C (-4°F ~ +131°F) (Starting temperature: 32°F to 131°F (0°C to 55°C)) Operating Humidity 0% ~ 90%... - Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
