Master Dimmer
Silent-Mode
Slave Mode
Control via IR remote
control

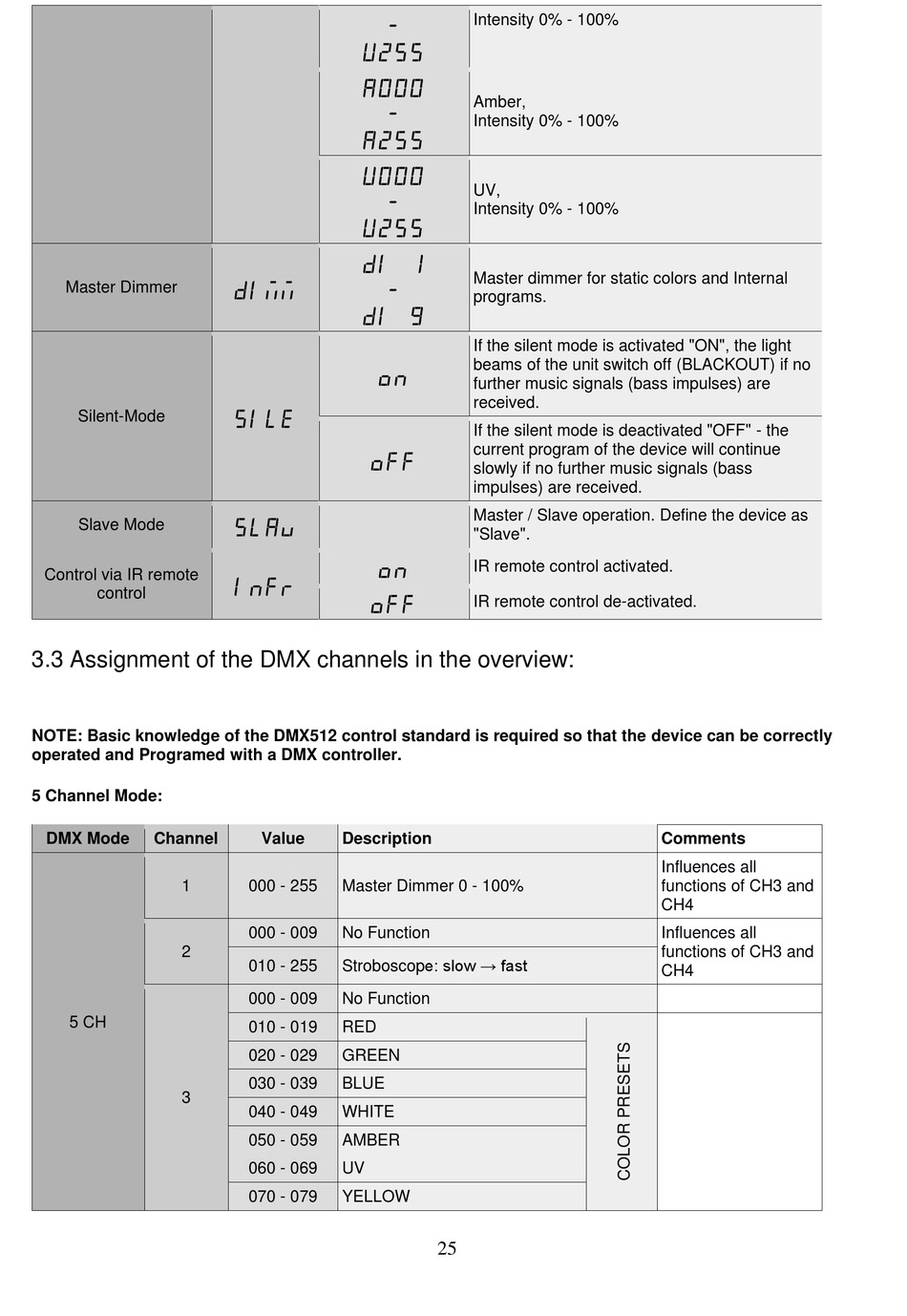

3.3 Assignment of the DMX channels in the overview:

NOTE: Basic knowledge of the DMX512 control standard is required so that the device can be correctly
operated and Programed with a DMX controller.
5 Channel Mode:
DMX Mode Channel
1
2
5 CH
3
-
U255
A000
-
A255
U000
-
U255
dI 1
dIMM -
dI 9
on
SILE
oFF
SLAV
on
InFr
oFF
Value Description
000 - 255 Master Dimmer 0 - 100%
000 - 009 No Function
Stroboscope: slow → fast
010 - 255
000 - 009 No Function
010 - 019 RED
020 - 029 GREEN
030 - 039 BLUE
040 - 049 WHITE
050 - 059 AMBER
060 - 069 UV
070 - 079 YELLOW
Intensity 0% - 100%
Amber,
Intensity 0% - 100%
UV,
Intensity 0% - 100%
Master dimmer for static colors and Internal
programs.
If the silent mode is activated "ON", the light
beams of the unit switch off (BLACKOUT) if no
further music signals (bass impulses) are
received.
If the silent mode is deactivated "OFF" - the
current program of the device will continue
slowly if no further music signals (bass
impulses) are received.
Master / Slave operation. Define the device as
"Slave".
IR remote control activated.
IR remote control de-activated.
25
Comments
Influences all
functions of CH3 and
CH4
Influences all
functions of CH3 and
CH4
