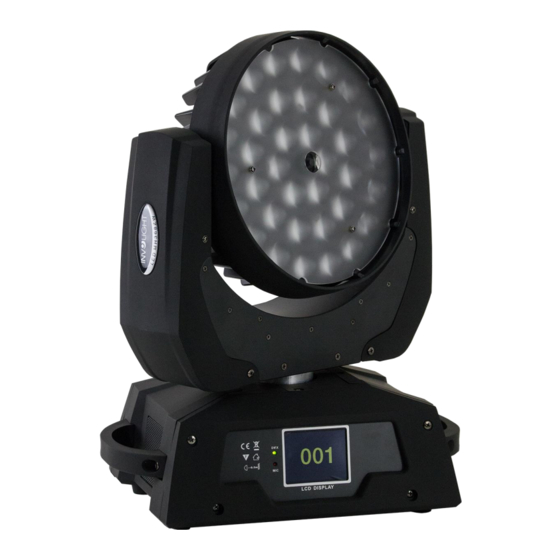

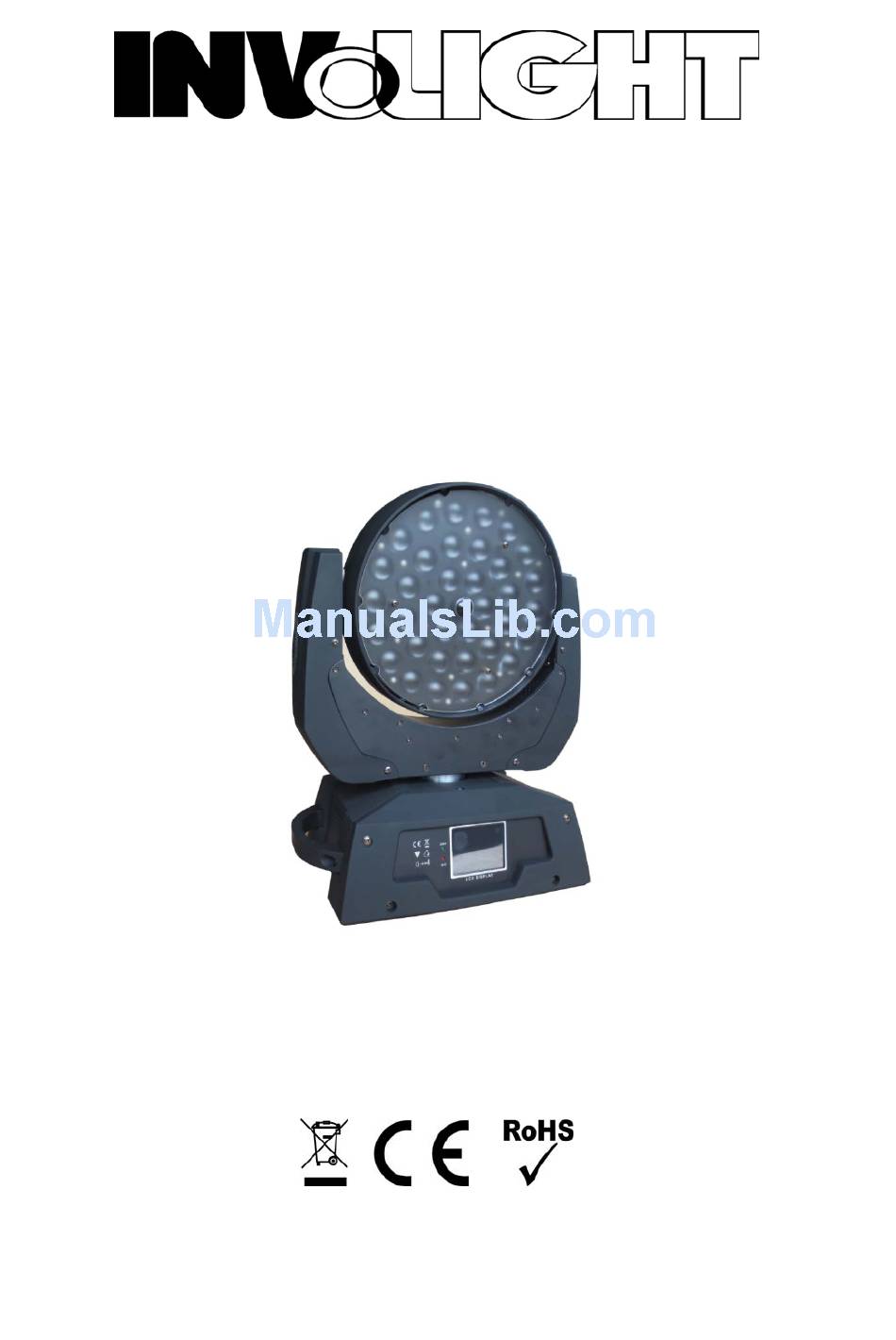

- Page 1 Bedienungsanleitung User manual LED MH368ZW www.destilan-deutschland.de...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ……………………………………………….…………………………..2 SAFETY INSTRUCTIONS…………………………………………………………………2 OPERATING DETERMINATIONS…………………………………………….…………..3 DESCRIPTION OF THE DEVICE…………………………………………………………4 INSTALLATION………………………………………………………………….…………..5 OPERATION……………………………………………………………………….………...6 Stand alone operation…………………………………………………………….…………6 Master slave operation…………………………………………………………….……..…6 DMX controlled operation………………………………………………………….…….…6 Addressing…………………………………………………………………………….…..…6 Control board………………………………………………………………………….…..…6 DMX protocol………………………………………………………………………….…..…7 TECHNICAL SPECIFICATIONS…………………………………………………….……7... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Installation
Features > 14 channel DMX-512 . > Pan :630°/tilt:270°. > 36pcs 8W RGBW QUAD LED > Zoom angle from 18 degree to 55 degree > Variable electronic strobe. > Variable electronic dimmer(0-100%). > LED display menu with invert. > Reset to factory settings option. >... -
Page 5: Operation
The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation The master/slave-operation enables that several devices can be synchronized and controlled by one master-device... -
Page 6: Dmx Protocol
WHITE: White dimming 0-255 (default 30) ENGLISH/CHINESE LANGUAGE SET UP ID CODE:select ID code PAN REVERSE:ON/OFF TILT REVERSE:ON/OFF FADER DELAY:ON/OFF SIGNAL LINK:ON/OFF CODE WHEEL:ON/OFF TEMPSWITCH SET:ON/OFF TEMPERATURE SET:70degree SCREEN SAVER:MODE1(Show dmx address after 10 seconds) MODE2(Screen off after 10 seconds) OFF() DISPLAY REVERSE:ON/OFF FACTORY SET:ON/OFF... - Page 7 0-255 0-100% White Zoom 0-255 From 18 degree to 55 degree zoom Strobe No function 1-255 Strobe with increasing speed Build in Color Running this channel need channel 14 at 91-210 No function 1-20 R255 G↑ B0 W0 21-40 R↓ G255 B0 W0 41-60 R0 G255 B↑...
-
Page 8: Technical Specifications
TECHNICIAL SPECIFICATIONS Model LED MH368ZW Voltage 110V- 250V / 50-60Hz Power consumption: 380W 36x8pcs RGBW QUAD Gross Weight 9.5Kgs Dimensions 420(H) x 300(W) x400(L) mm www.destilan-deutschland.de...
